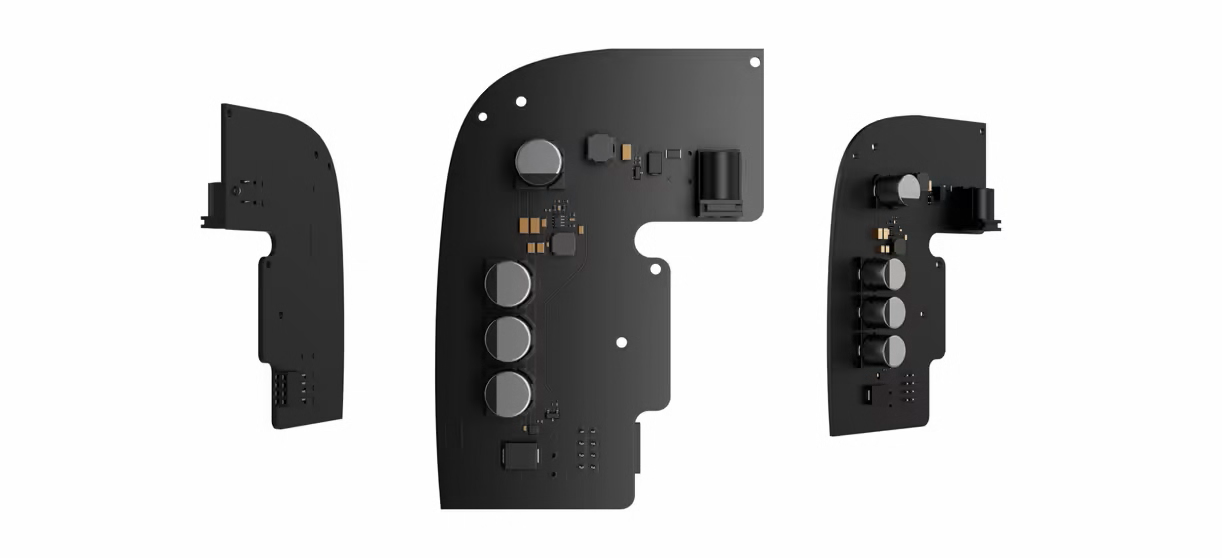

Ajax 12-24V PSU for Hub 2/Hub 2 Plus/ReX 2

10059359

Compatibility

Hubs

Radio signal range extenders

Input

Voltage

8–32 V⎓

Current

up to 1 А

Turn-on voltage

8 V⎓ ± 2.5%

Turn-off voltage

7—7.5 V⎓
Depends on the load

Output

Voltage

4.8 V⎓ ± 5%

Current

up to 1.5 A

Installation

Installation method

into the hub or range extender enclosure by replacing the bundled power supply board

Operating temperature range

from -10°C to +40°C

Operating humidity

up to 75%

Connection to the power supply network

Connector slot

6.5 × 2 mm
Power jack (female)

Connector

5.5 × 2.1 mm
Power jack (male)

Board

Colour

N/A

Dimensions

98 × 70 × 17 mm

Weight

26 g

12-24V PSU for Hub 2/Hub 2 Plus/ReX 2

Power supply unit for the device operation from a low-voltage power source

Brand Ajax
