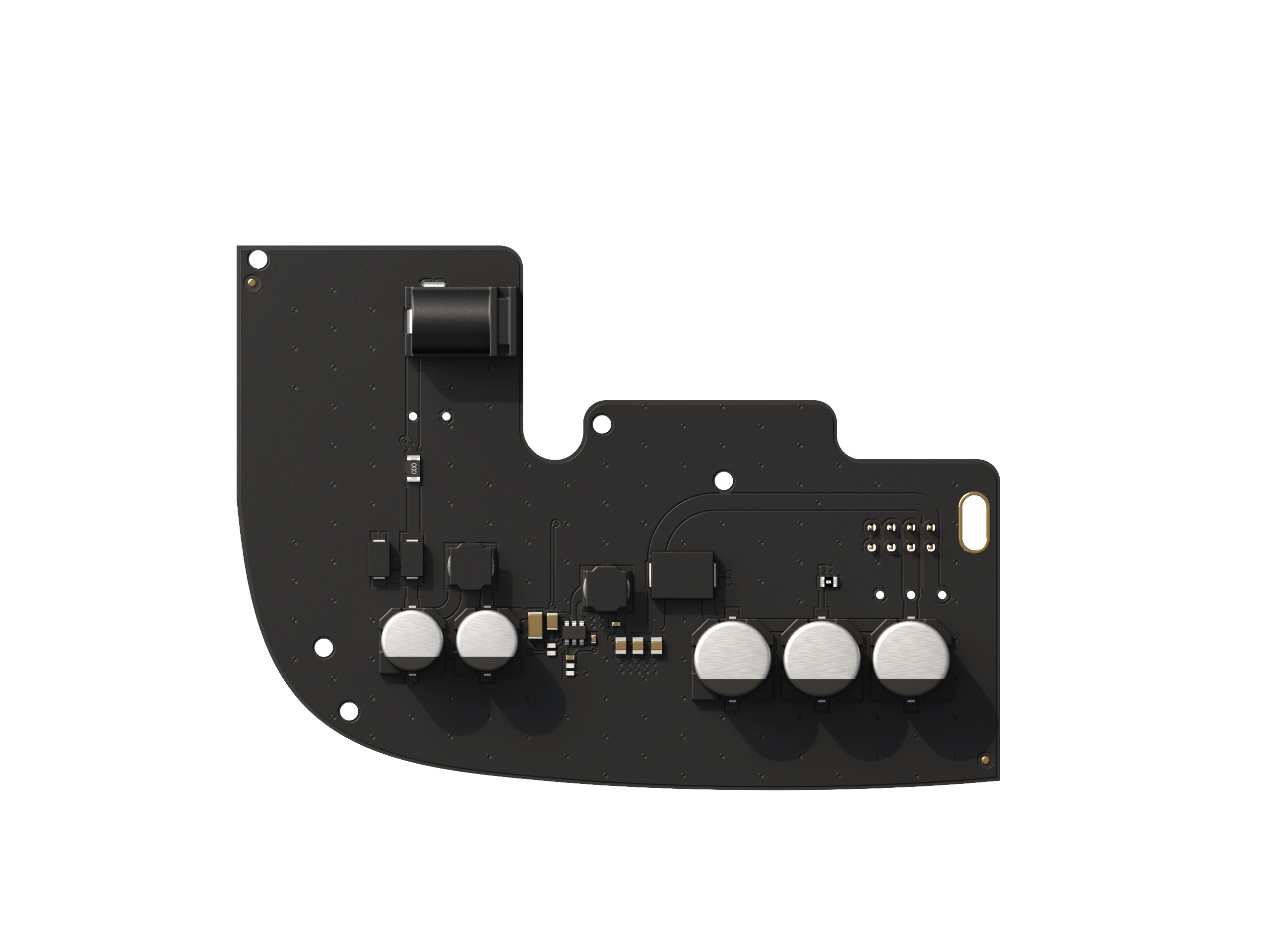

Ajax 12V PSU for Hub 2

A power supply unit, connecting Hub 2 control panels to low-voltage power sources
Use Ajax in premises lacking electricity or having an unstable power supply
A 12 V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery
The power supply unit is compatible with Hub 2 control panels
It features a standard socket for connecting the power jack plug and has a bundled terminal adapter
12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit

Tech specs

Compatibility - Hub 2 control panels

Input voltage - 8-20 V DC

Output voltage - 4.65 V ± 3%

Switch-on voltage - 8 V ± 2.5%

Switch-off voltage - 6.9-7.5 V (depending on load)

Input current - <1 А

Output current - 1,5 А

Connection:
Socket: 6,5 × 2 mm
Plug: 5,5 × 2,1 mm (power jack)

Dimensions - 138 × 64 × 13 mm

Weight - 30 g

Complete set:
12V PSU for Hub 2 control panels
Terminal adapter
Quick guide

Service life - 10 years
