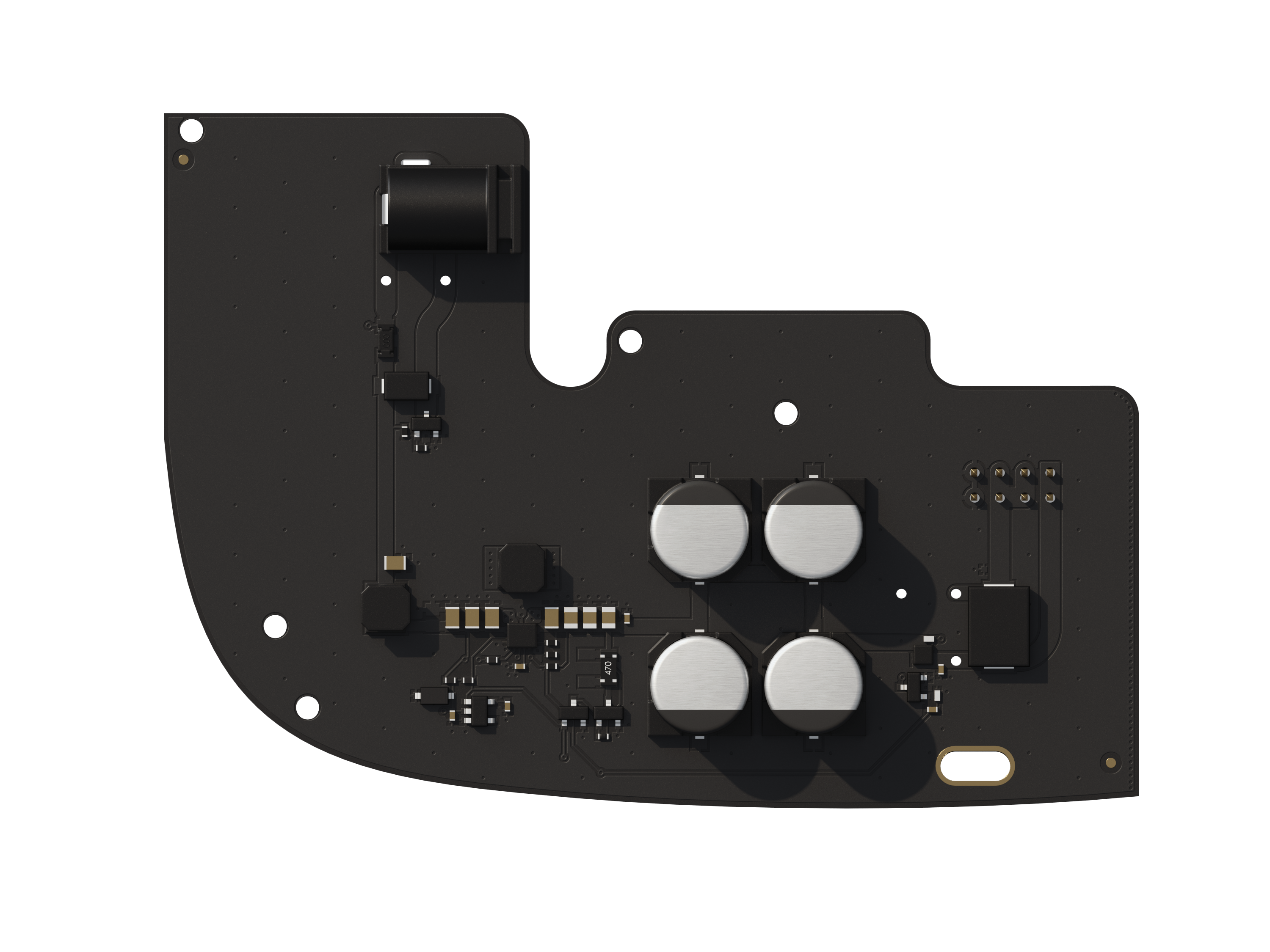

Ajax 6V PSU for Hub 2 / Hub 2 Plus

Power supply unit for connecting Hub 2 / Hub 2 Plus control panels to a low-voltage power source
Protecting facilities lacking electricity
With an alternative 6 V power supply unit, your hub can operate from an external battery for years
without being connected to the facility's power grid and is ready to protect buildings
in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorized occupation
6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit

Tech specs
Compatibility - Hub 2 and Hub 2 Plus

Recommended batteries
Zinc air and alkaline batteries with 4.2-16 V operating power

Input voltage - 4.2-16 V

Output voltage - 4.8 V ± 5%

Switch-on voltage - 4.2 V ± 2.5%

Switch-off voltage - 3-3.4 V (depending on the load)

Maximum input current - 2.2 A at 4.2 V; 0.5 A at 16 V

Maximum output current - 1.5 A

Plug socket - 6.5 x 2 mm

Plug - 5.5 x 2.1 mm

Operating temperatures range - From -10°С to +40°С

Operating humidity - Up to 75%

Dimensions - 98 × 70 × 17 mm

Weight - 26 g

Complete set
6V PSU for Hub 2/Hub 2 Plus
Terminal adapter
Quick Start Guide

Warranty - Warranty service for 24 months from the date of sale

Service life
10 years
