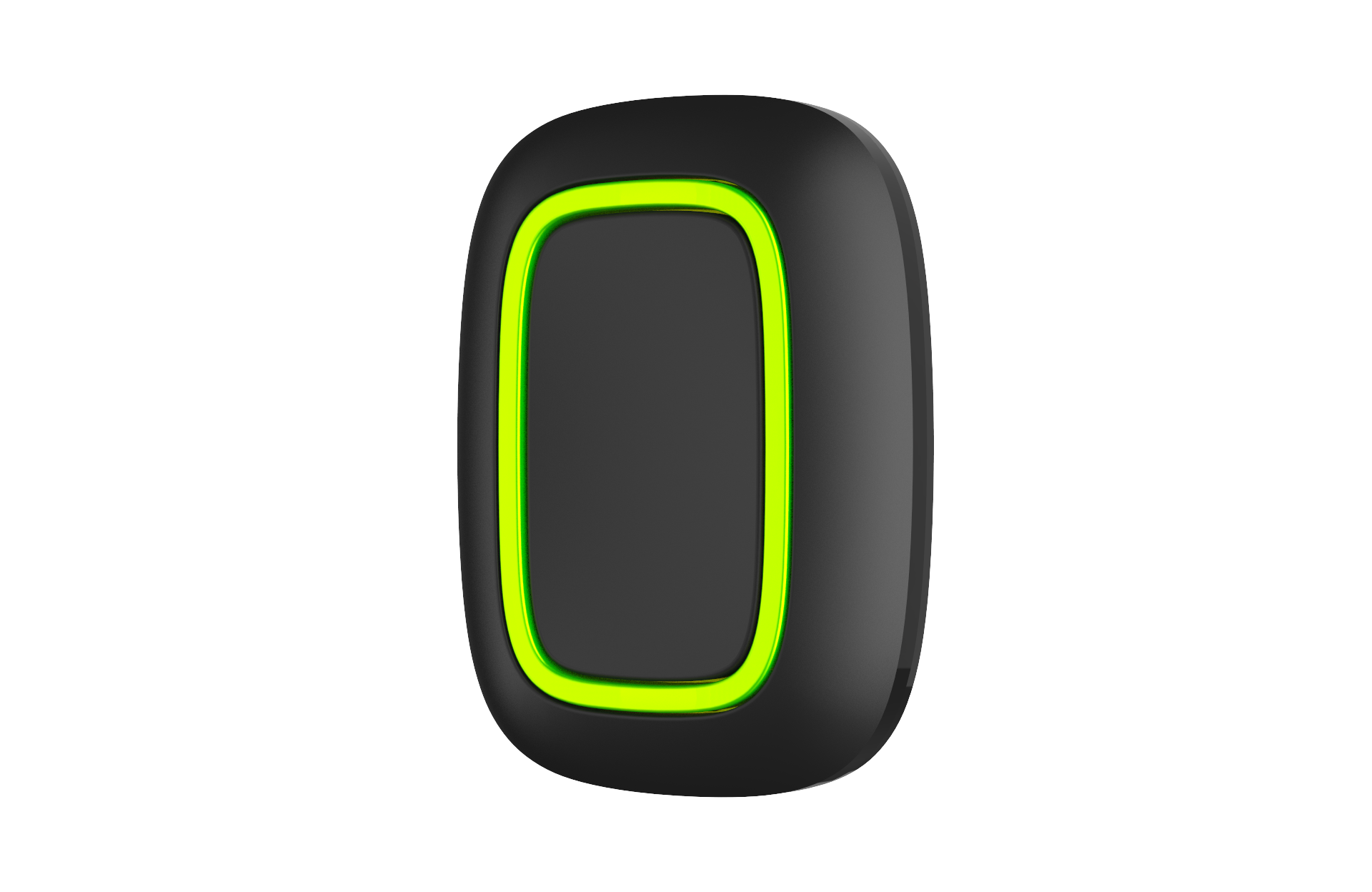

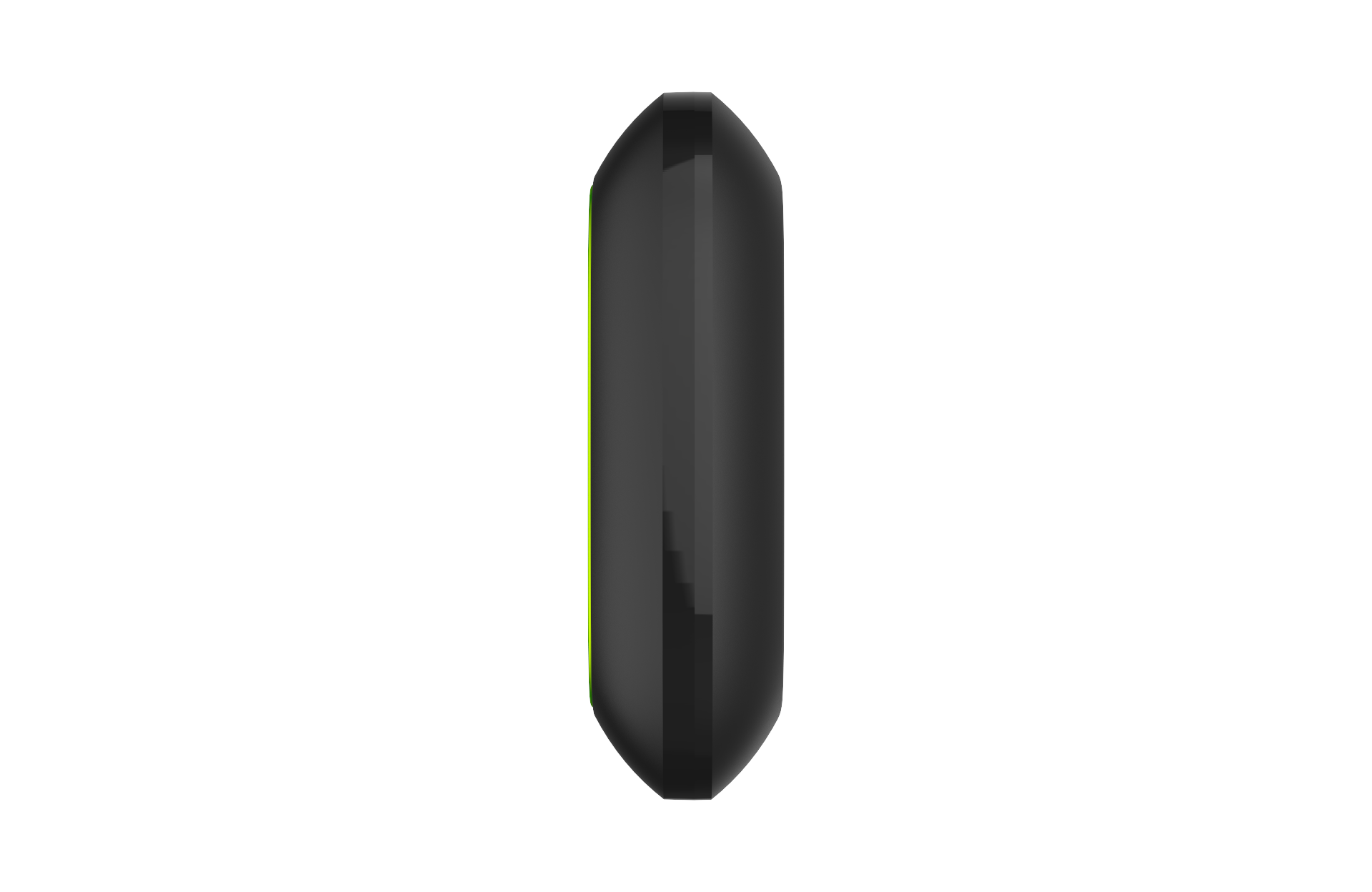

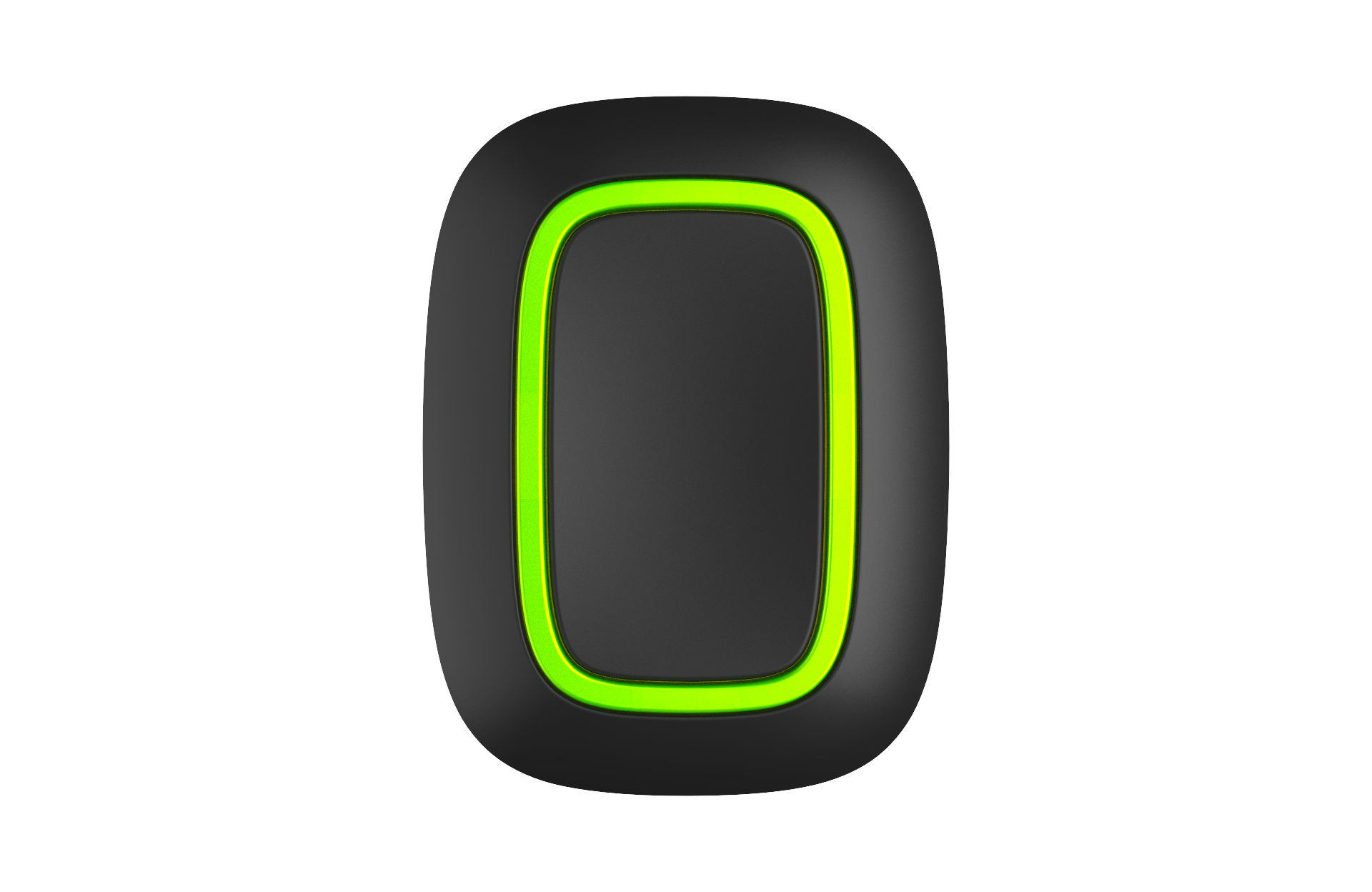

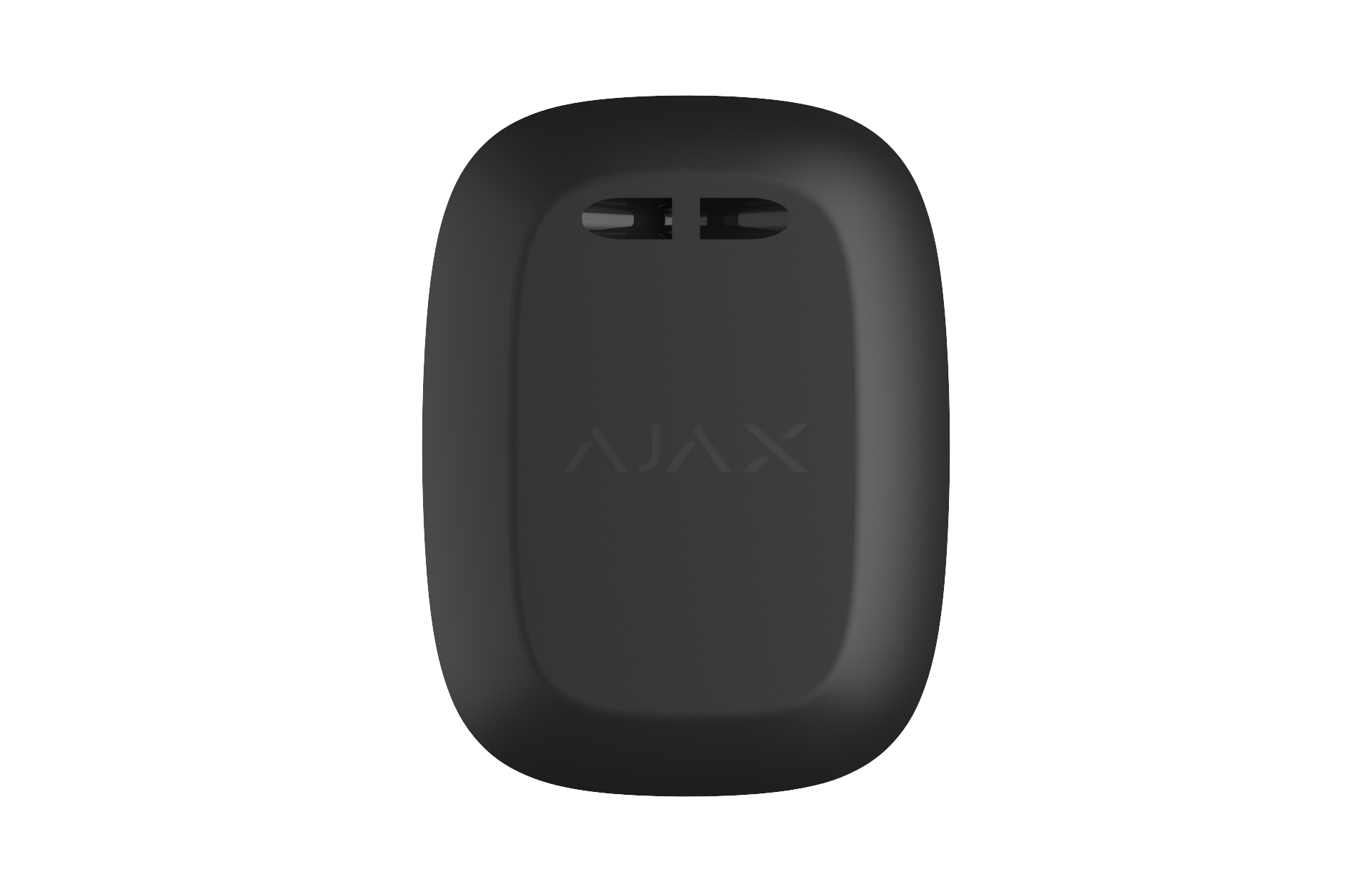

Ajax Button black

10010314
Ajax Tryckknapp 1-knapp (Svart)
Guarantees alarm delivery
Ajax panic button communicates with a hub using Jeweller radio protocol on a distance of up to 1300 m. Once it delivers an alarm, you’ll see a green blink
Jeweller encrypts all of the transmitted data. In case of signal interference or radio jamming, Ajax system switches the radio frequency and notifies you as well as the security company about the situation.

- Signal range up to 1300 m
- Command delivery confirmation
- Encryption with a modified AES algorithm
- Frequency hopping

 Two modes: panic/control button
 Protected from accidental activation
  Protected from dust and splashes
Tech specs
Classification - Addressed Radio Panic Button

Compatibility - Operates with all Ajax hubs, and range extenders

False alarm prevention -Yes (in the Panic mode)

Number of buttons - 1

Alarm transmission - Not longer than 0,15 sec

Active from the first click (no need to wake it up)

Adjustable alarm types - Intrusion,Fire,Medical help,Panic button,Gas leak

Jeweller radio technology - Communication range with a hub — up to 1300 m in an open area:
Two-way communication channel
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Frequency hopping

Power supply - Battery: CR2032 battery, 3 V

Battery life - Up to 5 years

Operating temperature range - From -10°C to +40°C

Permissible humidity - Up to 75%

Protection class - IP55

Size - 47 × 35 × 13 mm

Weight - 16 g

Warranty - Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty


Complete set:
Panic button
Pre-installed CR2032 battery
Double sided tape
Quick Start Guide

Service life - 10 years
Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Manöverpaneler
Color Svart
