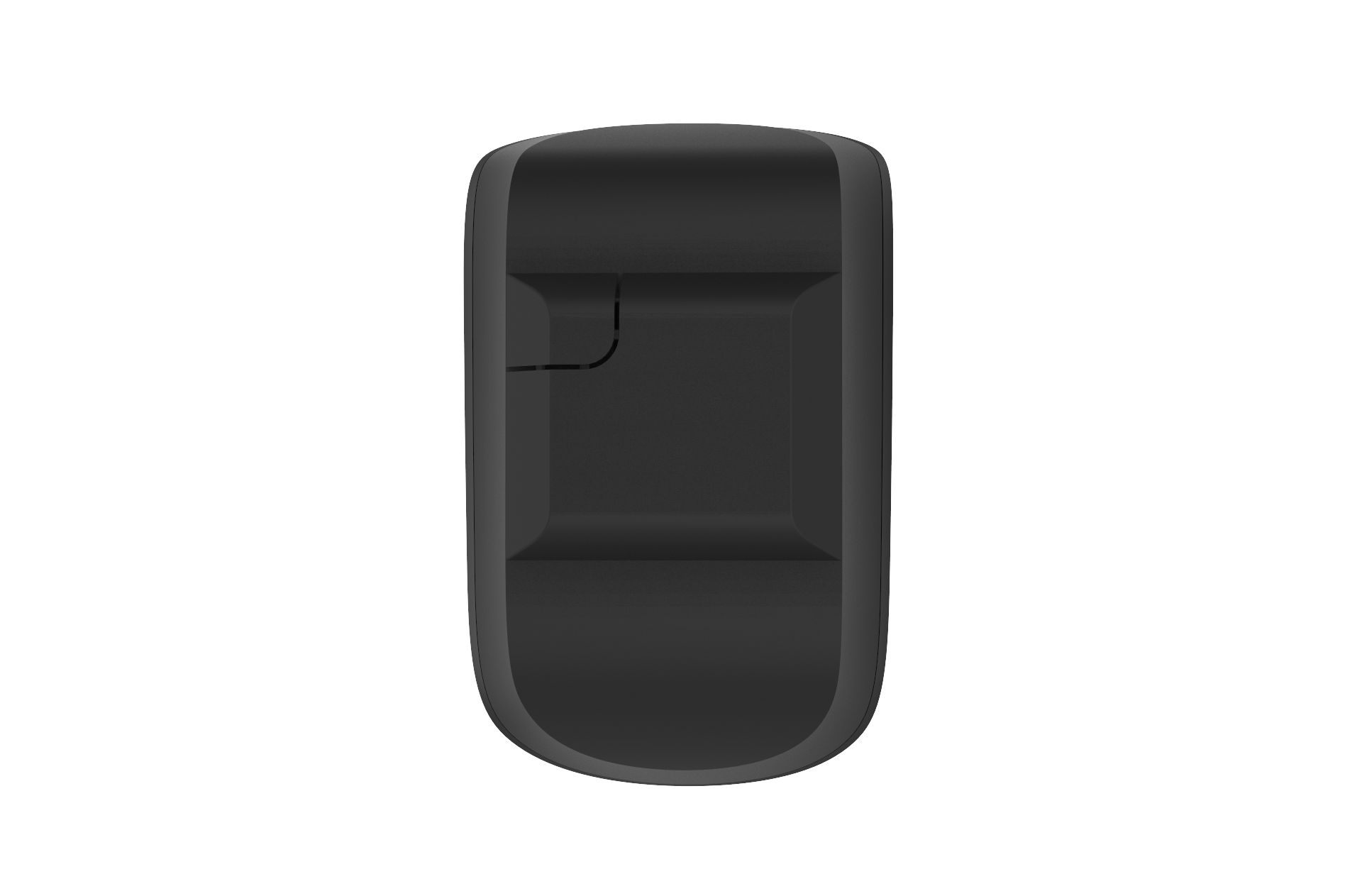

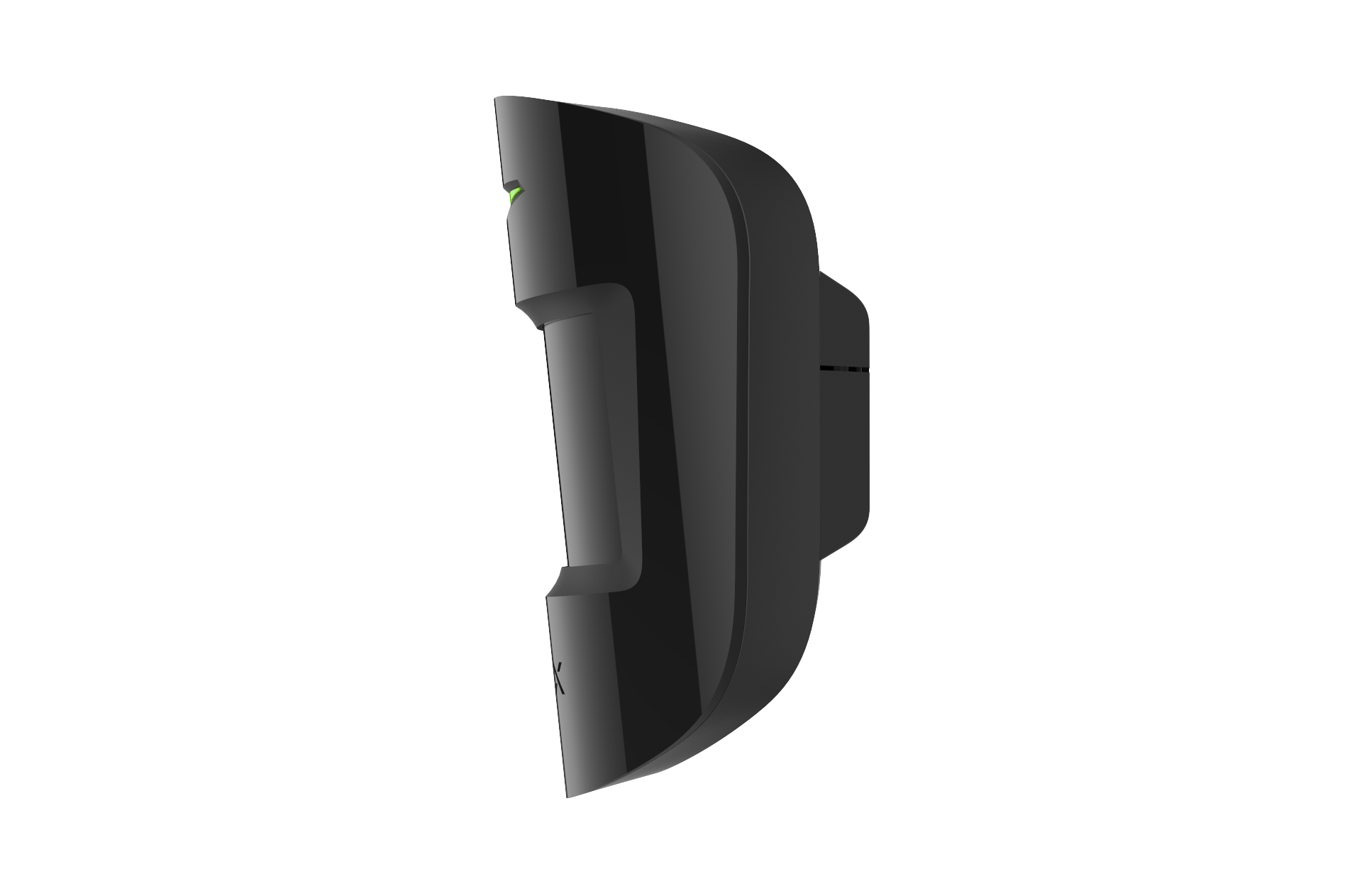

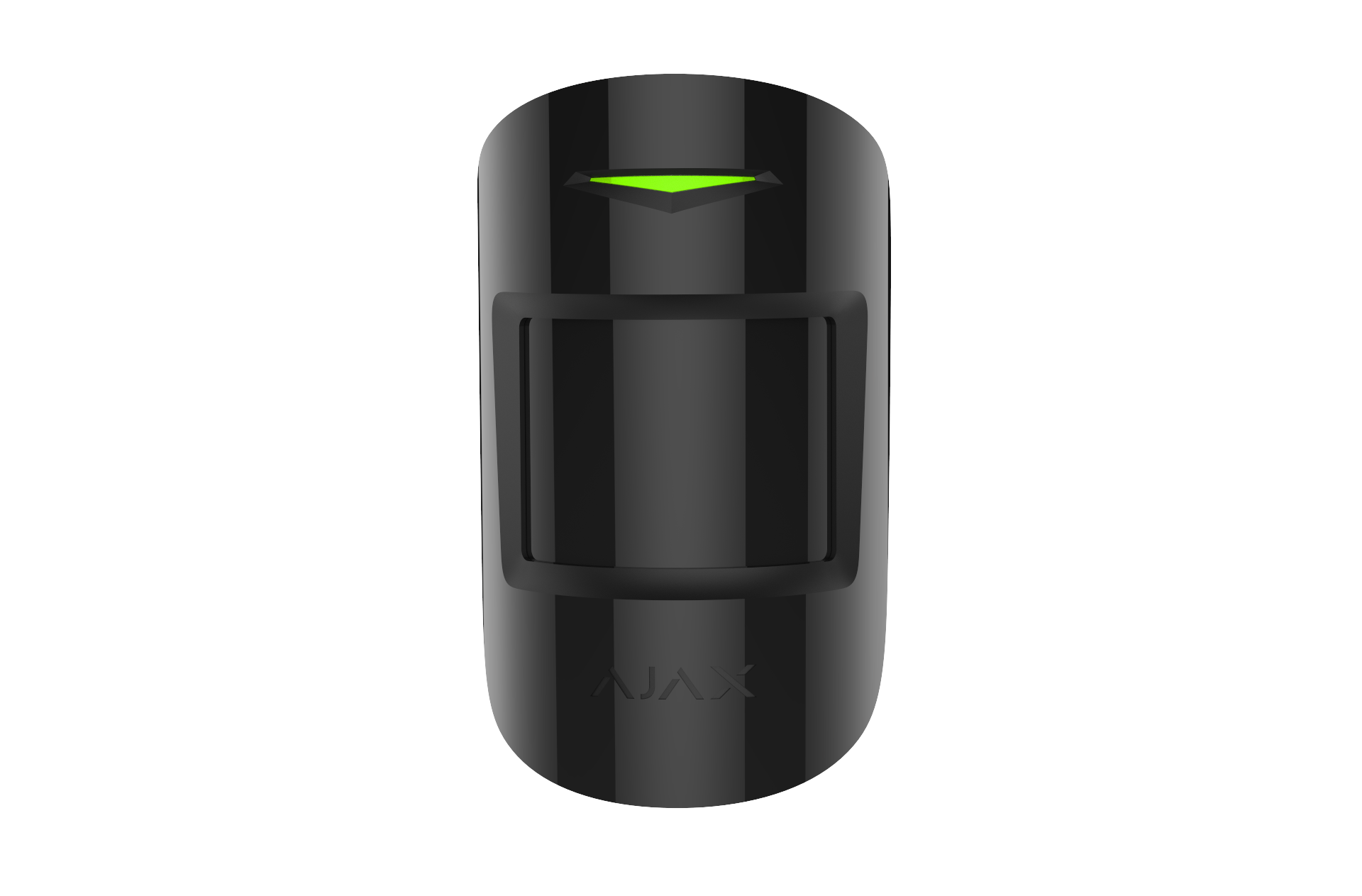

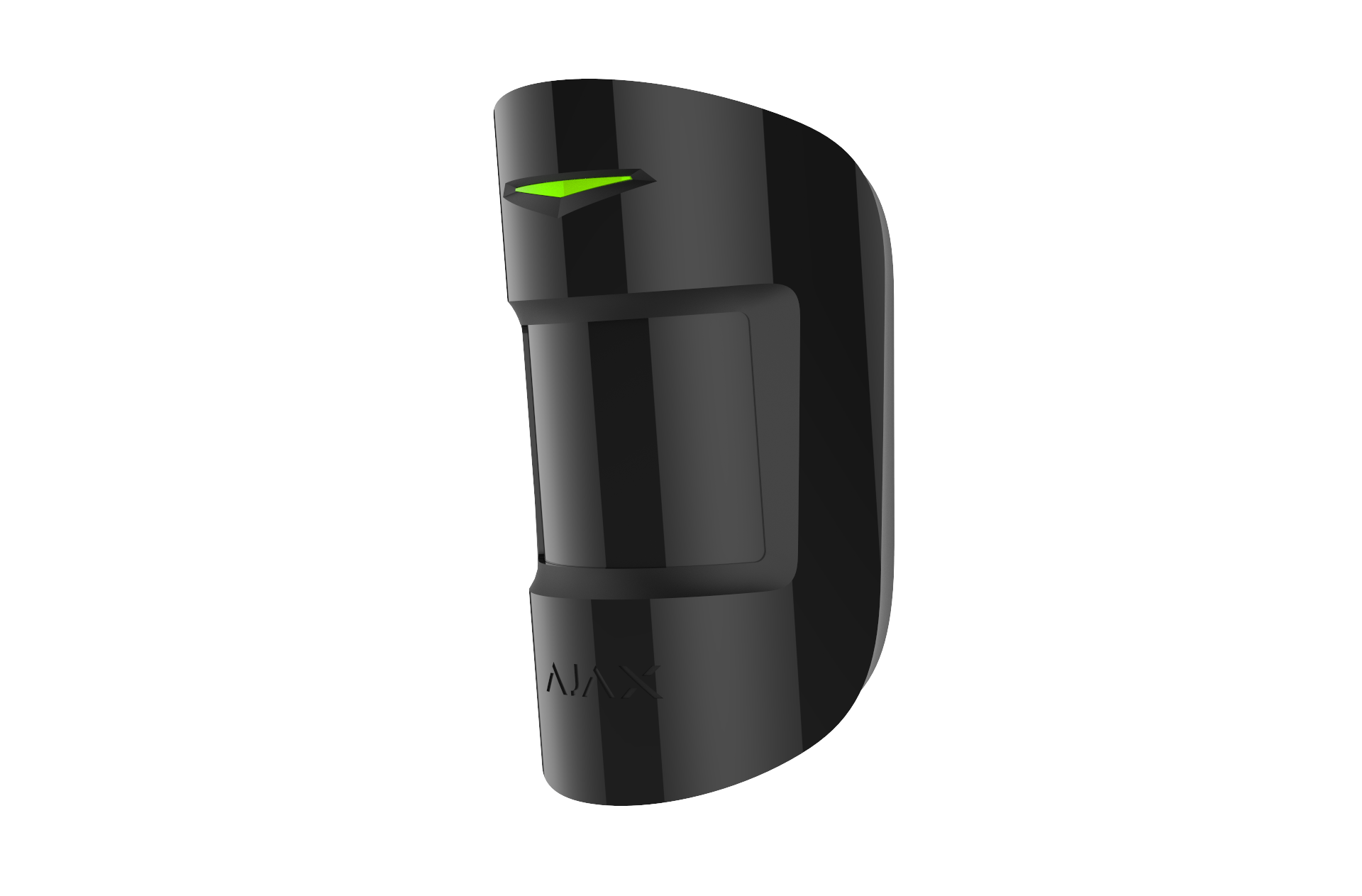

Ajax CombiProtect black

1007167
AX Kombinationsdetektor - IR/GK (Svart)

Wireless combined motion and glass break detector
The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass

The device combines the functions of two detectors — motion detector and glass break detector
It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window

The device detects motion even in hot climates by means of temperature compensation
It filters false alarms caused by thunder, dogs barking or the sound of passing trucks

 Authentication to prevent forgery
 Jamming detection and communication channels encryption
 Tampering alarm

Tech specs
Classification - Electro-optical combined radio channel security detector

Type of detector - Wireless

Installation method - Indoors

Compatibility
Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge

Sensing element - PIR sensor, electret microphone

Alarm signal delivery time - 0.15 s

Motion detection distance - Up to 12 m

Detection angles
Horizontal — 88.5°
Vertical — 80°

Time for motion detection - From 0.3 to 2 m/s

Recommended installation height - 2.4 m

Pet immunity
Weight — up to 20 kg
Height — up to 50 cm

Break detection distance - Up to 9 m

Detection angle -180°

Sensitivity - Adjustable, 3 levels

Power supply
Battery: CR123A battery, 3 V
Battery life
Up to 5 years


Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s


Temperature sensor - Available

Operating temperature range - From -10°С to +40°С

Permissible humidity - Up to 75%

Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing - Available

Dimensions - 110 × 65 × 50 mm

Weight - 92 g

Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set
CombiProtect combined motion and glass break detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User's guide

Service life - 10 years

Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Rörelsedetektorer
Color Svart
