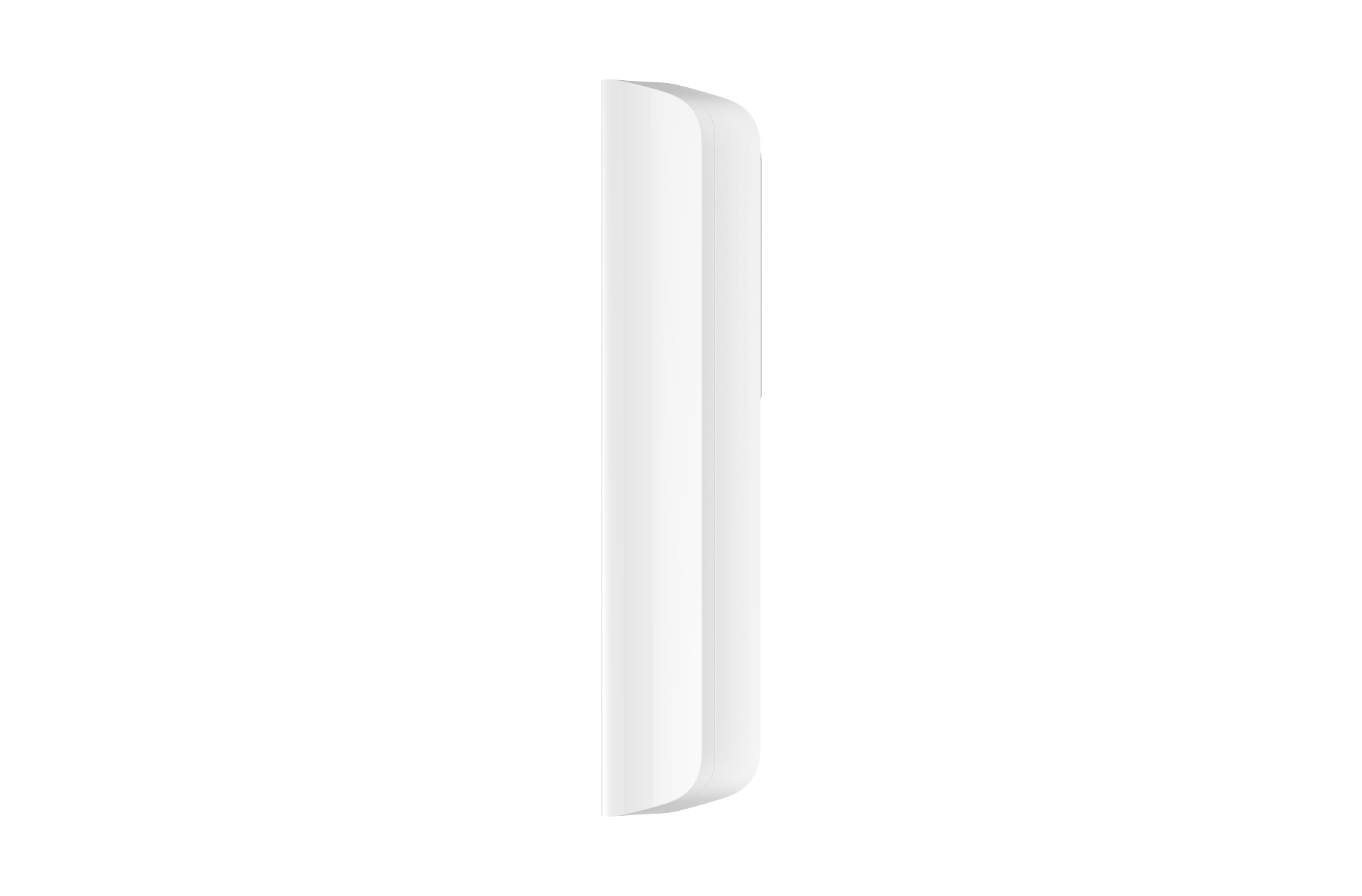

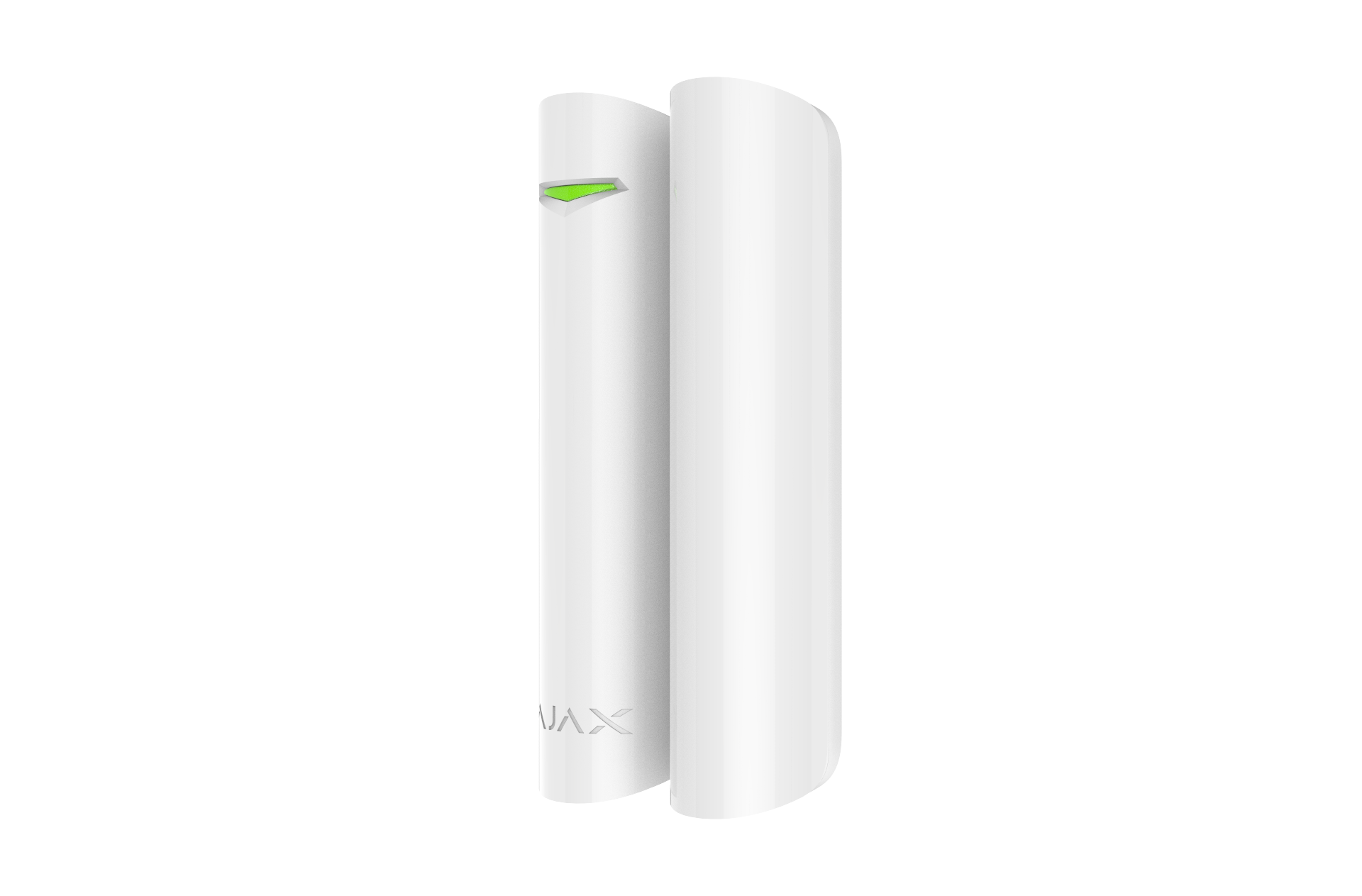

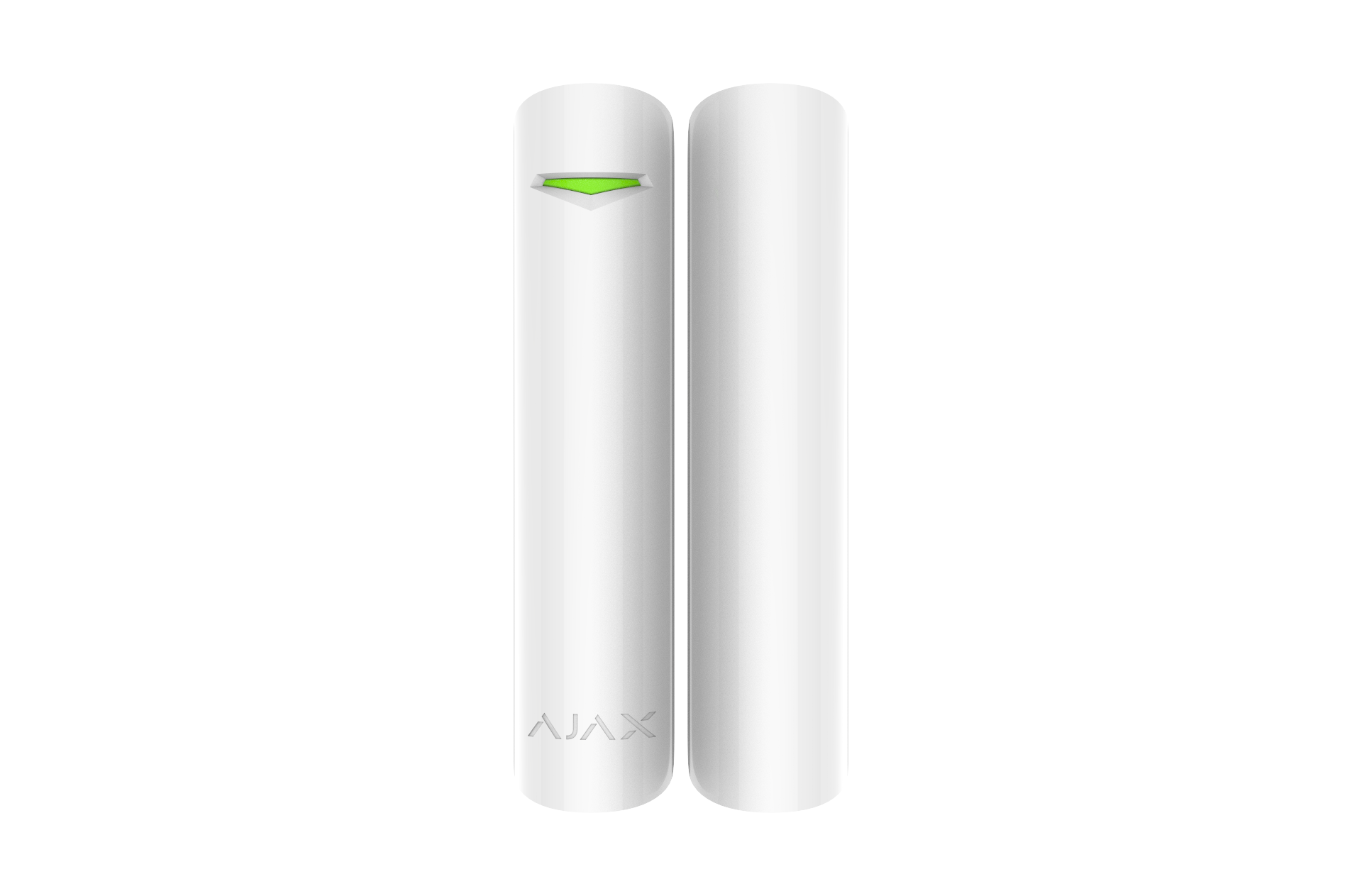

Ajax DoorProtect white

1007063
AX Magnetkontakt (Vit)

Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window
It can be mounted on all types of doors including a metal base

The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts
It can operate in the transmitter mode, sending a signal from the wired sensor to the hub

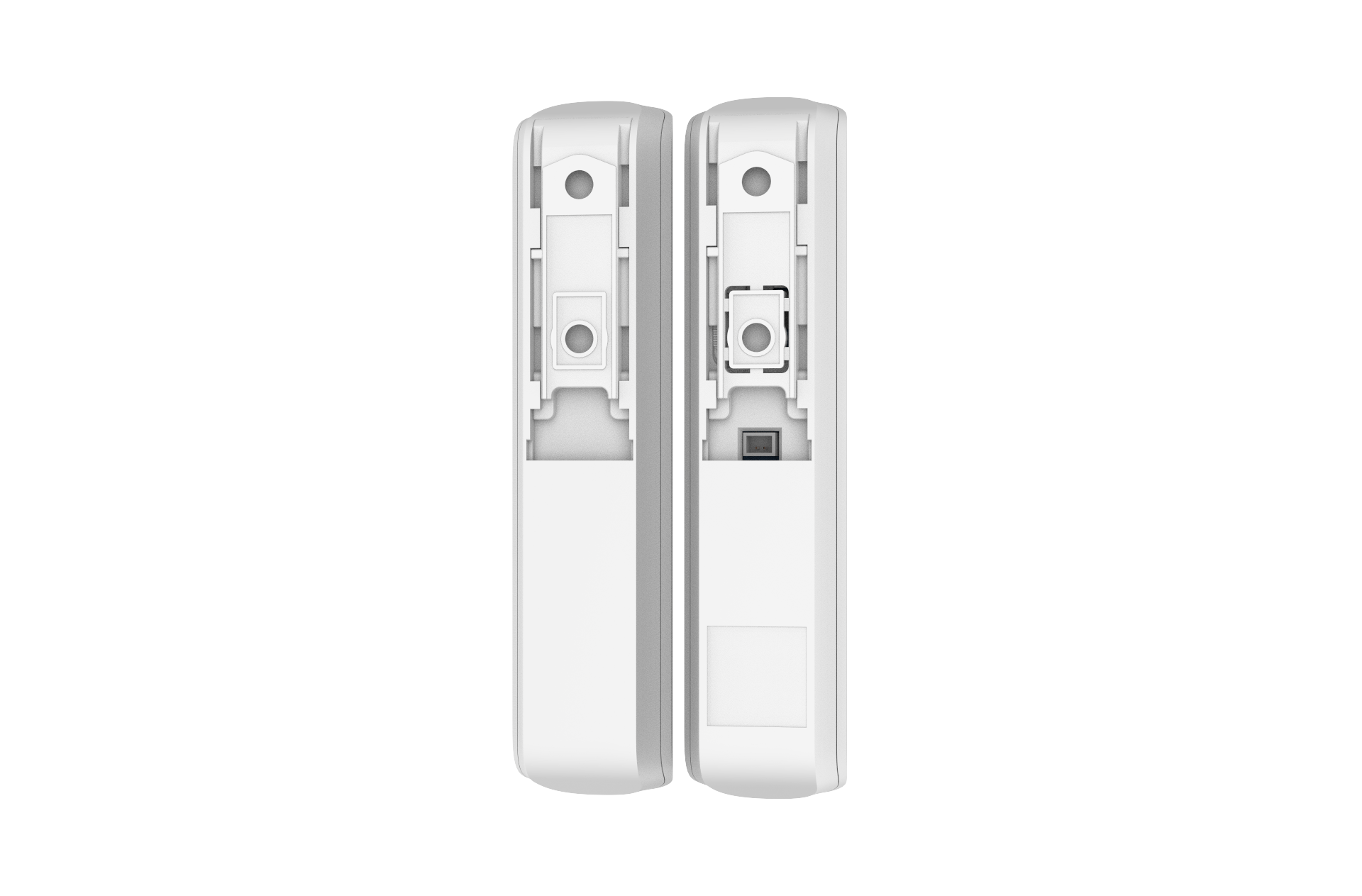

The device consists of two modules — detector and magnet. The set includes two magnets the big magnet is installed
at a distance of up to 2 cm, and the small magnet up to 1 cm

 Operates up to 7 years without battery replacement

 External contact is available for connecting third-party detectors

 Includes magnets of various sizes for installation on narrow frames and door frames

Tech specs
Classification - Point magnetic and contact radio channel security detector

Type of detector - Wireless

Installation method - Indoors

Compatibility
Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge

Sensing element - Reed switch

Alarm signal delivery time - 0.15 s

Activation threshold
Small magnet — 1 cm
Big magnet — 2 cm

Power supply
Battery: CR123A battery, 3 V
Battery life
Up to 7 years


Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s


Temperature sensor - Available

Operating temperature range - From -10°С to +40°С

Permissible humidity - Up to 75%

Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing - Available

Dimensions
Diameter: 20 mm
Height: 90 mm

Weight - 29 g

Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set
DoorProtect opening detector
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User's guide

Service life - 10 years

Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Magnetkontakter
Color Vit
