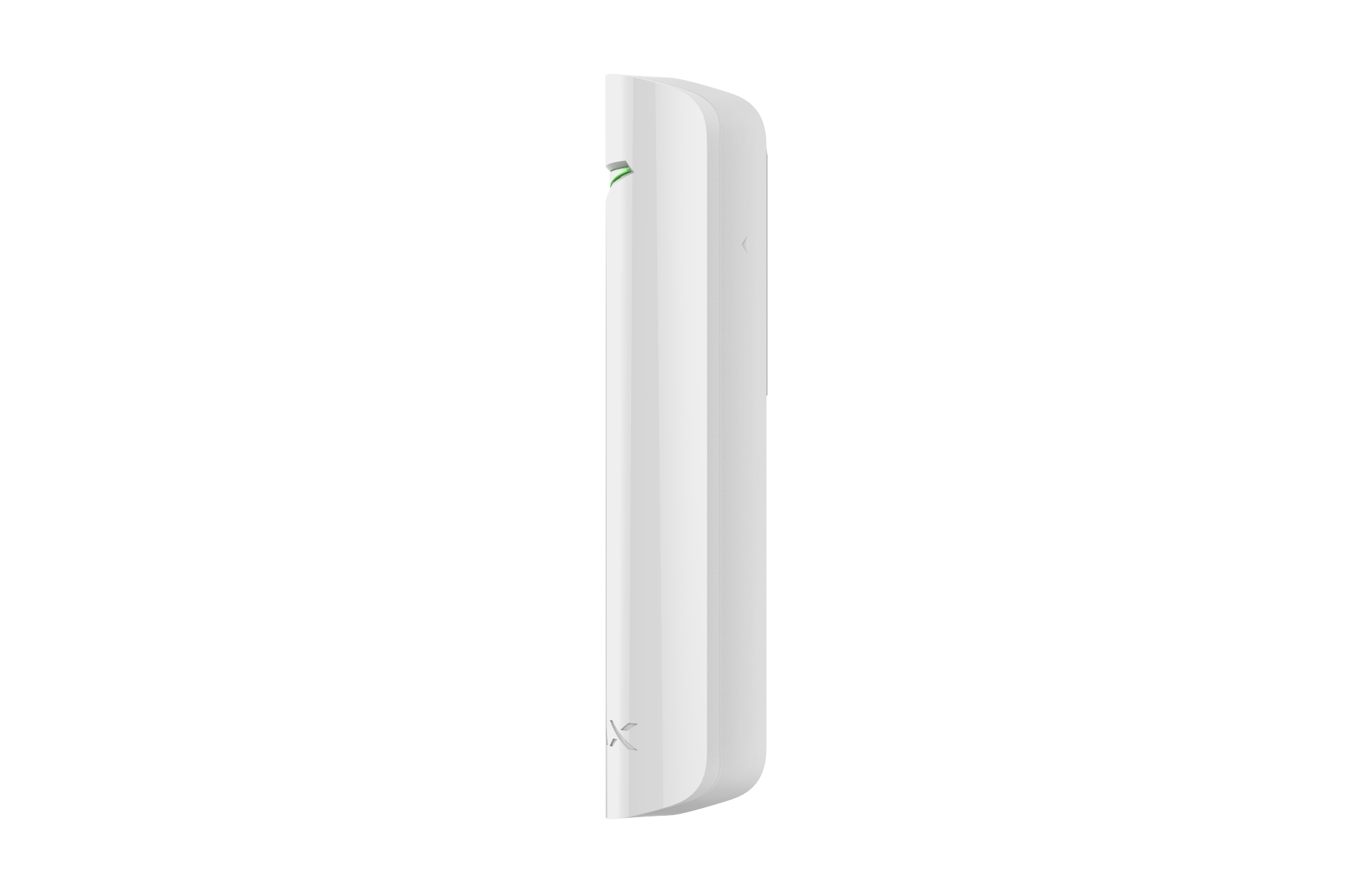

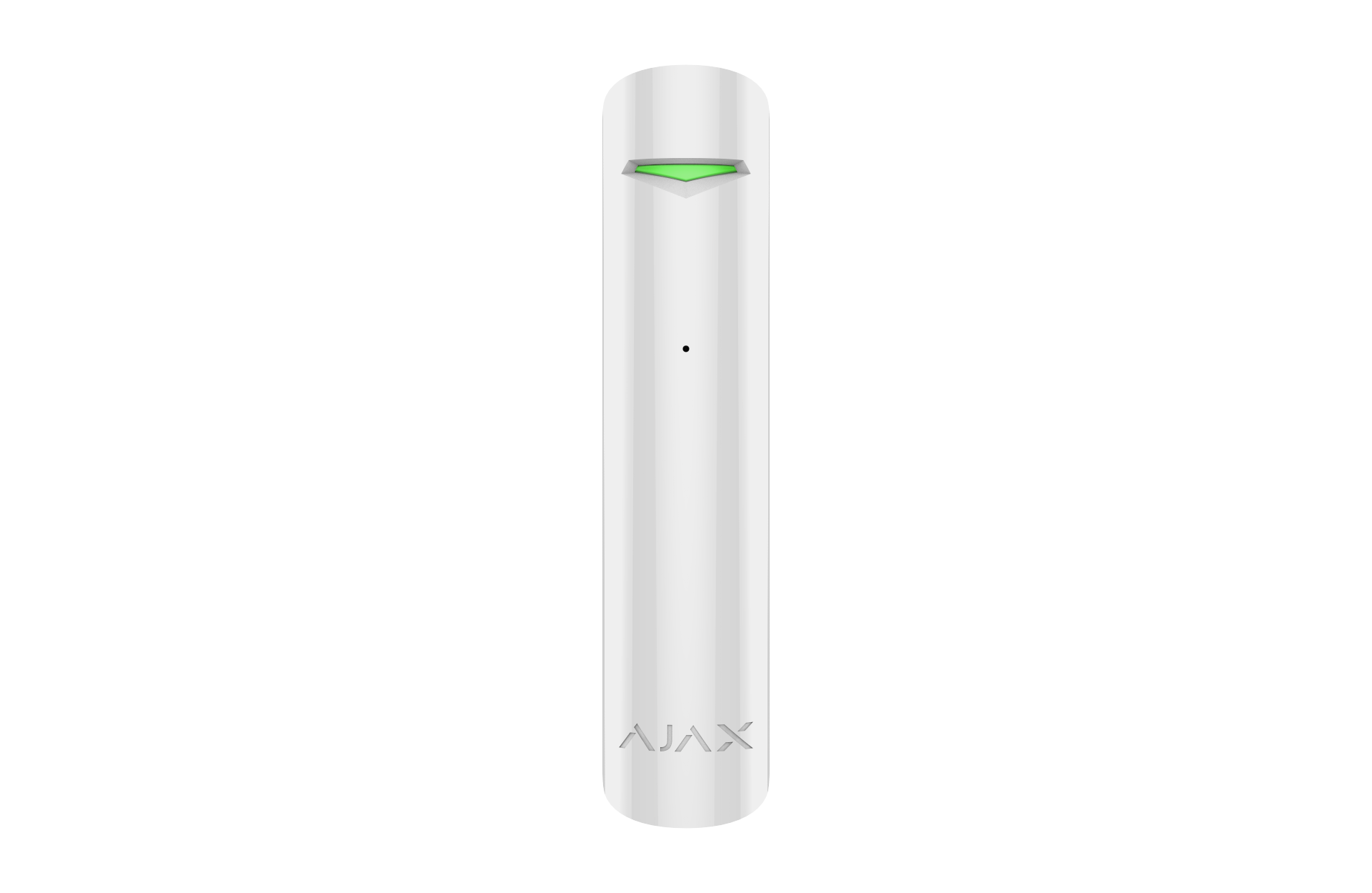

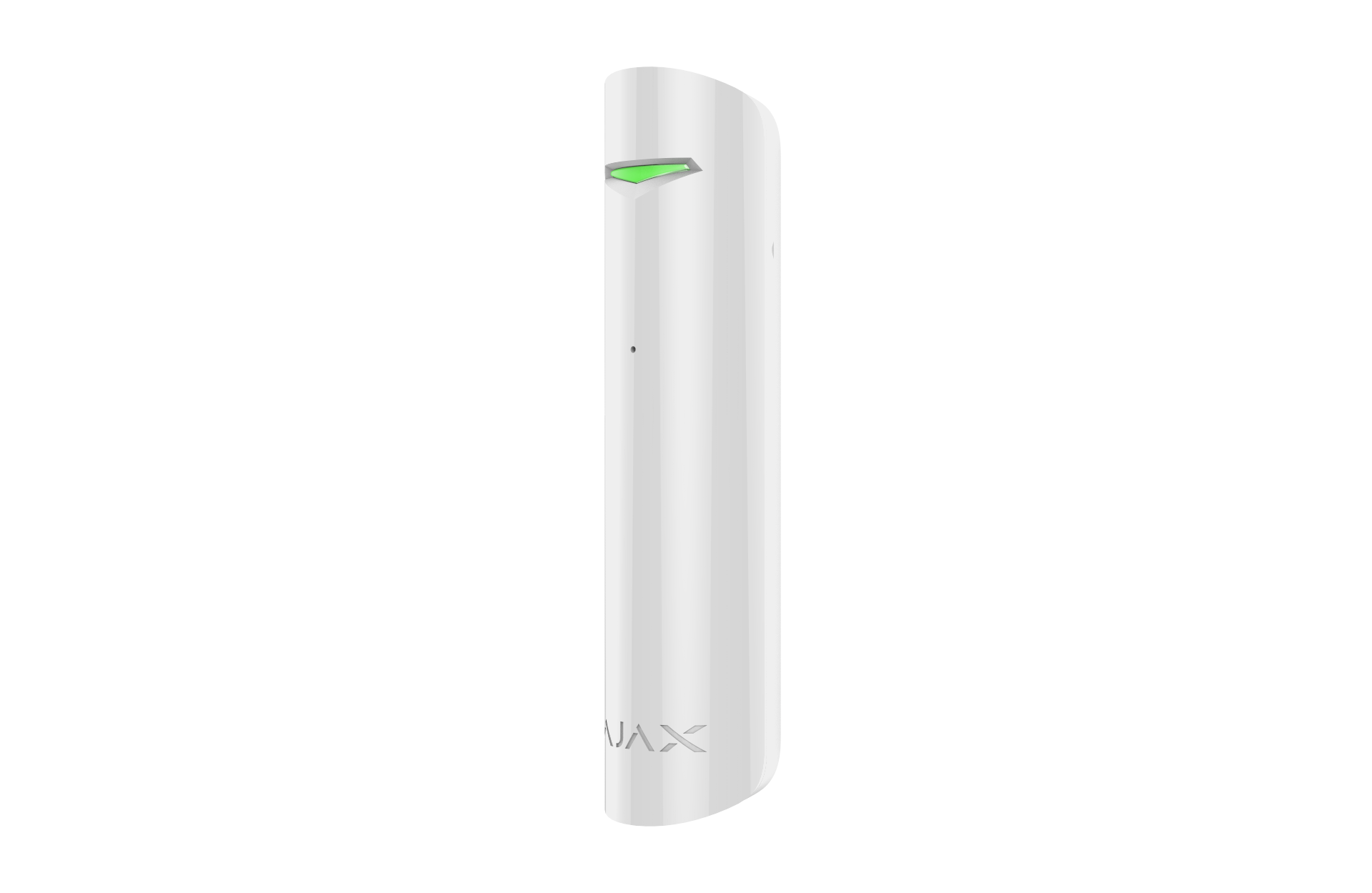

Ajax GlassProtect white

A miniature wireless detector recognizing glass breaking from up to 9 meters
If intruders break a window, the system immediately notifies users and a security company
At the same time, a passing cars and barking dogs do not cause false alarms
Detects broken glass using an electret microphone, which registers the sound of impact against the glass and of the glass falling
Two-factor detection of broken glass prevents false alarms caused by thunder, dogs barking and noise from passing trucks
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector
With one click, it can be connected to the hub in the mobile application

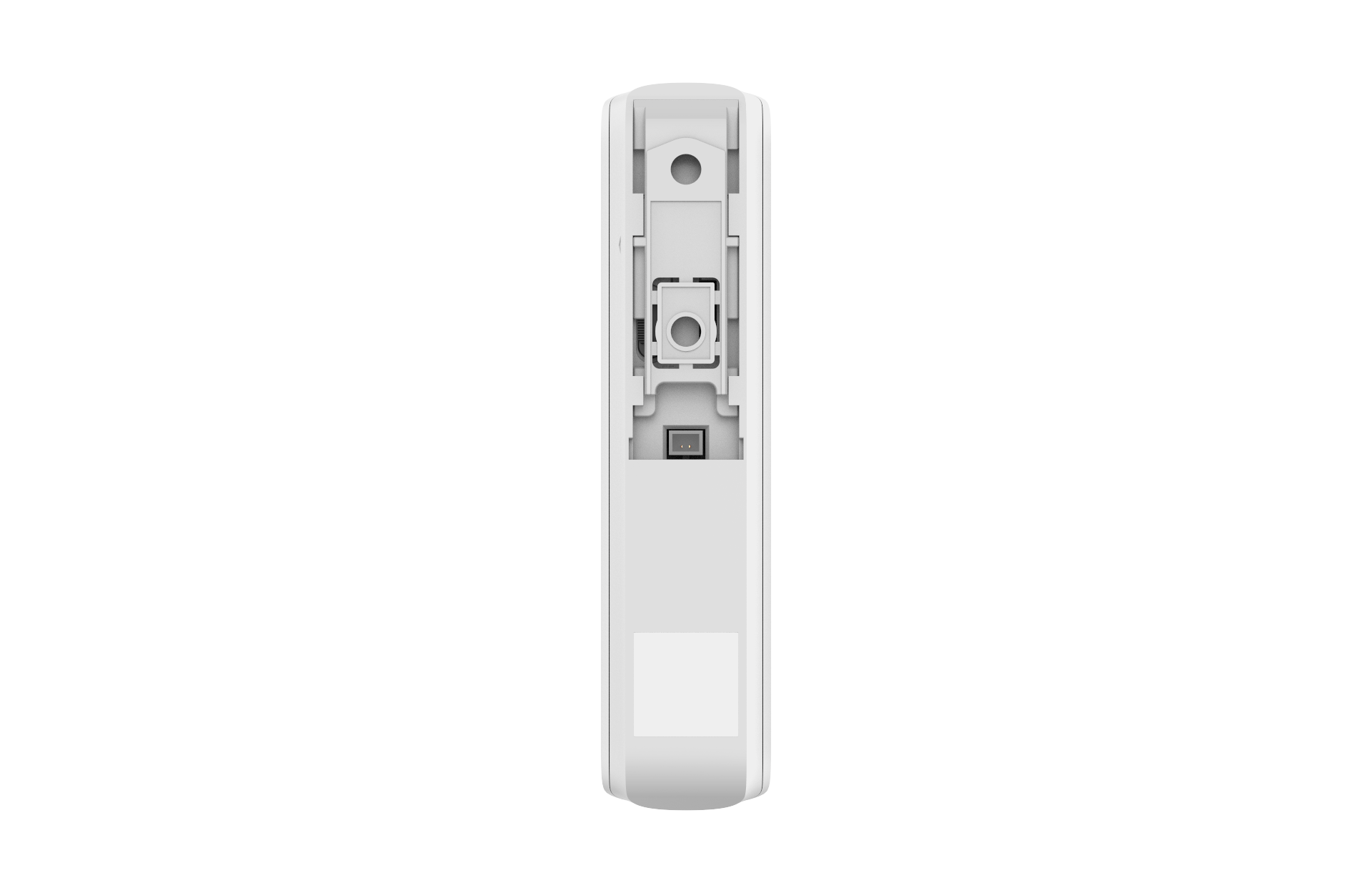

It can be mounted on the SmartBracket in just a few minutes

 Authentication to prevent forgery

 Jamming detection and communication channels encryption

Tech specs
Classification - Surface sound radio channel security detector

Type of detector - Wireless

Installation method - Indoors

Compatibility - Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge

Sensing element - Electret microphone

Break detection distance - Up to 9 m

Alarm signal delivery time - 0.15 s

Sensitivity - Adjustable, 3 levels

Detection angle - 180°

Power supply
Battery: CR123A battery, 3 V
Battery life
Up to 7 years

Jeweller radio technology
Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s

Temperature sensor - Available

Operating temperature range - From -10°С to +40°С

Permissible humidity - Up to 75%

Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing - +

Dimensions - Diameter: 20 mm

Height - 90 mm

Weight - 30 g

Warranty - Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set
GlassProtect glass break detector
SmartBracket mounting panel
CR123A battery (pre-installed)
External contact
Installation set
User's guide

Service life - 10 years
