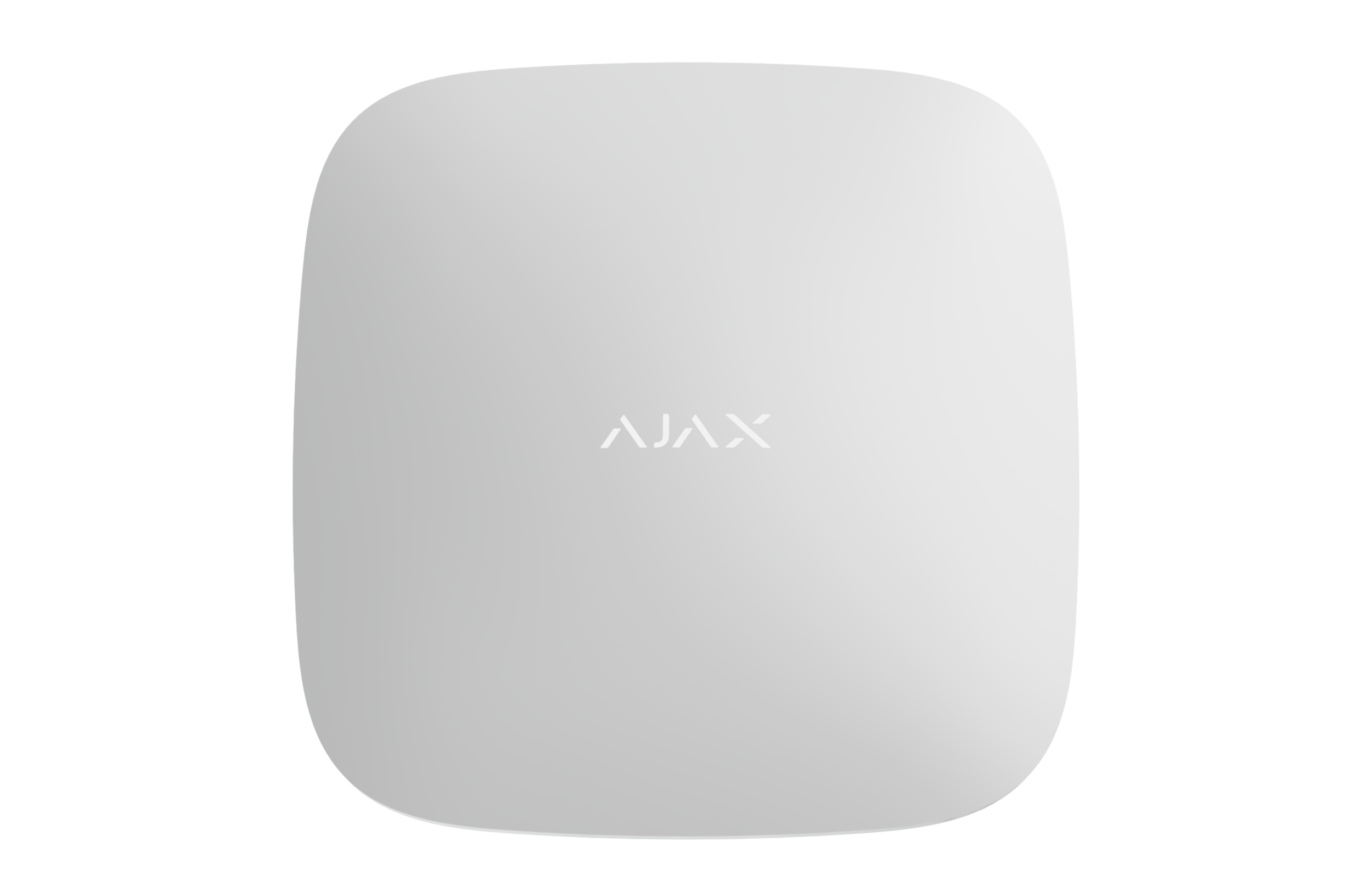

Ajax Hub 2 4G (utan Wifi) White
10038241
Hub 2 (4G) Jeweller
Control panel supporting wireless devices
Capacity
Wireless Ajax devices
up to 100
Specifically, up to 10 sirens and 5 range extenders.
IP cameras or DVRs
up to 25
- Seamless integration with Dahua,
Hikvision, Safire, EZVIZ, Uniview IP cameras, and DVRs. - RTSP support.
Users
up to 50
- Any number of admin users within the hub limit.
- PRO accounts for installers.
- PRO accounts for installation and monitoring companies.
- Access management for users.
Automation scenarios
up to 32
- Alarm responses.
- Scheduled actions.
- Security mode changing reactions.
- Temperature changing reactions.
- Humidity changing reactions.
- Reactions to changes in CO₂ concentration.
- Reactions to pressing Button.
Security groups
up to 9
Rooms
up to 50
Compatibility
Range extenders
Opening detectors
Water leak prevention devices
Glass break detectors
Motion detectors
Fire detectors
Controls and panic buttons
Sirens
Smart air quality monitor
Integration modules
Relays for automation
Smart switches
Smart plugs
Power supply units
Wireless communication
Jeweller communication technology
Proprietary wireless communication technology to transmit alarms and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 2,000 m
Between the hub and connected devices (in an open space).
Maximum range depends on the connected device.
Maximum range depends on the connected device.
Polling interval
from 12 to 300 s
Adjusted by PRO or user with admin rights in the Ajax apps.
Encrypted communication
Block encryption with a dynamic key protects all the stored and transmitted data.
Frequency hopping
Prevents radio interference and radio signal interception.
Wings communication technology
Proprietary wireless communication technology to transmit photo verifications.
Key features:
- Two-way communication.
- Block encryption featuring a dynamic key.
- Advanced anti-sabotage.
- Package re-uploading in case of transmission errors.
- Photo delivery check.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal range
up to 1,700 m
Between the hub or radio signal range extender and connected devices (in an open space).
Maximum range depends on the connected device.
Maximum range depends on the connected device.
Encrypted communication
Block encryption with a dynamic key protects all the stored and transmitted data.
Frequency hopping
Prevents radio interference and radio signal interception.
Recommendations
The device operating voltage is
110–240 V~.
110–240 V~.
Hub is designed for indoor installation only.
Communication channels
Ethernet
1 8P8C socket
Up to 100 Mbps.
Cellular
2 micro-SIM slots
Cellular bands
2G
GSM900/DCS1800 (B3/B8)
3G
WCDMA 850/900/2100 (B1/B5/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20
Automatic switching
Between Ethernet and SIM — instantly.
Between 4G (LTE), 3G, and 2G networks of one SIM — instantly.
Between SIMs — up to 4 minutes.
Between 4G (LTE), 3G, and 2G networks of one SIM — instantly.
Between SIMs — up to 4 minutes.
Communication channels prioritization
1. Ethernet
2. Cellular connection
2. Cellular connection
Communication channels work in parallel to increase the system’s reliability.
Most of the data is transmitted via Ethernet.
Most of the data is transmitted via Ethernet.
Notifications
Supported notification types
- Push
- SMS
- Calls
Event types
- Alarms
- Malfunctions
- Security mode changing
- System events
- Non-security alerts
- Automation devicesʼ events
The notification types are configured individually for each user.
Photo verification
Photo verification types
- Photo by alarm
- Photo by scenarios
- Photo on demand
Photo delivery time
up to 9 s
by default.
Photo resolution
up to 640 × 480 pixels
Depends on the detector.
Number of photos in a series
from 1 to 5 pictures
Monitoring
Supported protocols
- SIA (DC-09)
- SurGard (Contact ID)
- ADEMCO 685
- Other proprietary protocols
Event types
- System alarms and events
- Panic button coordinates
- Photo verification
Power supply
Main
110–240 V~, 50/60 Hz
Up to 10 W of mains power consumption.
Backup
Built-in backup battery: Li-ion 3 А·h
Up to 15 hours of offline operation when Ethernet is disconnected.
Alternative
6 V⎓
Connected via an alternative power supply unit 6V PSU for Hub 2/Hub 2 Plus/ReX 2 which is sold separately.
12 V⎓
Connected via an alternative power supply unit 12V PSU for Hub/Hub Plus/ReX which is sold separately.
Anti-sabotage
Tamper alarm
The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
Device authentication
Frequency hopping
The hub sends notifications to all users and the security company
about jamming or losing connection with the devices.
about jamming or losing connection with the devices.
Enclosure
Dimensions
163 × 163 × 36 mm
Weight
362 g
Operating temperature range
from −10°C to +40°C
Operating humidity
up to 75%
Protection class
IP20
| Category | Alarm |
|---|---|
| Sub-category | Ajax |
| Brand | Ajax |
| Color | Vit |
