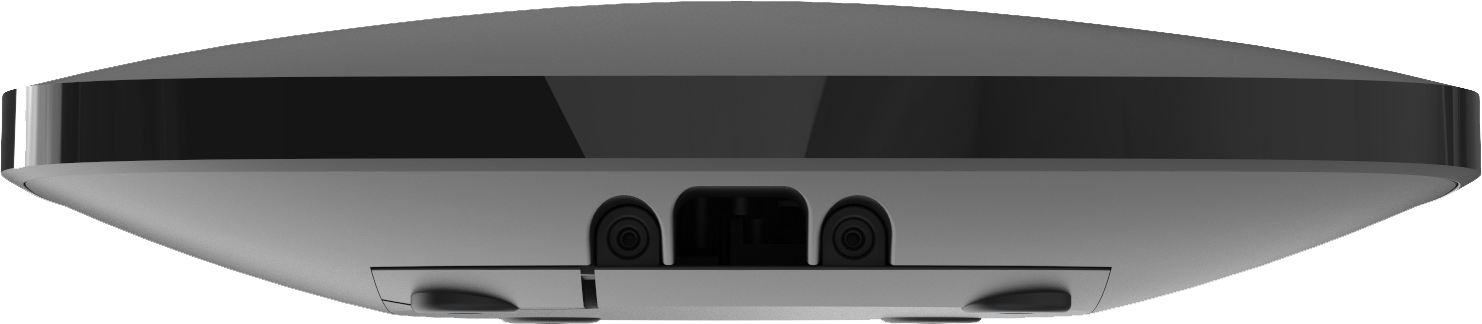

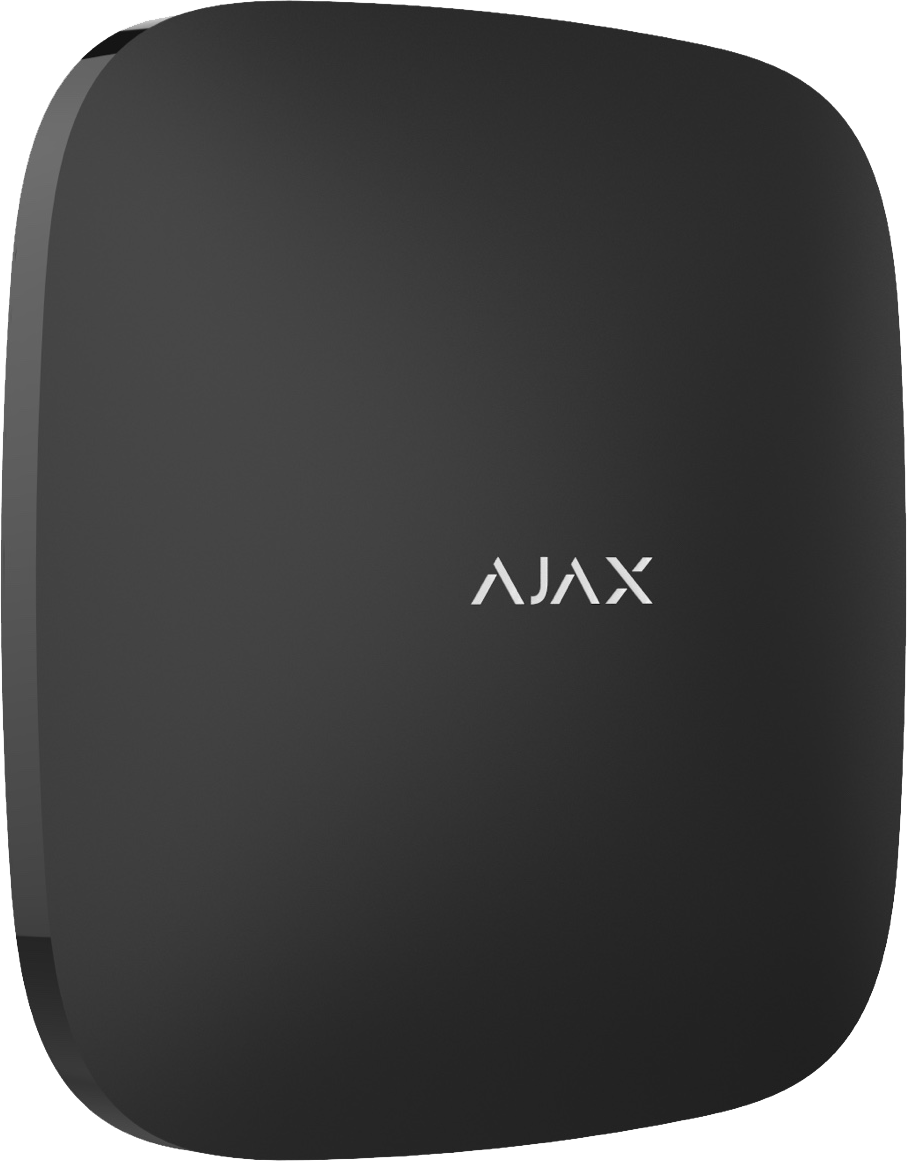

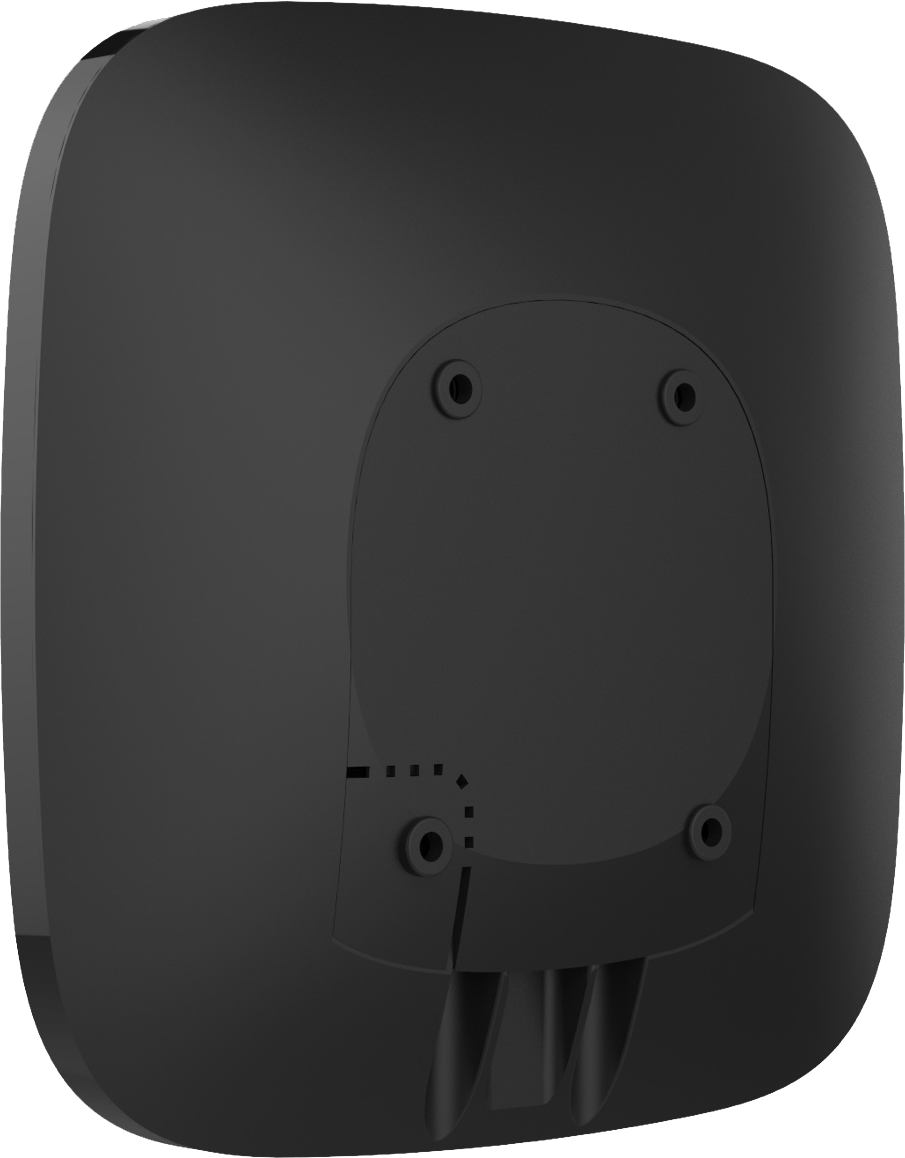

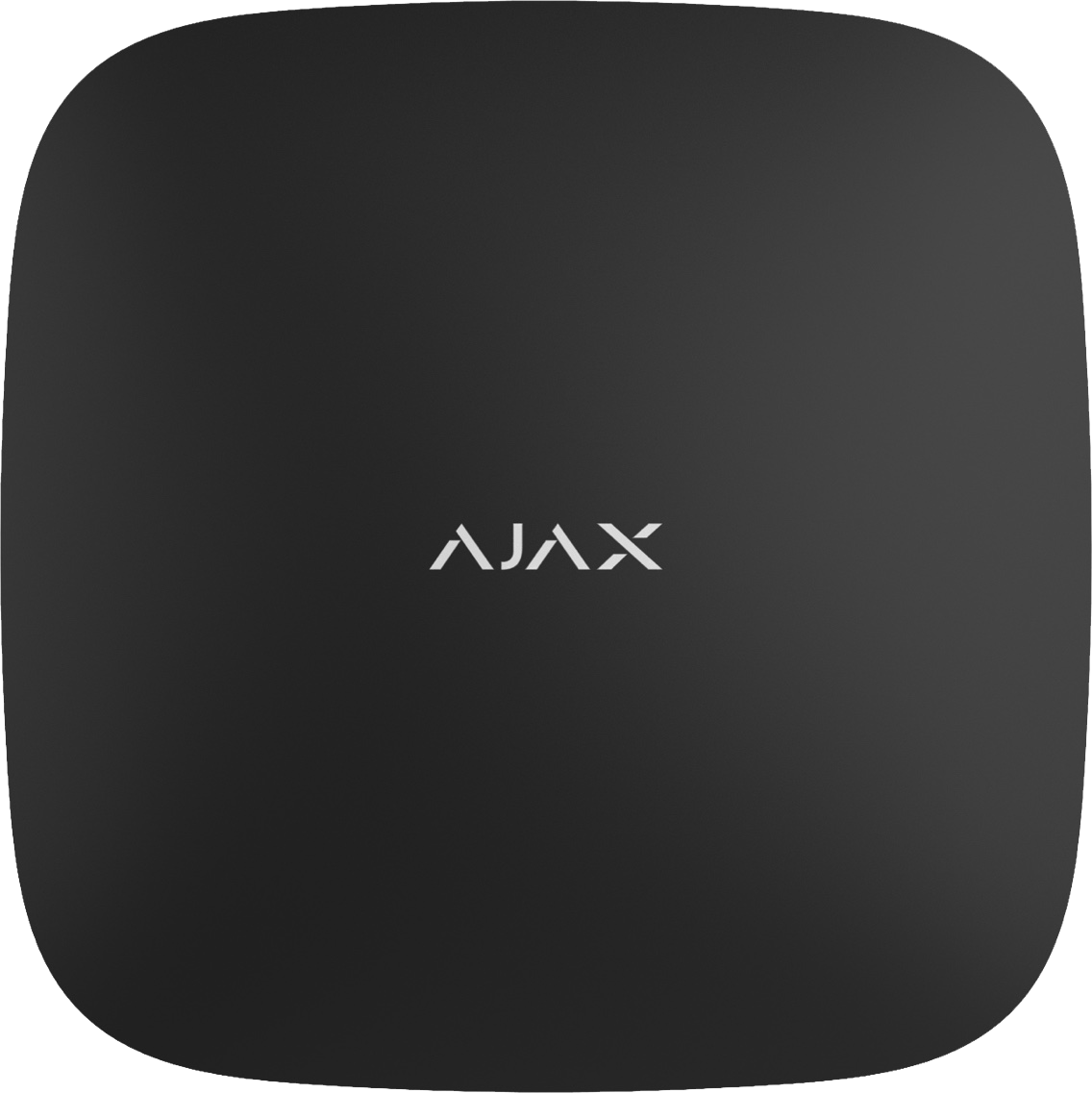

Ajax Hub 2 Plus black

Always in touch — via cables, Wi-Fi, LTE
Communication with the outer world is critical for alarm control panels
Its reliability guarantees prompt delivery of alarm signals to Alarm Receiving Center and system users
Hub 2 Plus makes external communication stability absolute
It has 4 communication channels and supports LTE
Such configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up
Switching between channels happens seamlessly in seconds

Alarm verification with photo in 9 seconds
Photo verification is the future of the security industry
This technology is an optimal solution for both commercial and residential premises — it is accessible and built to respect privacy
Animated series of photos from MotionCam detectors allow users and CMS operators to evaluate the situation in action
But photo cameras are activated only in response to alarms, never by request
Hub 2 Plus can manage up to 200 MotionCam detectors and deliver photo confirmations of alarms to users and alarm monitoring companies in just 9 seconds,
even when it uses SIM cards for communication. Thanks to LTE support

Seamless security system upgrade
To simplify the process of upgrading installed hubs, we’ve provided the possibility of automatic data transfer
The import feature allows engineers to migrate settings, connected devices, groups, scenarios, and users from an old hub to Hub 2 Plus
In less than 15 minutes

 Visual alarm verification

 Alarms via calls, SMS and push notifications

 Synchronized operation of all communication channels

 Direct connection with central monitoring stations

Tech specs

Classification - Security system control panel with four in-built channels for external communication and support of detectors with photo cameras

Installation - Indoors

Connected devices - 200

Video surveillance support - 100 cameras and DVRs

Users - 200

Rooms - 50

Security groups - 25

Connected ReX - 5

Scenarios - 64

MotionCam detectors - support

Apps
iOS 11.0 and later
Android 4.4 and later

Communication channels:
2 SIM cards
2G (GSM900/DCS1800 (B3/B8))
3G (WCDMA 850/900/2100 (B1/B5/B8))
LTE (FDD B1/B3/B5/B7/B8/B20)
Wi-Fi (802.11 b/g/n)
Ethernet

Alarm signals - Delivery time: 0.15 sec

Notification types - SMS, call, push-notification

Switching between 2G, 3G, LTE - Instant

Switching between the SIM-cards - 4 minutes

CMS connectivity - Contact ID, SIA (DC-09)
CMS software supporting visual alarms verification

Operating system - OS Malevich

Power supply - 110-240 V with pre-installed battery, 6 V with alternative 6V PSU power supply

Energy consumption from the 110-240 V grid — 10 W

Built-in back-up battery - Li-Ion 3 А·h
Ensures up to 15 hours of operation when using SIM card only

Jeweller radio technology:
Communication range with detectors — up to 2,000 m in an open space
Two-way communication between devices
Operating frequencies — 868,0−868,6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping

Wings radio technology
Transmission of visual confirmations
Delivery verification of packages
Operating temperature range
From −10°С to +40°С
Anti-sabotage
Forgery prevention
Notifications about jamming
Tamper to detect back lid opening and unmounting from SmartBracket
Remote set up and testing

Dimensions - 163 × 163 × 36 mm

Weight - 351 g

Warranty - Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set
Ajax Hub 2 Plus control panel
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
SIM card (depends on region)
User’s guide

Service life - 10 years
