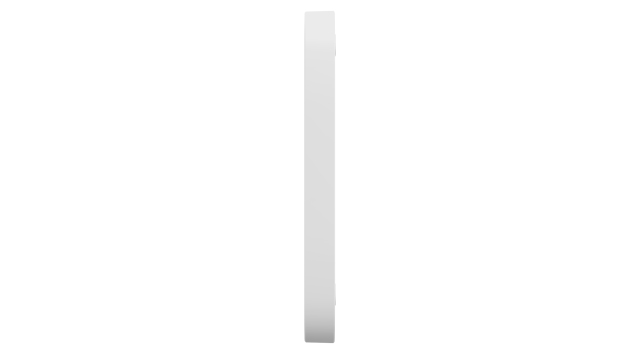

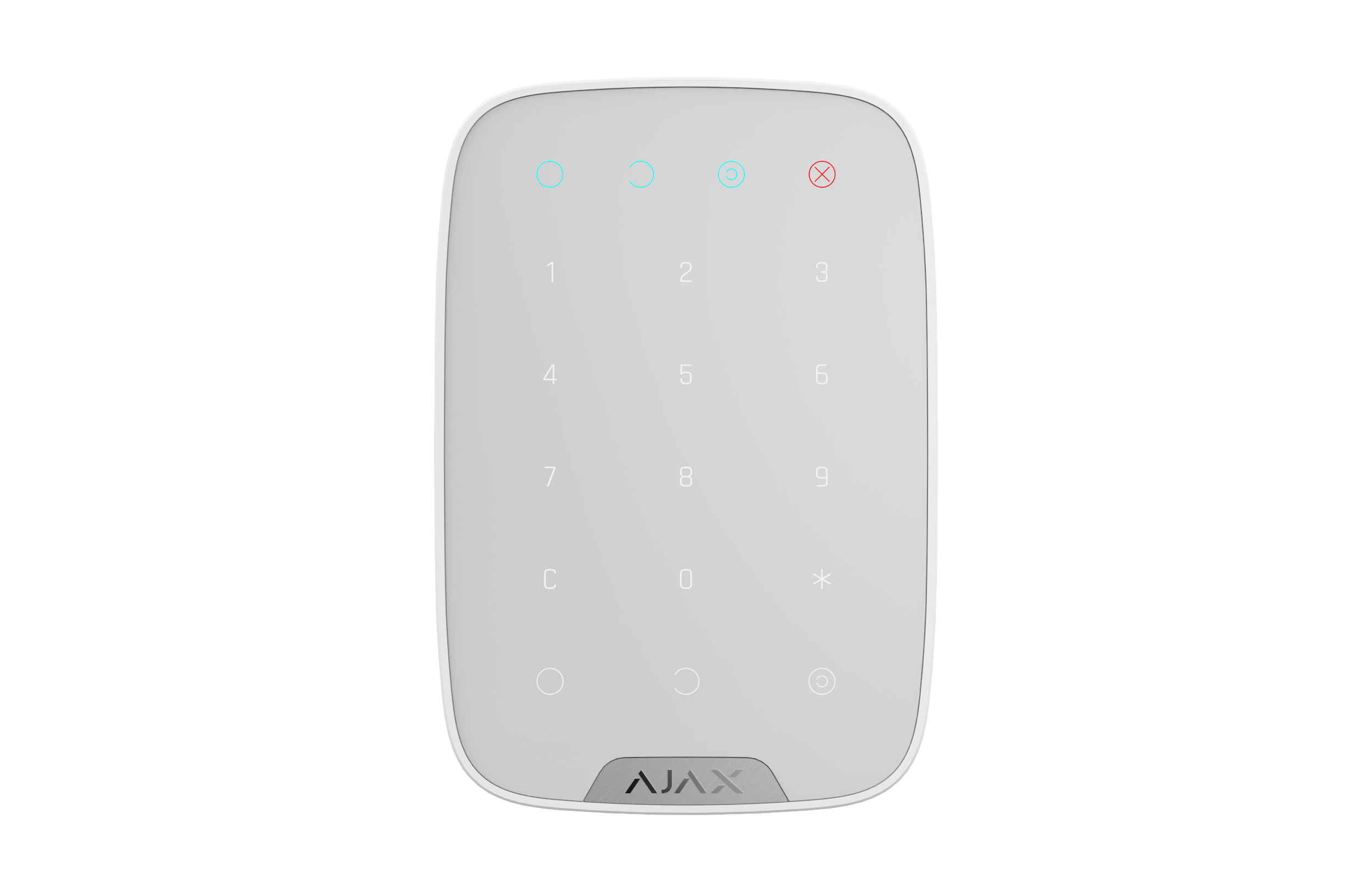

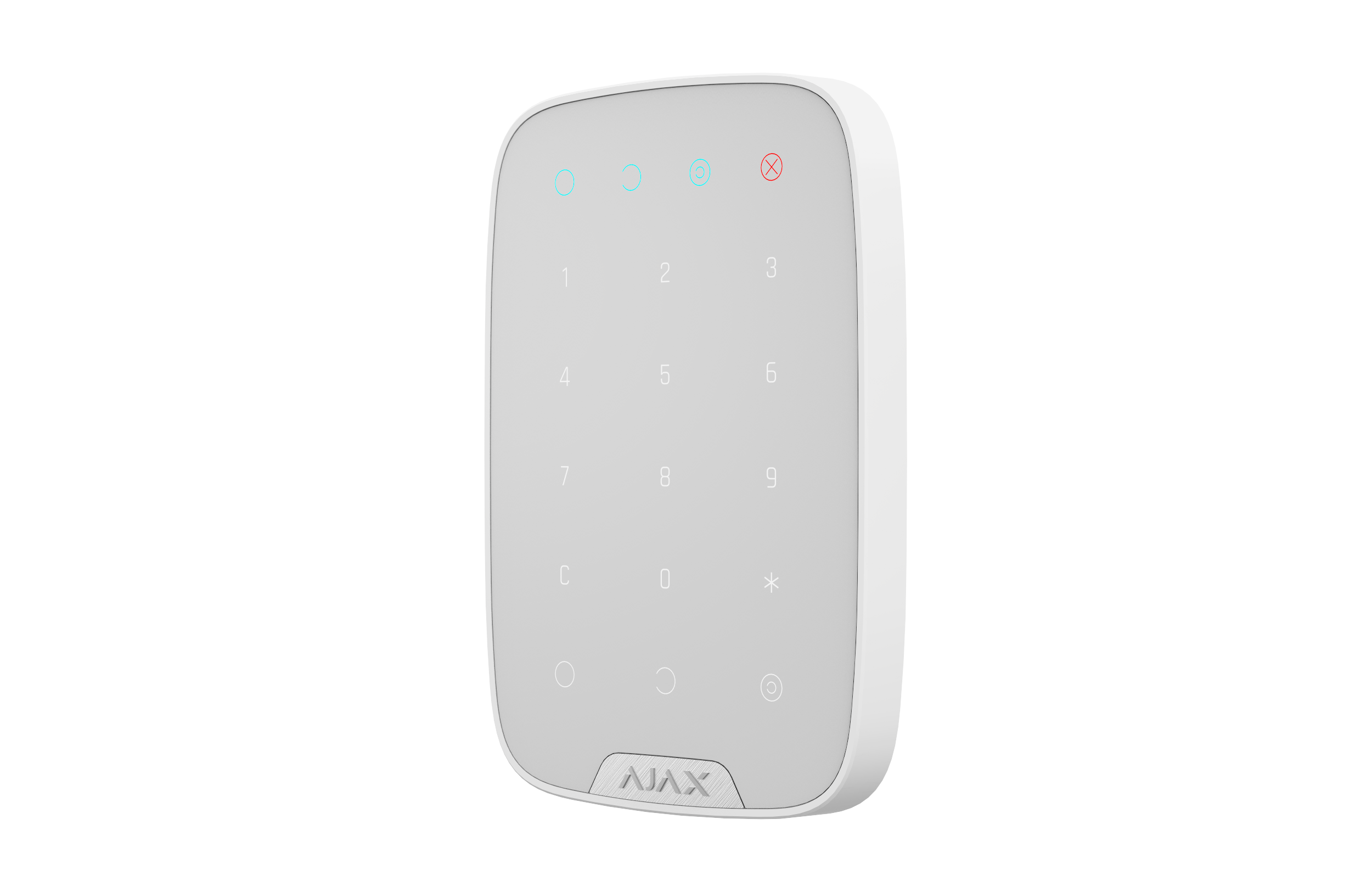

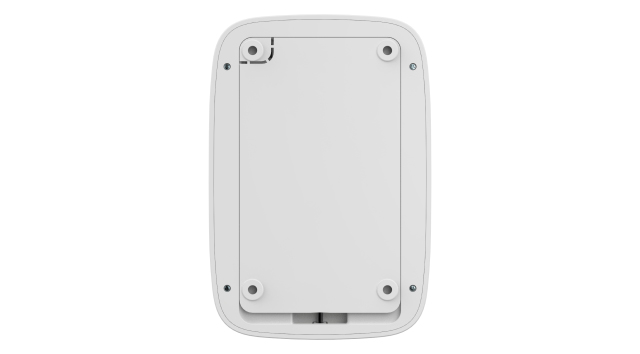

Ajax Keypad white

1008706
AX Manöverpanel (Vit)

Wireless touch keypad is used for arming/disarming of Ajax security system
It is mounted in the room near the entrance door to provide quick access to the keypad

The device operates security modes when a digital code is entered on the keypad
Indication notifies of current security status, problems with detectors or breakdown of communication with the hub

Alarm button is available. It notifies of each attempt to guess the password and blocks automatically if the permissible number of entries is exceeded

 The device activates the full security mode by pressing one button

 If the robber tries to enter the code, a hidden alarm signal can be sent to the CMS

 The keypad is blocked automatically if the incorrect code is entered too many times

Tech specs
Classification - Radio channel touch keypad

Type of keypad - Wireless, touch

Installation method - Indoors

Compatibility
Operates with all Ajax hubs, and range extenders

Number of buttons - 15

Duress code - Yes

User Passcode - Yes

Protection against passcode guessing - Yes

Arming/disarming indication - Yes

Power supply
Battery: 4 × ААA batteries, 3 V (batteries are installed in pairs)
Battery life - Up to 2 years

Jeweller radio technology
Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Keypad scanning period — 12 - 300 s

Temperature sensor - Available

Operating temperature range - From -10°С to +40°С

Permissible humidity - Up to 75%

Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing - Available

Dimensions - 150 × 103 × 14 mm

Weight - 197 g

Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set
KeyPad touch keyboard
SmartBracket mounting panel
4 ААА batteries (pre-installed)
Installation set
User's guide

Service life - 10 years

Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Manöverpaneler
Color Vit
