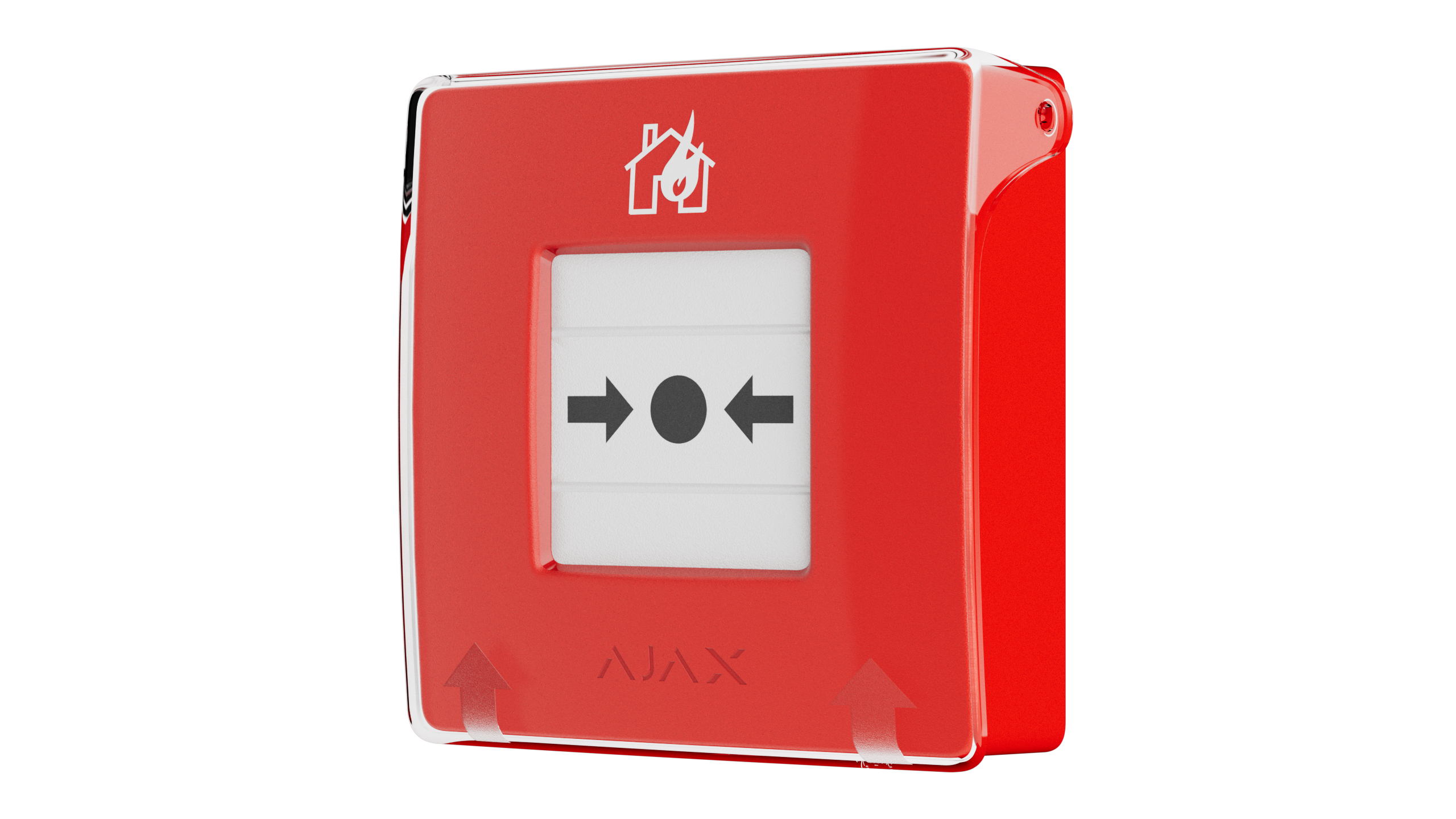

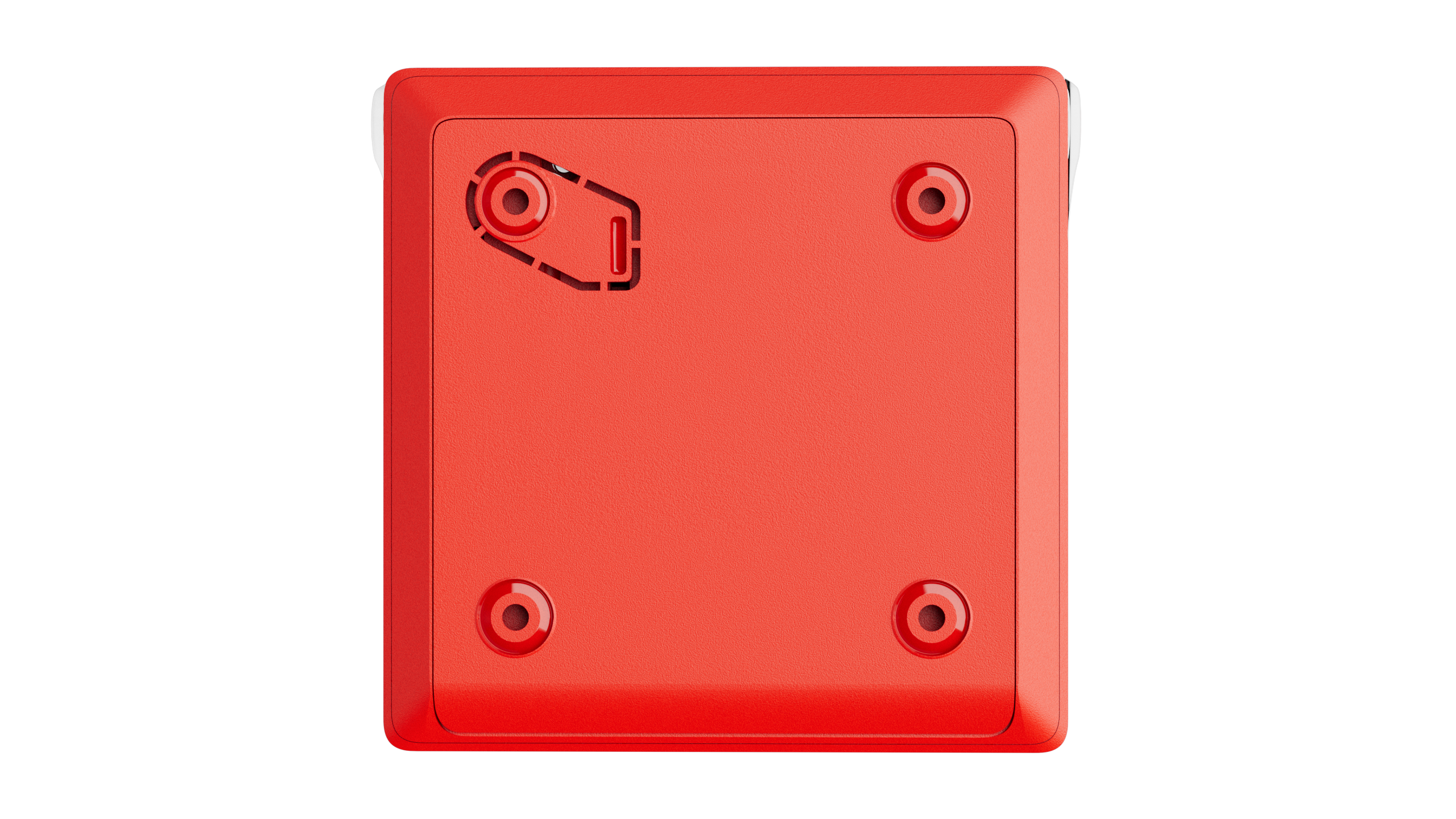

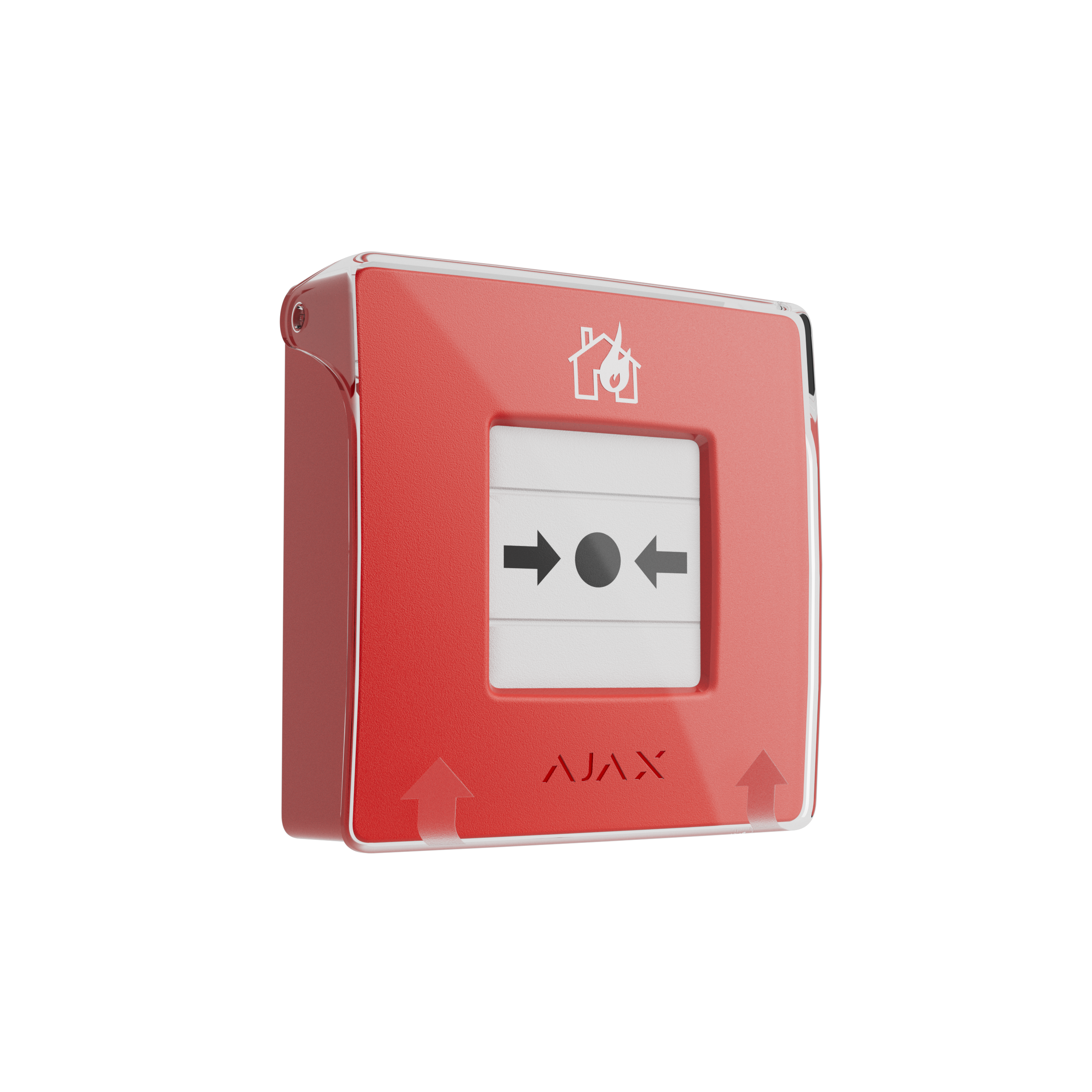

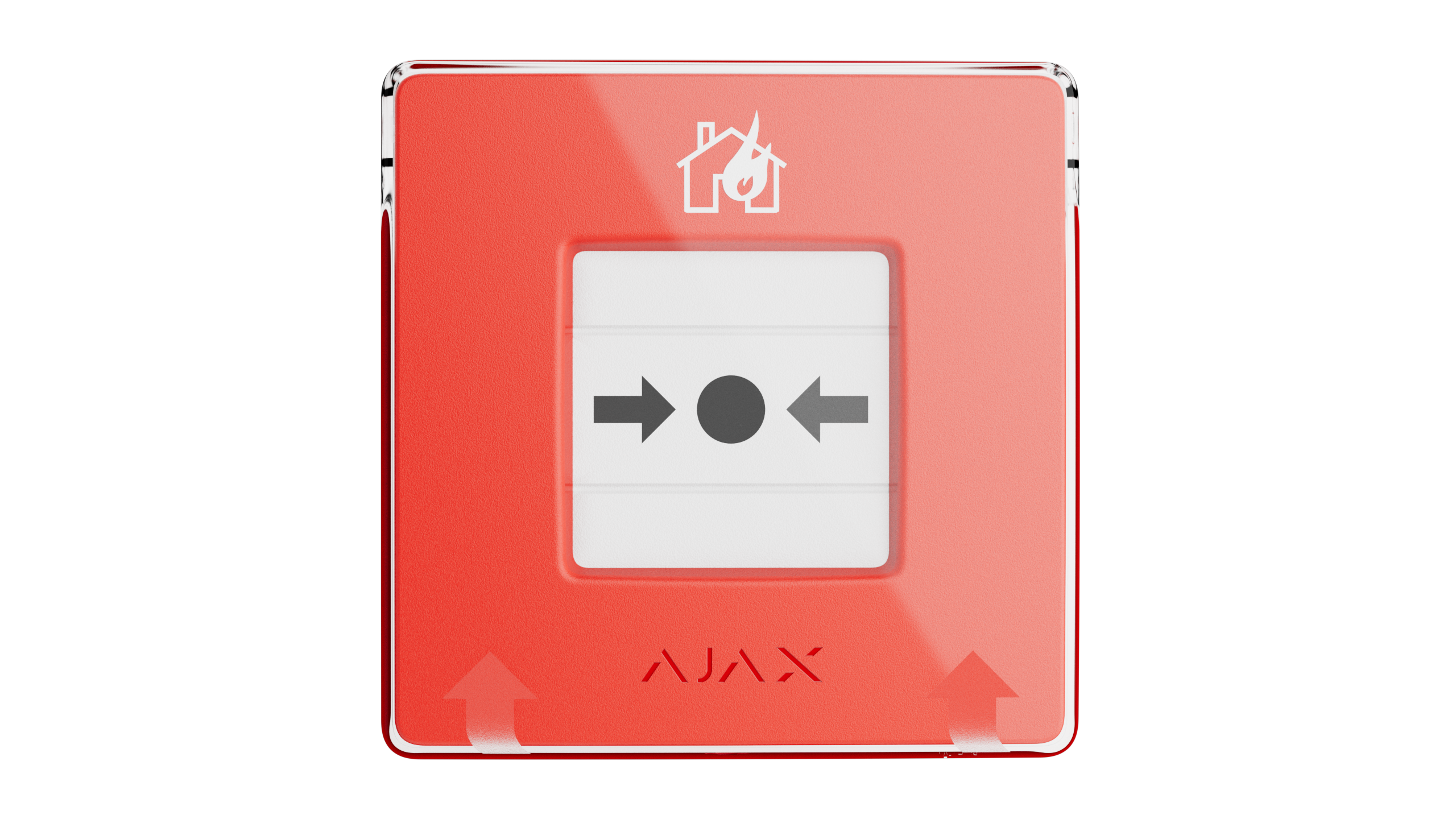

Ajax Manual Call Point (Red)


ManualCallPoint (Red) Jeweller

Red-coloured wireless wall-mounted button for manual fire alarm activation. Designed for residential facilities.


Control panels

Range extenders


Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the region of sale.

Maximum effective radiated power (ERP)

up to 25 mW
Automatic power control to reduce power consumption and noise interference.

Radio signal modulation


Radio signal range

up to 1,700 m
Between button and hub (or range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Key features

Resettable frangible element

activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state.

Operating modes

fire alarm
scenario trigger
With appropriate settings, it activates an alarm or controls Ajax automation devices.

LED status indication

fire alarm
The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected.

Interconnected fire detectors alarms

by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens.

Critical alerts

The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected.

Protection against accidental presses

Lift the transparent lid to access the frangible element. The lid protects against false button presses.

Category Alarm
Sub-category Ajax
Brand Ajax
Color Röd
