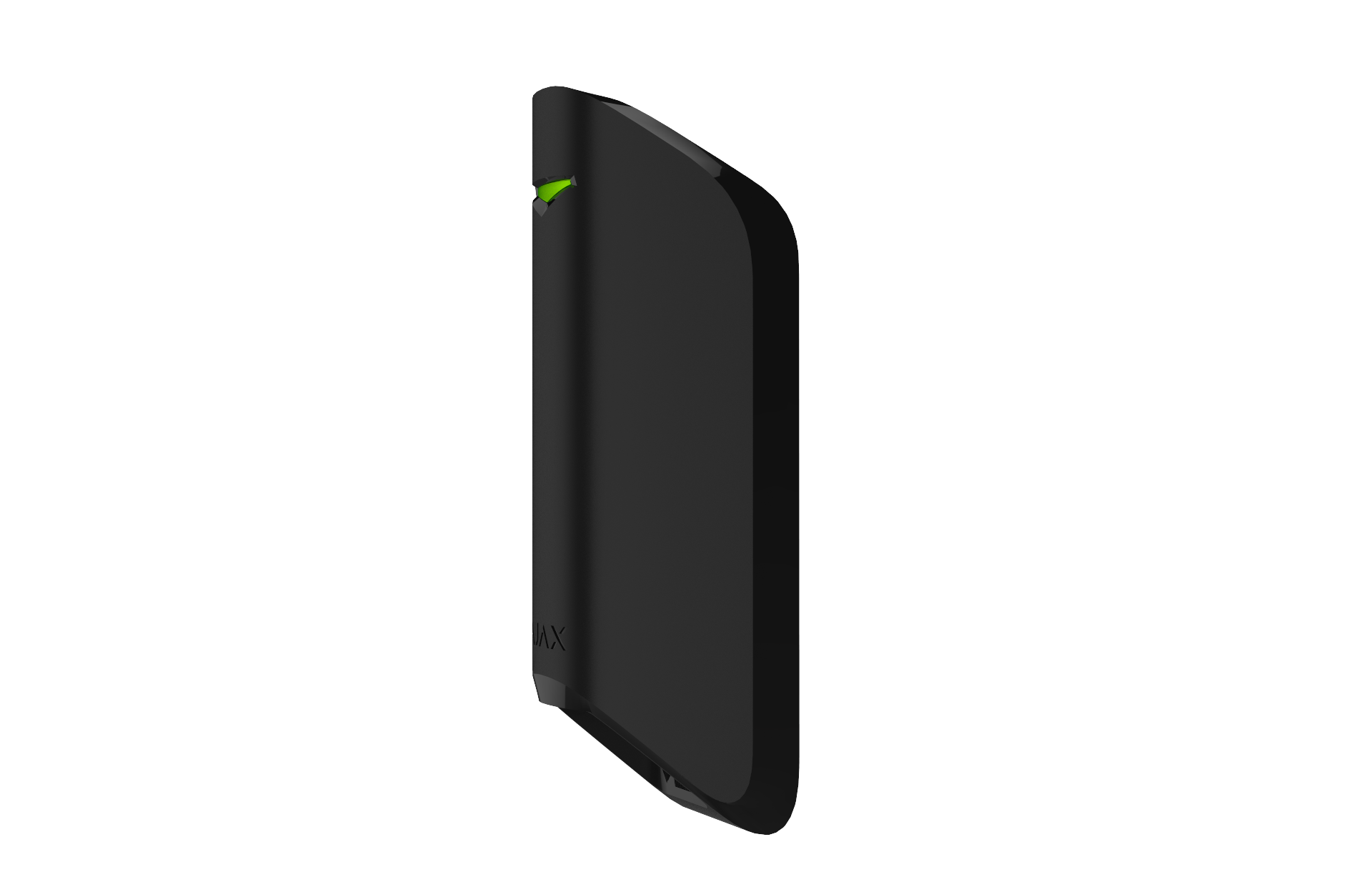

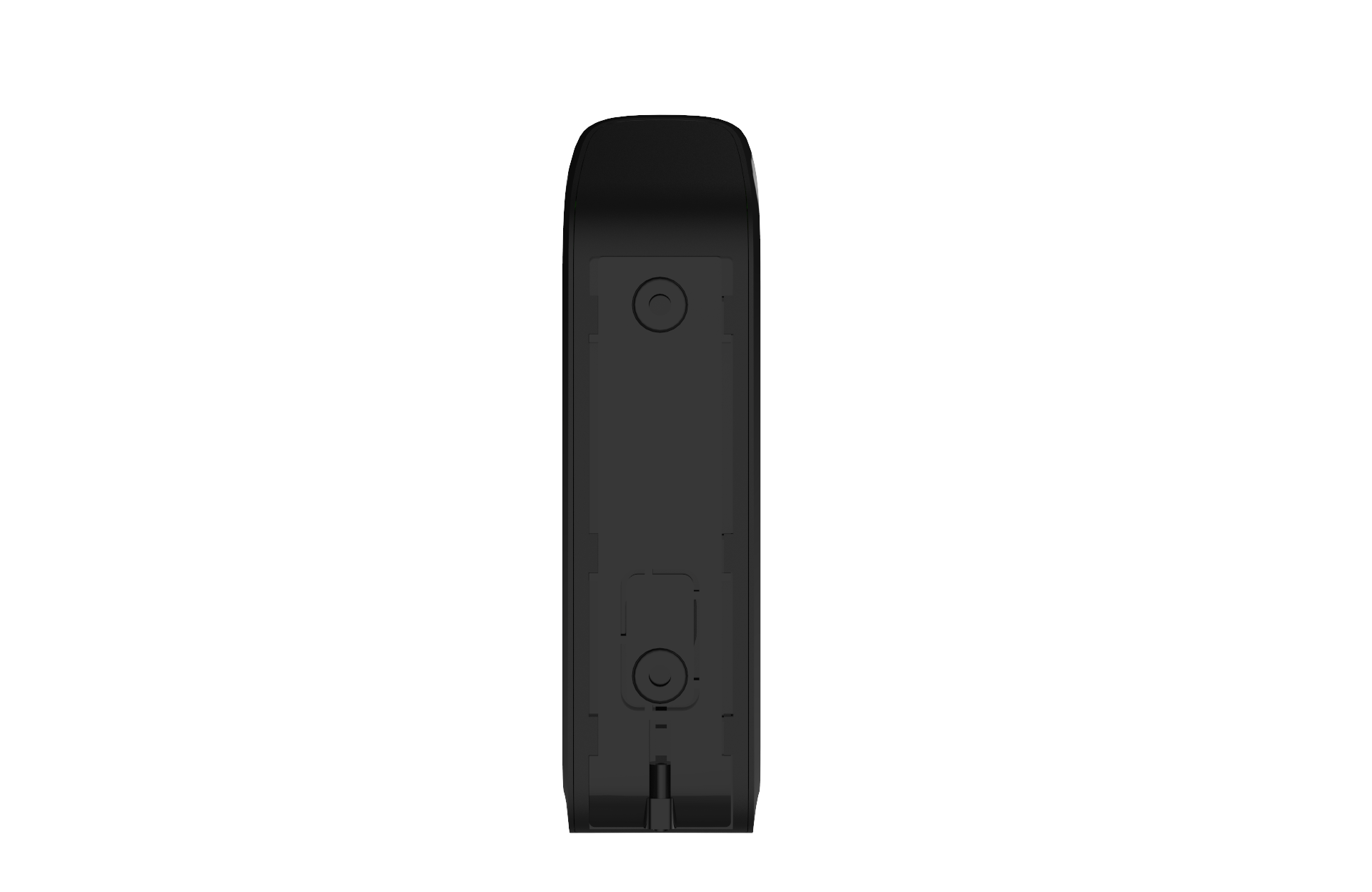

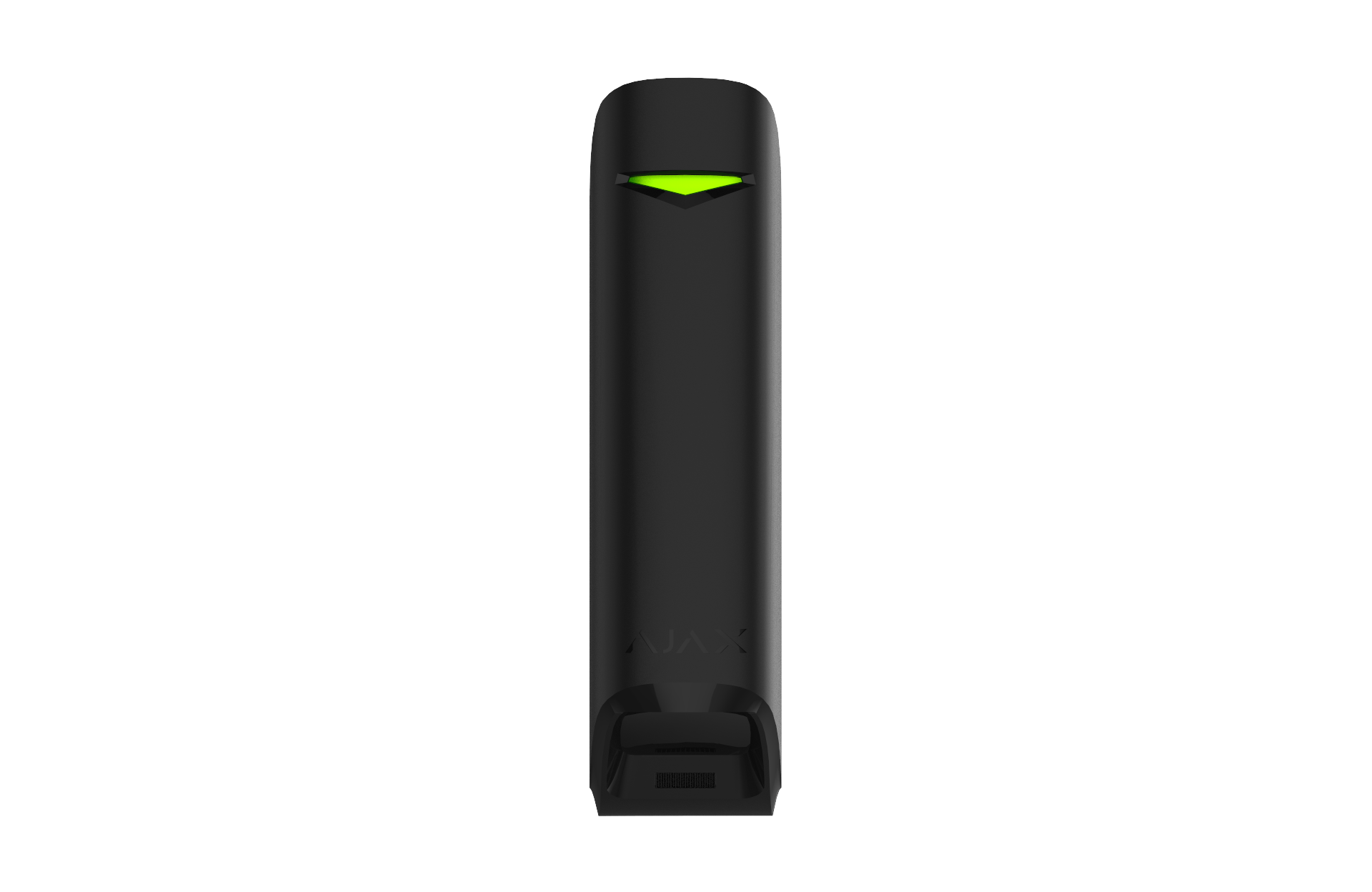

Ajax MotionProtect Curtain (Indoor) black

AX Inomhus ridådetektor (Svart)
With the MotionProtect Curtain detectors, you can secure the perimeter of your house and freely move indoors
If a stranger breaks in, the system will raise an alarm and call the security company
Whether the intruder is running or sneaking — MotionProtect Curtain is always on duty
As soon as they enter its field of view, the detector analyzes signals from both PIR sensors and immediately sends an alert
 Detects motion with a range of up to 15 meters
 Works up to 3 years on the pre-installed battery
 Transmits alarms at a distance of up to 1,700 meters away from the hub
Tech specs
Classification - Radio-interlinked photoelectric security detector
Type of detector - Wireless
Motion detection distance - Adjustable (from 6 to 15 meters)
Installation method - Indoors only
Compatibility - Operates with all Ajax hubs, and range extenders
Sensing element - Two PIR sensors
False alarm reduction - Available, Correlation Signal Processing
Alarm signal delivery time - 0.15 seconds
Detection angles - Horizontally — 6°/ Vertically — 90°
Time for motion detection - From 0.3 to 2 m/s
Sensitivity - Adjustable, 3 levels
Recommended installation height - 2.4 meters
Power supply - Battery: CR123A, 3 V
Battery life - Up to 3 years
Jeweller radio technology
Communication range with detectors — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping
Temperature sensor - Available
Operating temperature range - From −10°С to +40°С
Operating humidity - Up to 95%
Fraud protection
Jamming notification
Remote configuration and testing
Protection class - IP54
Dimensions - 134 × 44 × 34 mm
Weight - 118 g
Warranty - Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries
Complete Set
MotionProtect Curtain motion detector
SmartBracket mounting panel
CR123A batteries (pre-installed)
Installation kit
User’s guide
Service life - 10 years
