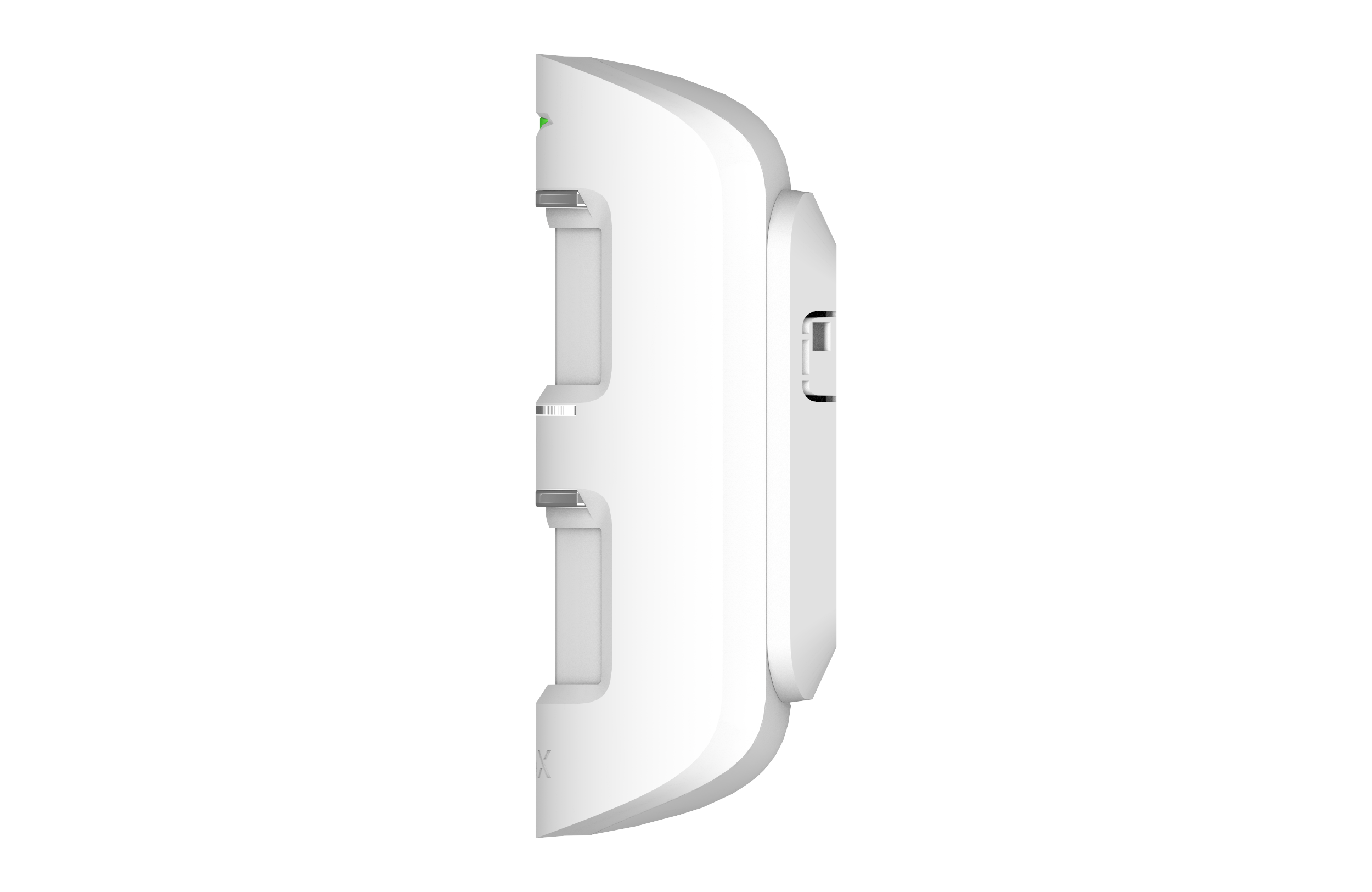

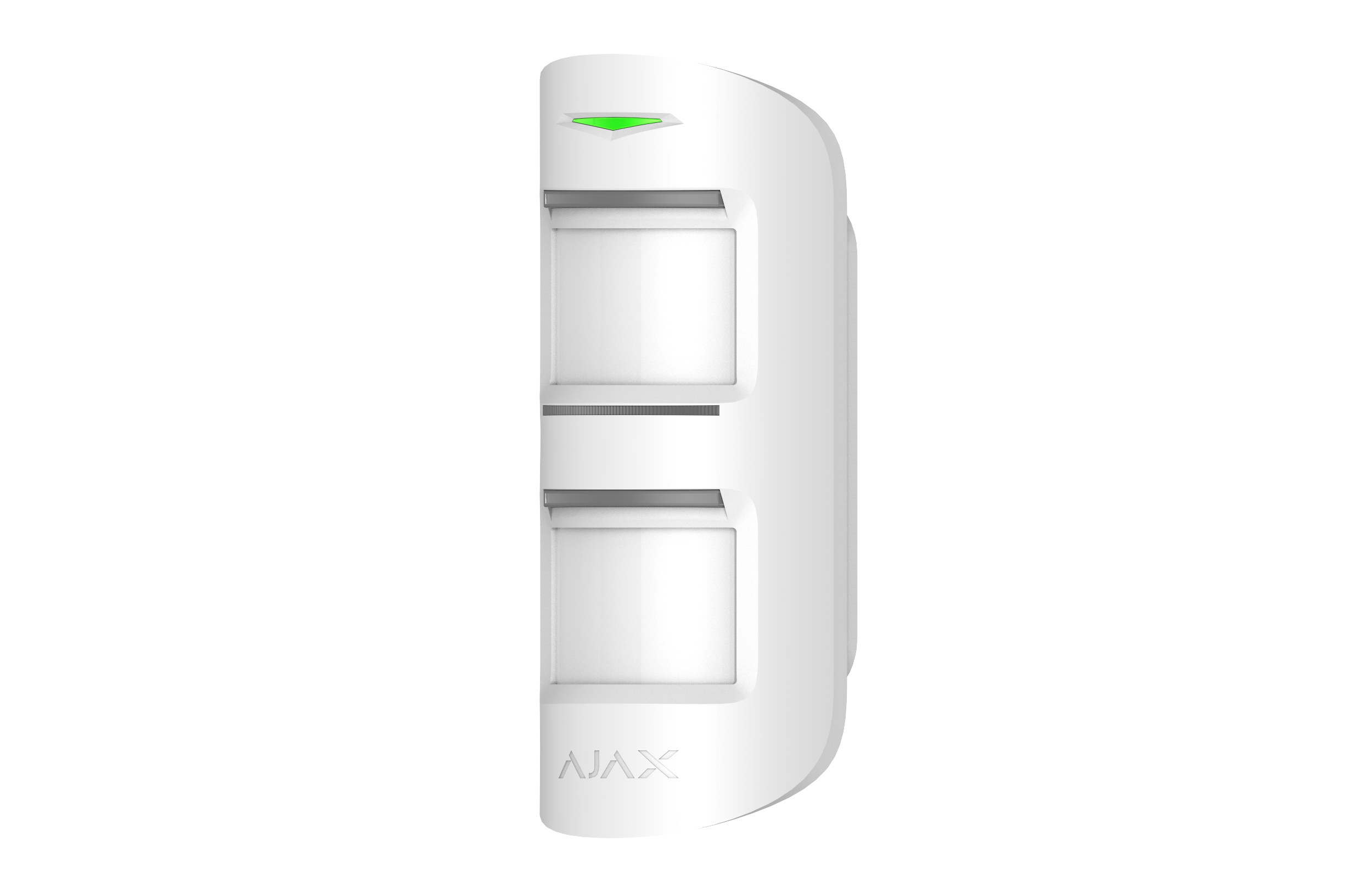

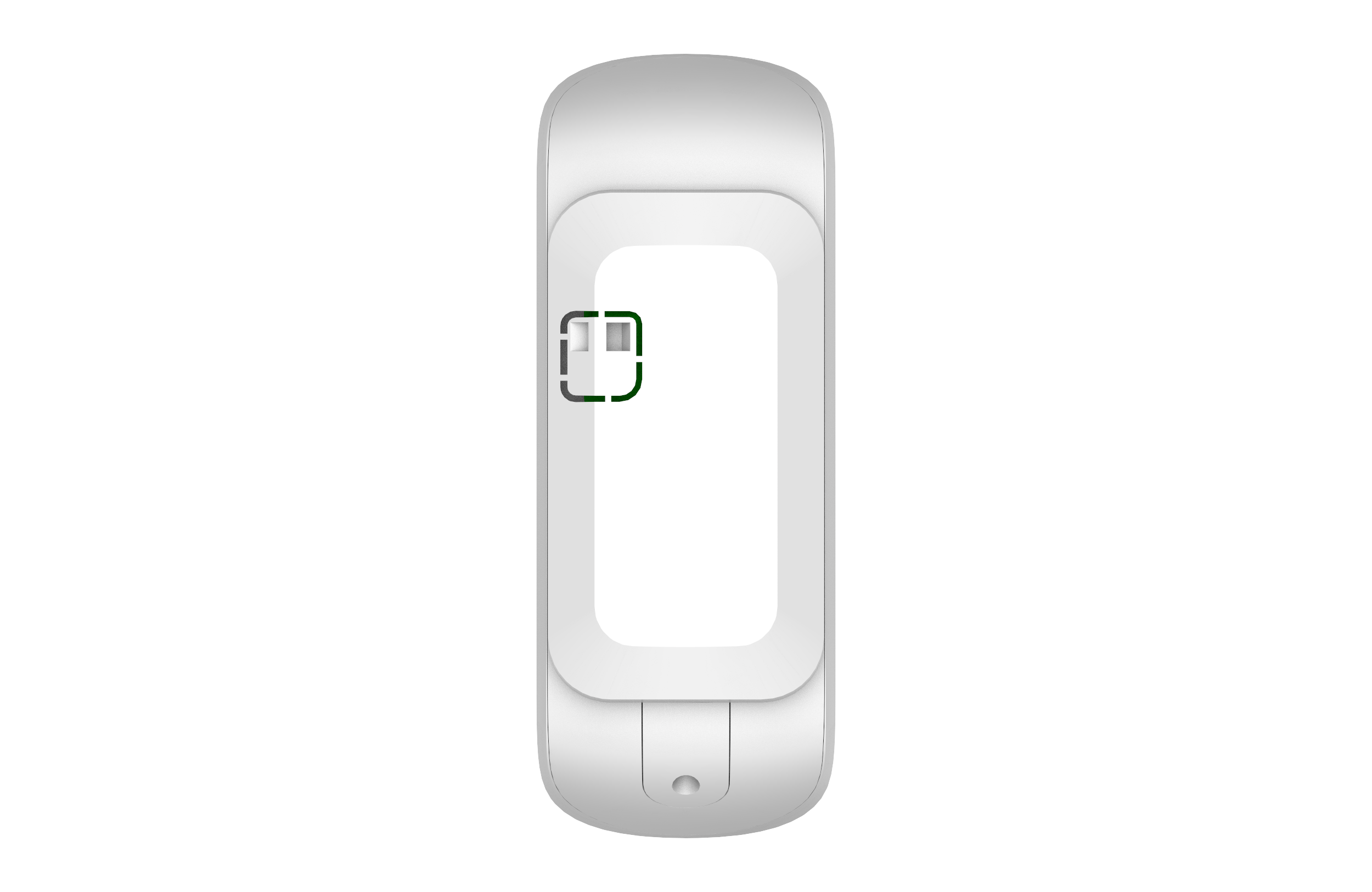

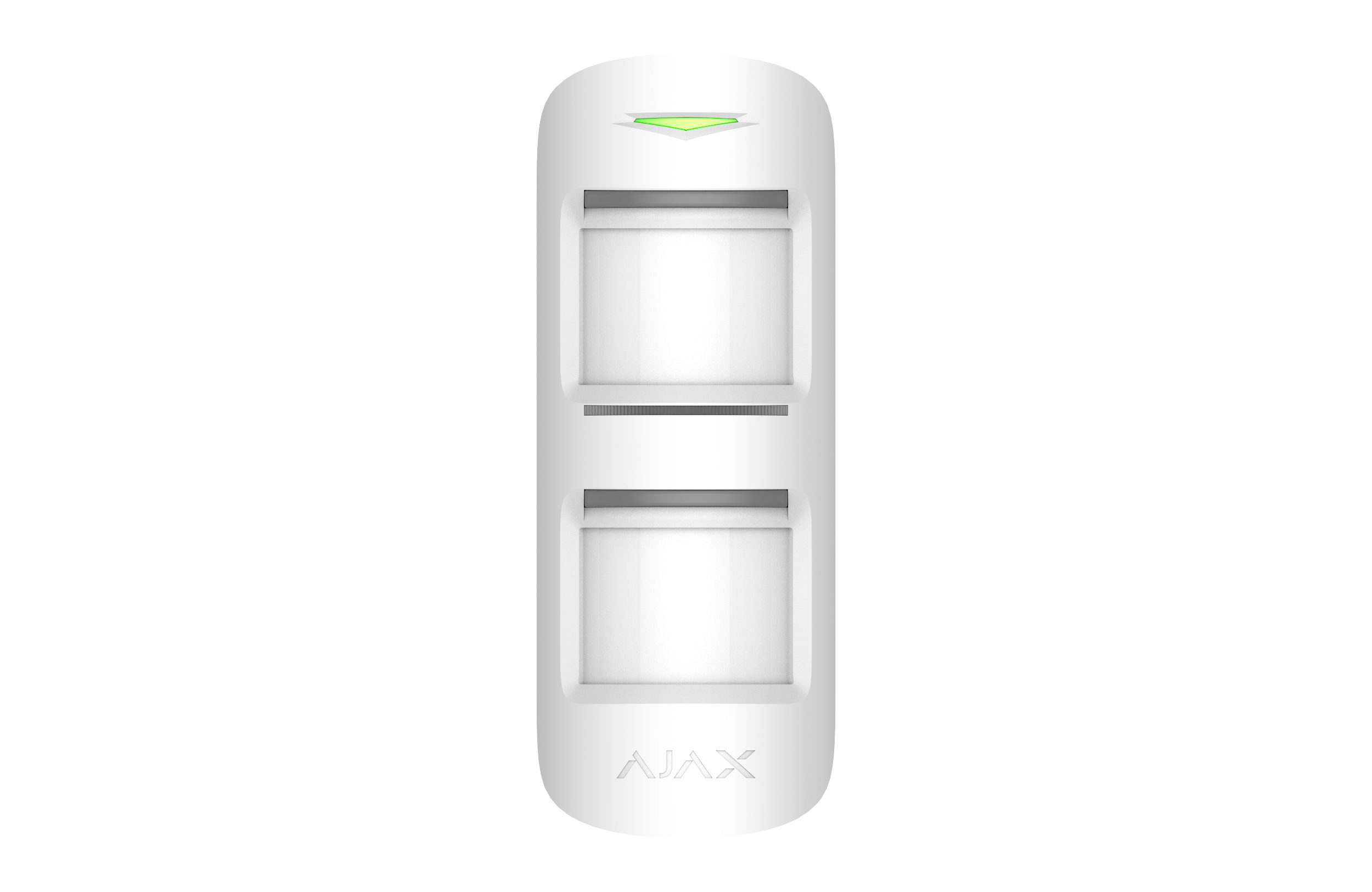

Ajax MotionProtect Outdoor white
10012895
An outdoor detector is an easy target
During the day when the system is disarmed, intruders may damage the sensors or block their view to gain an advantage in trespassing at night
To prevent the cases of sabotage, we’ve equipped MotionProtect Outdoor with a tamper button and an advanced anti-masking system that can remain active 24/7
The anti-masking system in MotionProtect Outdoor calibrates automatically by analyzing the surrounding area when mounting the device onto SmartBracket
Then, if an obstacle appears in the field of view of anti-masking sensors or if they are painted, the detector quickly notices sabotage and raises the alarm
Moreover, a sensitive tamper is immediately activated if someone attempts to dismount the detector from SmartBracket
Tech specs
Classification - Electro-optical radio channel security detector
Type of detector - Wireless
Installation method - Outdoors/indoors
Color - Only white
Recommended installation height - 0.8 — 1.3 m
Compatibility - Operates with all Ajax hubs, and range extenders
Sensing element - Two PIR sensors
Alarm signal delivery time - 0.15 s
Motion detection distance - Adjustable, up to 3–15 m
Detection angle - Horizontal — 90°
Time for motion detection - From 0.3 to 2 m/s
Sensitivity - Adjustable, 3 levels
Pet immunity - Weight — not relevant
Height — up to 80 cm
Anti-sabotage
Anti-masking
Protection against forgery
Jamming detection
Tamper-resistant
Power supply - Battery: 2 × CR123A batteries, 3 V, pre-installed
Optional mains supply - 5–28 V DC
Battery life - Up to 5 years
Jeweller radio technology
Communication range with the central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0−868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12—300 s
Temperature sensor - Available
Operating temperature range - From -25°С to +60°С
Permissible humidity - Up to 95%
Protection class - IP55
Remote set up and testing
Dimensions - 183 × 70 × 65 mm
Weight - 322 g
Warranty - Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty
Service life - 10 years
Complete set:
MotionProtect Outdoor motion detector
SmartBracket mounting panel
Two CR123A batteries (pre-installed)
Installation kit
User's guide
| Category | Alarm |
|---|---|
| Sub-category | Ajax |
| Brand | Ajax |
| Alarm Type | Rörelsedetektorer |
| Color | Vit |
