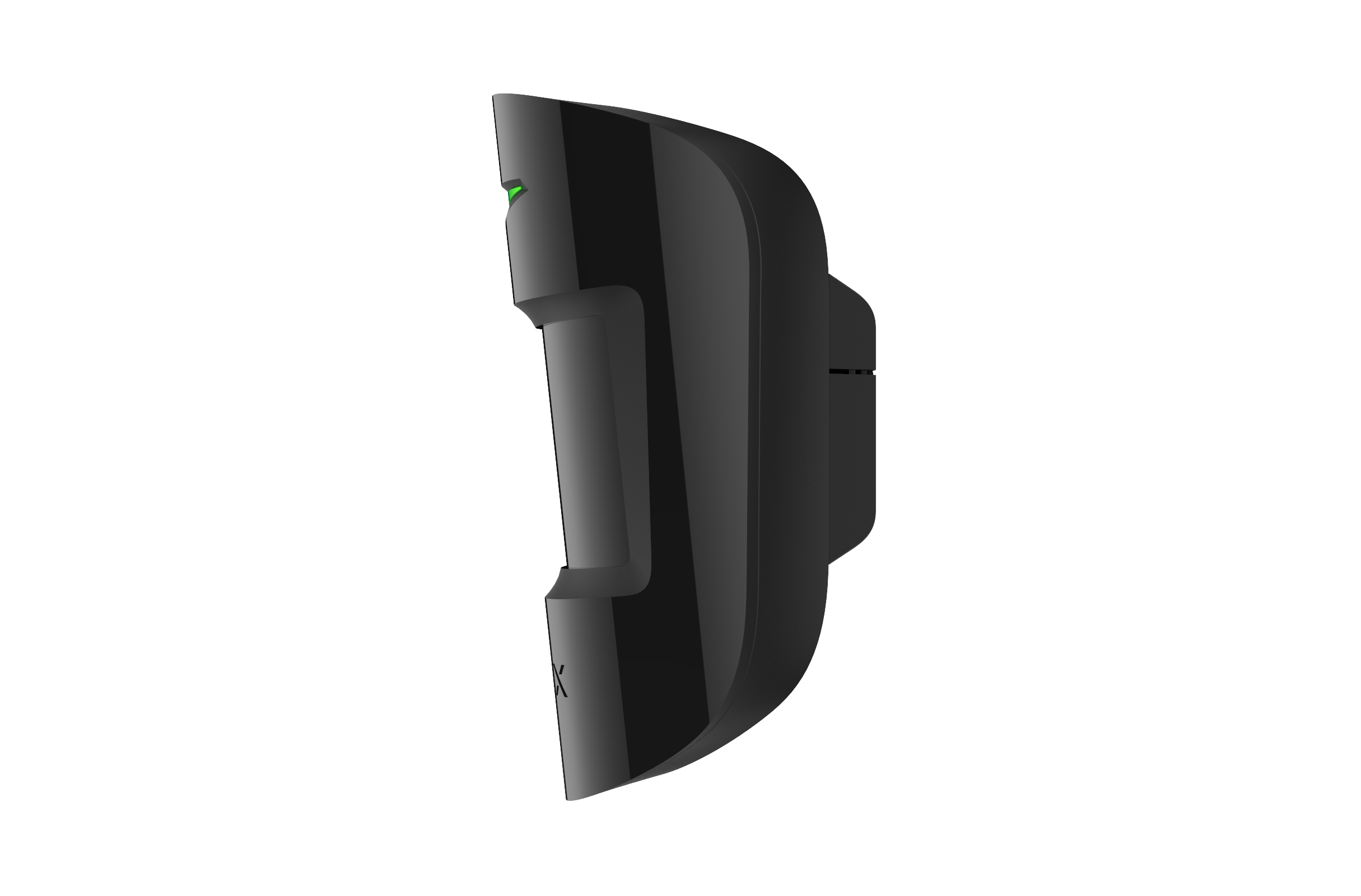

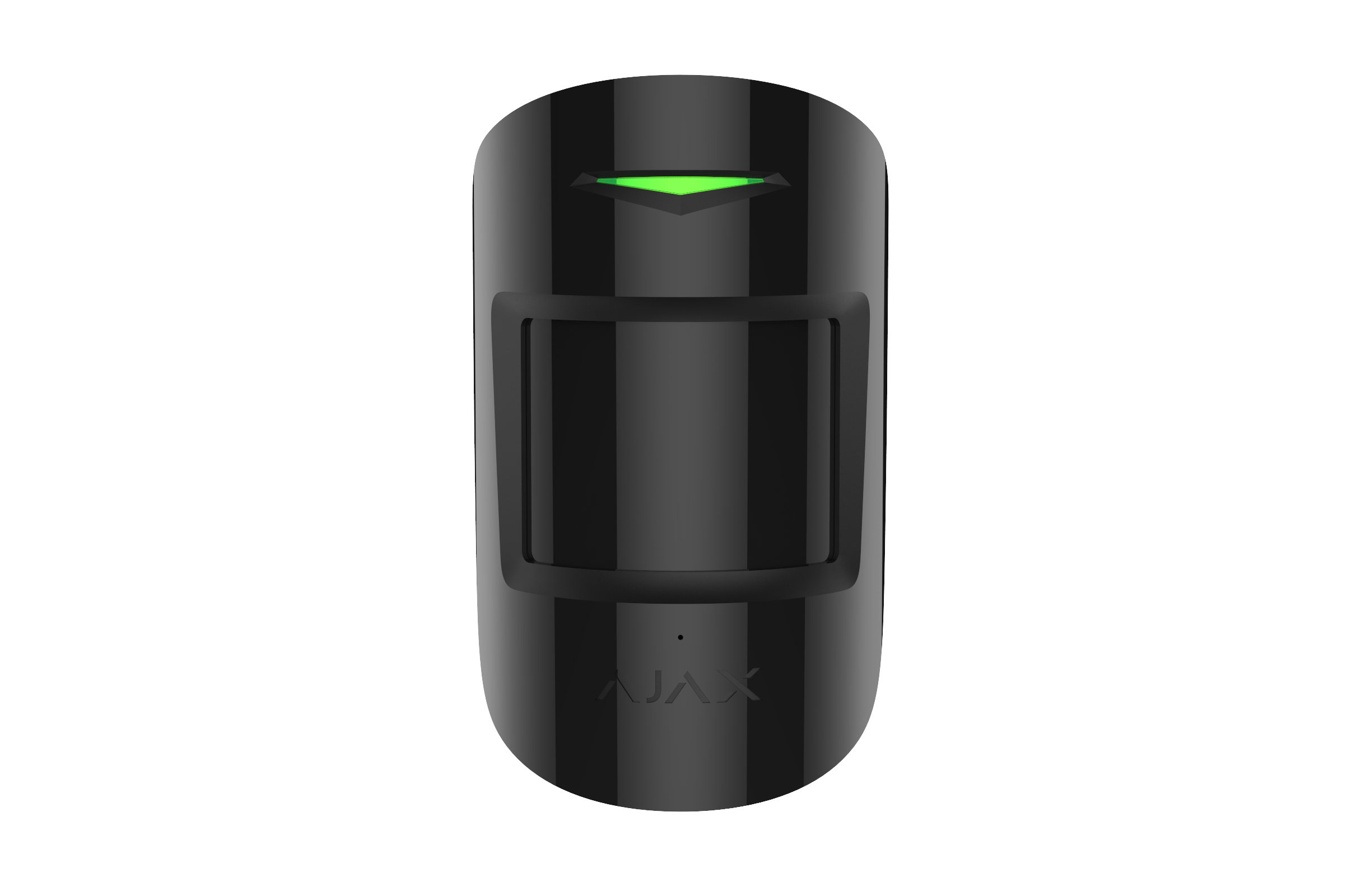

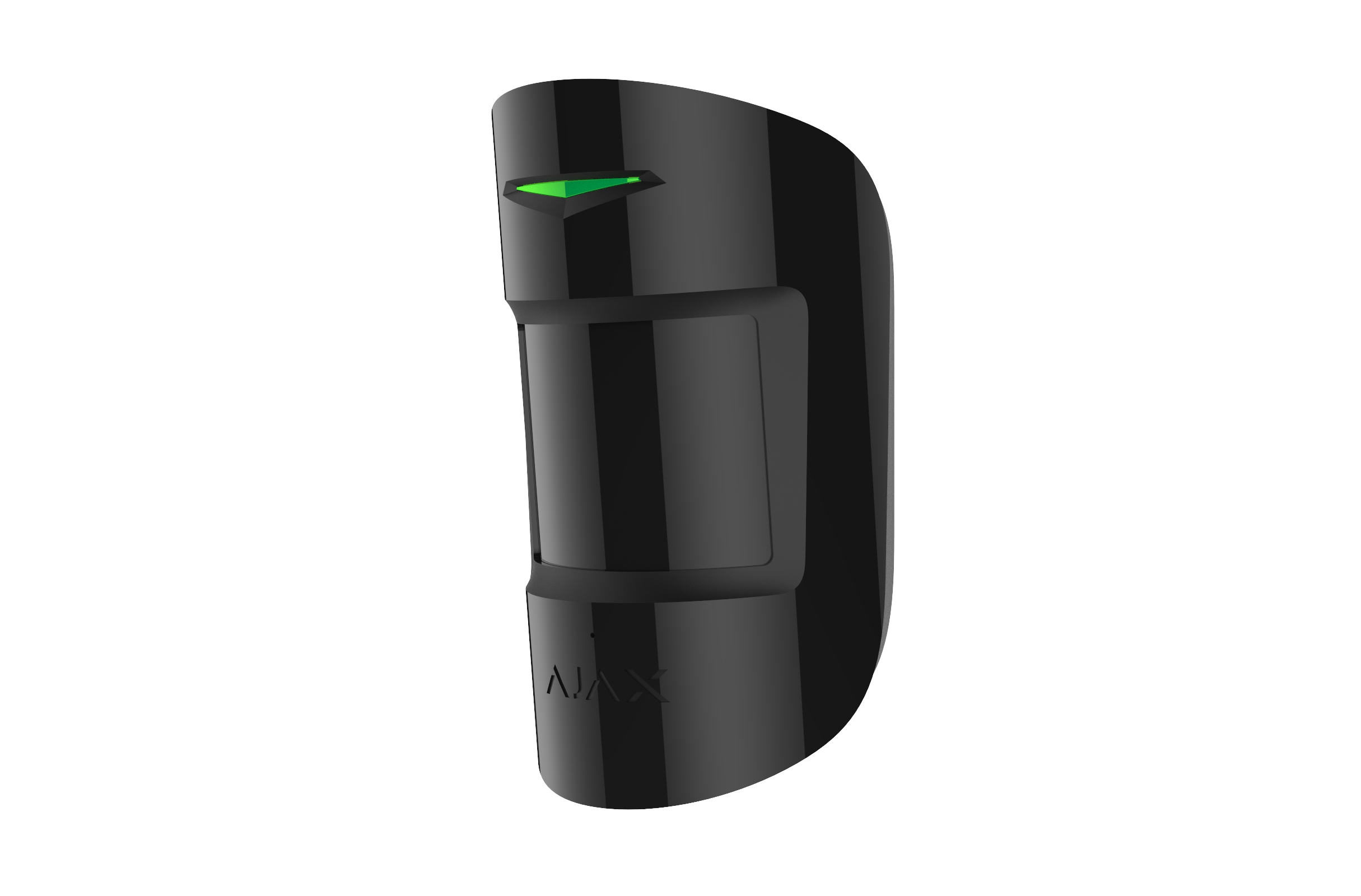

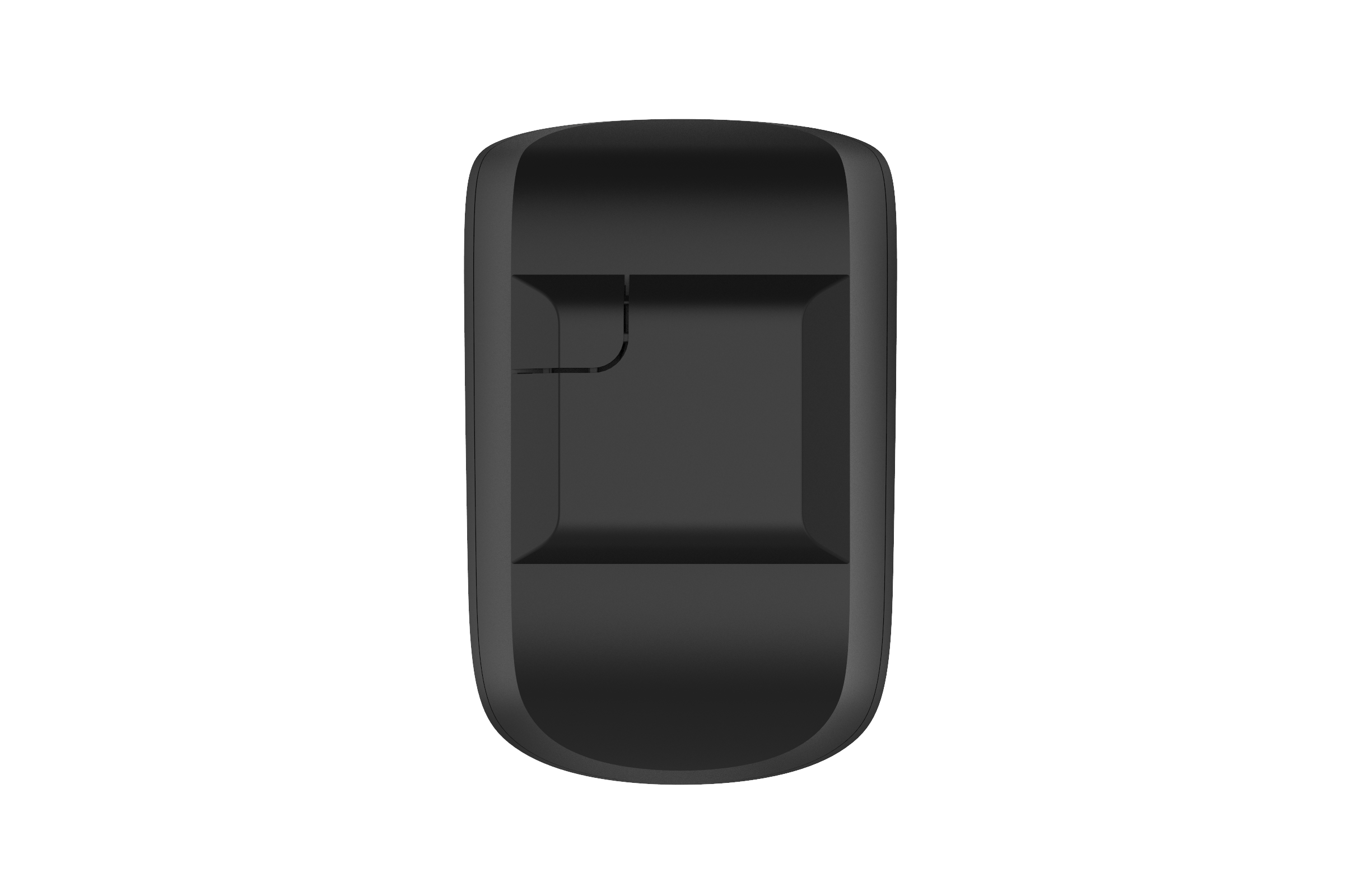

Ajax MotionProtect Plus black

1008220
AX Rörelsedetektor Plus PIR/Mv (Svart)

Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion
Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections

Detects human presence by temperature difference with background thermal radiation
The microwave sensor prevents false alarms caused by complex interference

Designed for operation in rooms with fireplaces and air conditioners
Detects and ignores draughts, movement of curtains and blinds, and light flickering, glare and reflections

 The microwave sensor filters possible interference from the air conditioner and curtain movement

 Ignores pets weighing up to 20 kg and with a height up to 50 cm

 The device operates up to 5 years without battery replacement

Tech specs
Classification - Electro-optical combined radio channel security detector

Type of detector - Wireless

Installation method - Indoors

Compatibility
Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge

Sensing element - PIR sensor, microwave sensor (24 GHz)

Alarm signal delivery time - 0.15 s

Motion detection distance - Up to 12 m

Detection angles
Horizontal — 88.5°
Vertical — 80°

Time for motion detection - From 0.3 to 2 m/s

Sensitivity - Adjustable, 3 levels

Recommended installation height - 2.4 m

Pet immunity
Weight — up to 20 kg
Height — up to 50 cm

Power supply
Battery: CR123A battery, 3 V
Battery life - Up to 5 years

Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12 - 300 s

Temperature sensor - Available

Operating temperature range - From −10°С to +40°С

Permissible humidity - Up to 75%

Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing - Available

Dimensions - 110 × 65 × 50 mm

Weight - 96 g

Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set
MotionProtect Plus motion detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User’s guide

Service life - 10 years



Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Rörelsedetektorer
Color Svart
