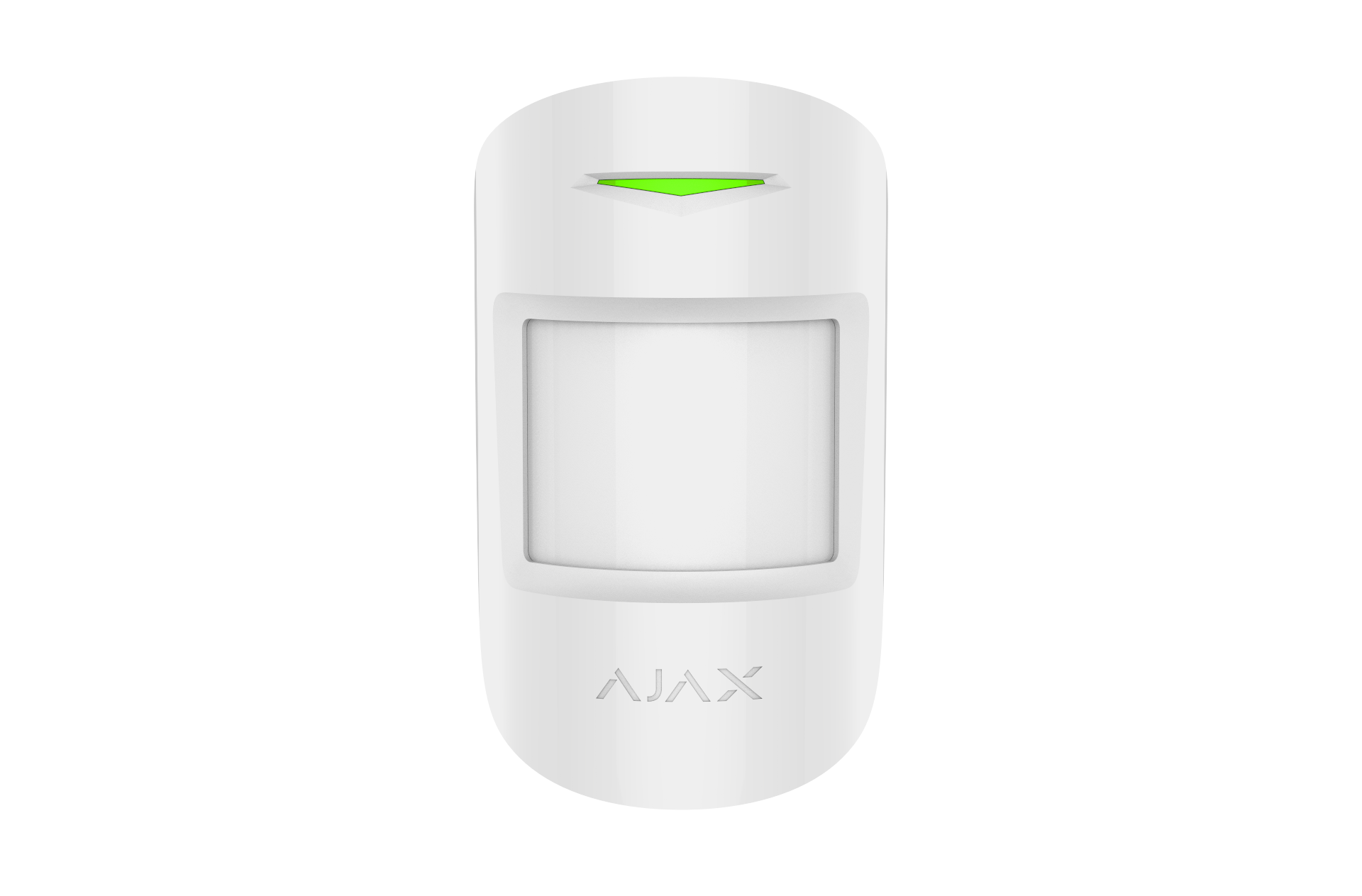

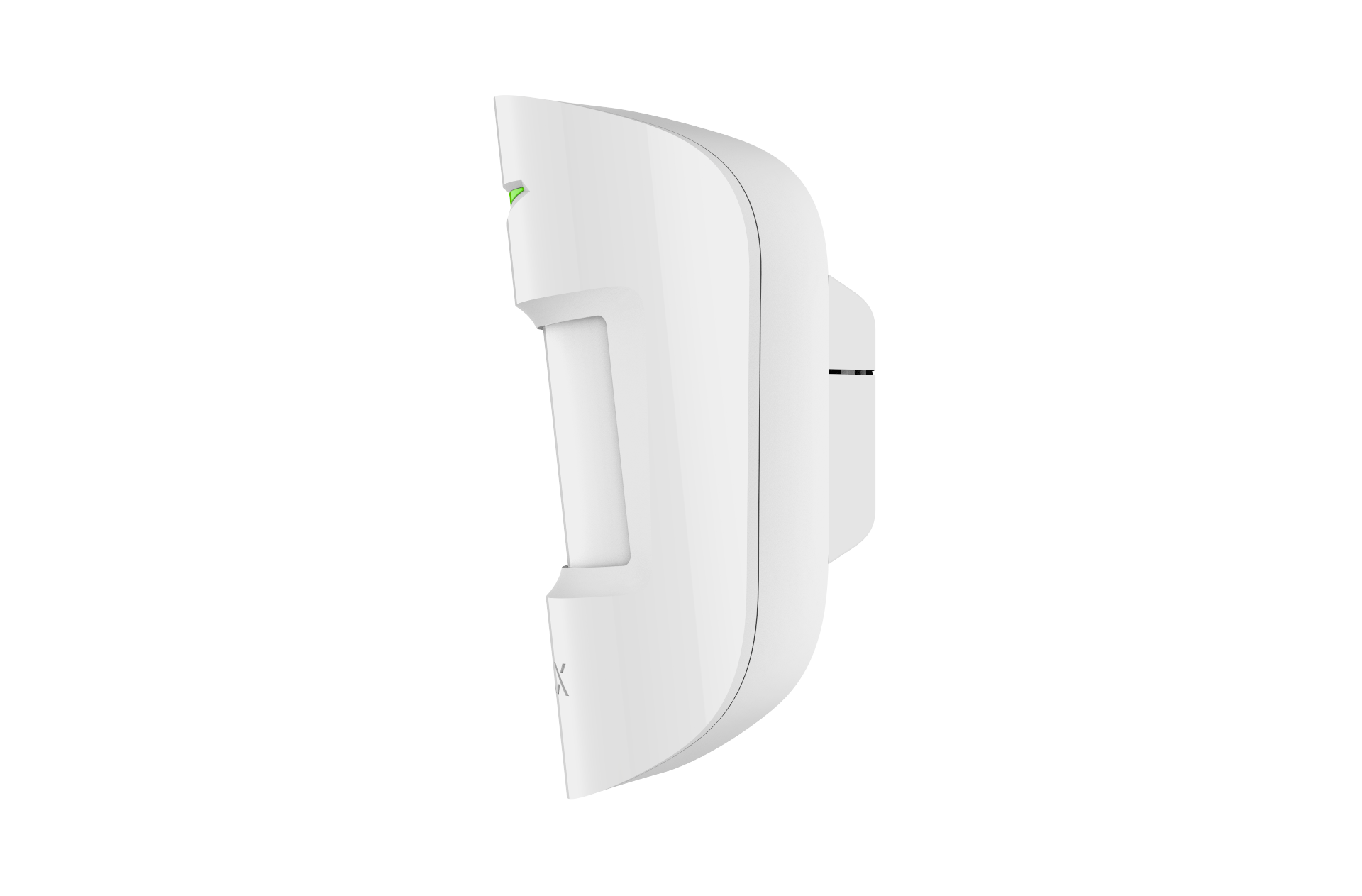

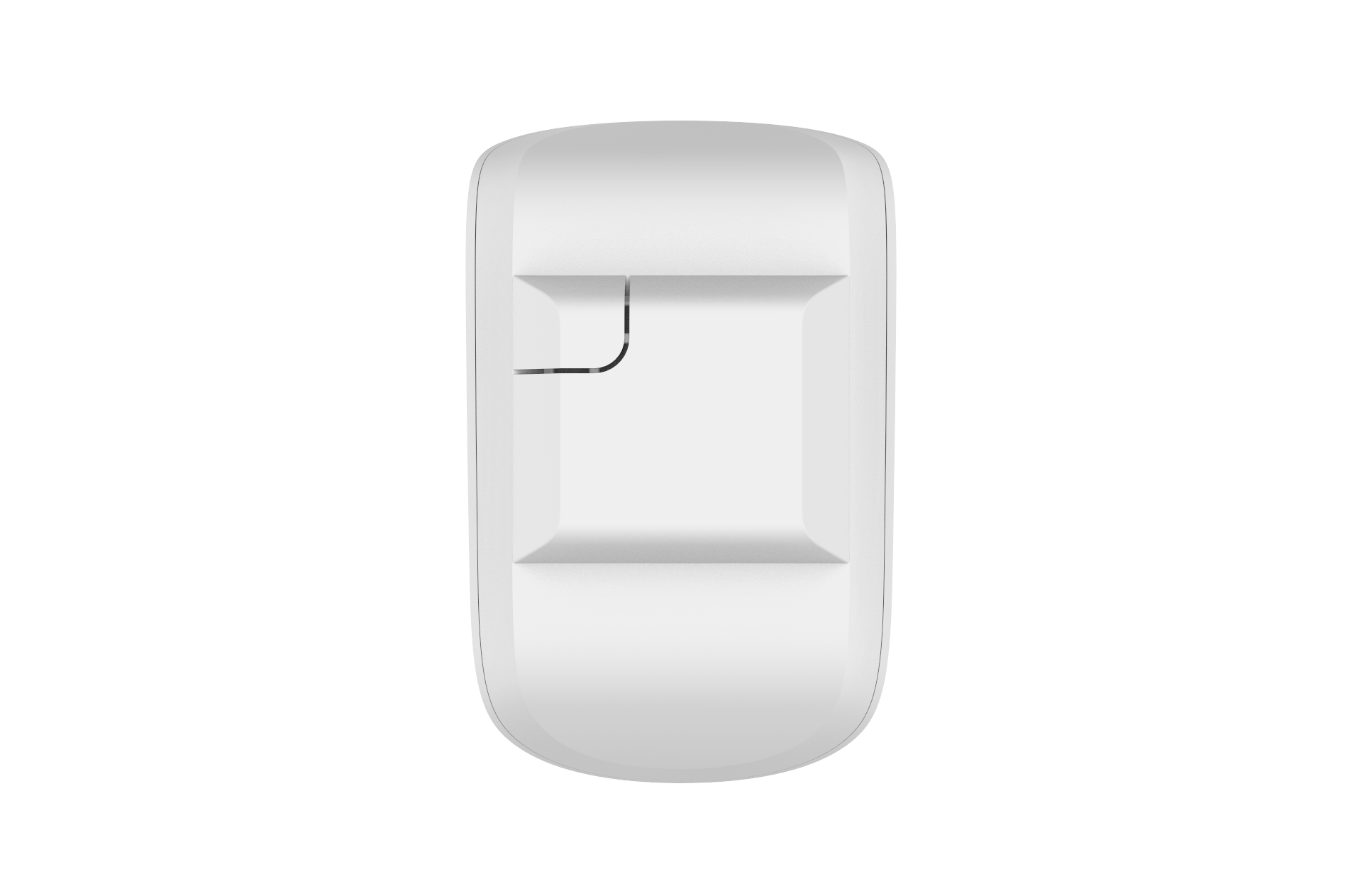

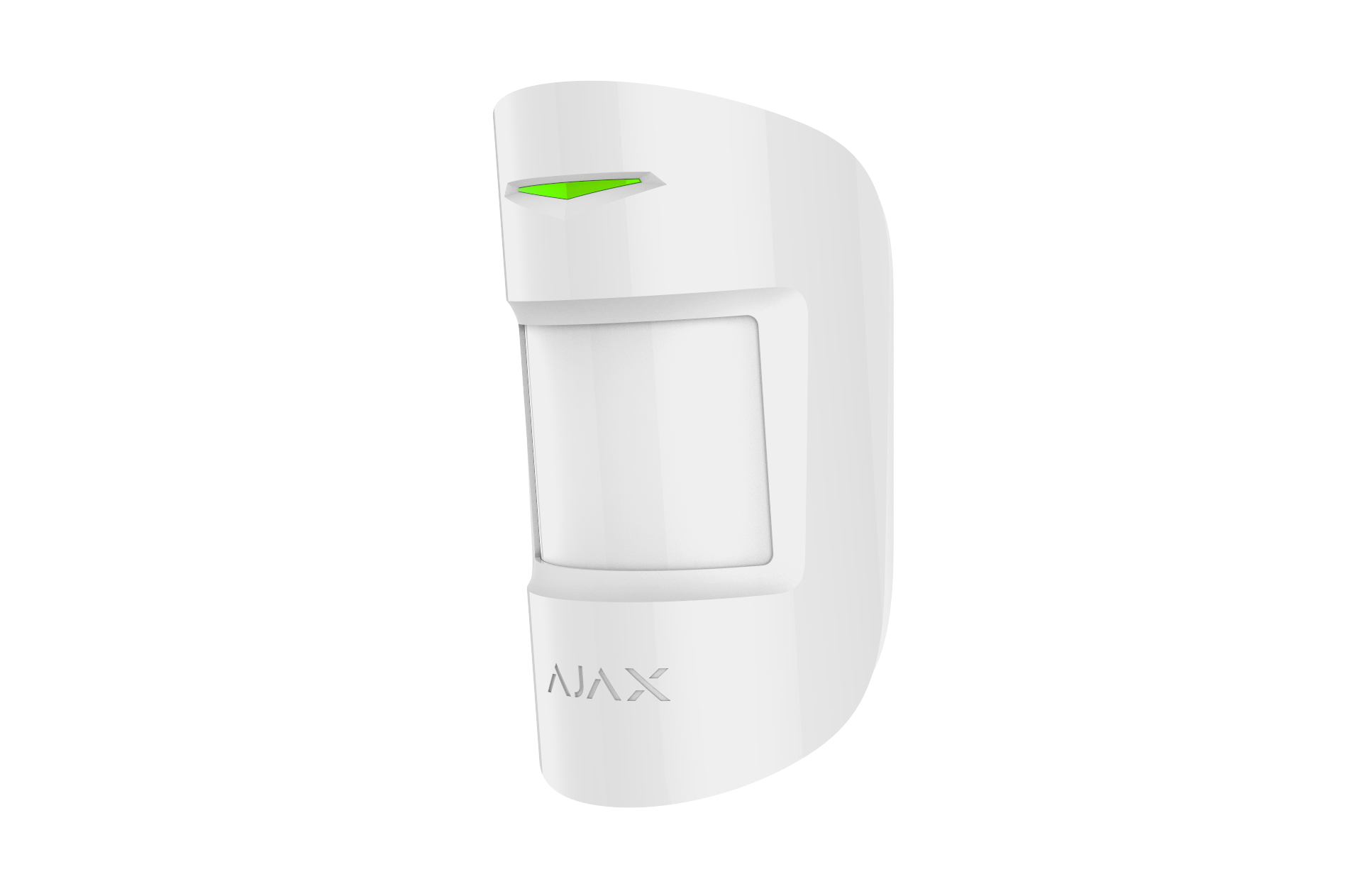

Ajax MotionProtect white

AX Rörelsedetektor (Vit)
Wireless motion detector that notifies the owner of the first signs of home or office intrusion
The detector is fastened to the wall in front of the doors and other places likely of intruder entry

The device detects human presence by IR level using a passive IR sensor
The data received is digitally processed in order to prevent false alarms

The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector
With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes

 Authentication to prevent forgery
 Jamming detection and communication channels encryption
 Tampering alarm
Tech specs
Classification - Electro-optical radio channel security detector

Type of detector - Wireless

Installation method - Indoors

Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge

Sensing element - PIR sensor

Alarm signal delivery time - 0.15 s

Motion detection distance - Up to 12 m

Detection angles
Horizontal — 88.5°
Vertical — 80°

Time for motion detection - From 0.3 to 2 m/s

Sensitivity - Adjustable, 3 levels

Recommended installation height - 2.4 m

Pet immunity
Weight — up to 20 kg
Height — up to 50 cm

Power supply
Battery: CR123A battery, 3 V
Battery life
Up to 5 years

Jeweller radio technology
Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s

Temperature sensor - Available

Operating temperature range - From -10°С to +40°С

Permissible humidity - Up to 75%

Protection against fraud
Jamming detection

Remote setting and testing - Available

Dimensions - 110 × 65 × 50 mm

Weight - 86 g

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set
MotionProtect motion detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User's guide

Service life - 10 years
Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Rörelsedetektorer
Color Vit
