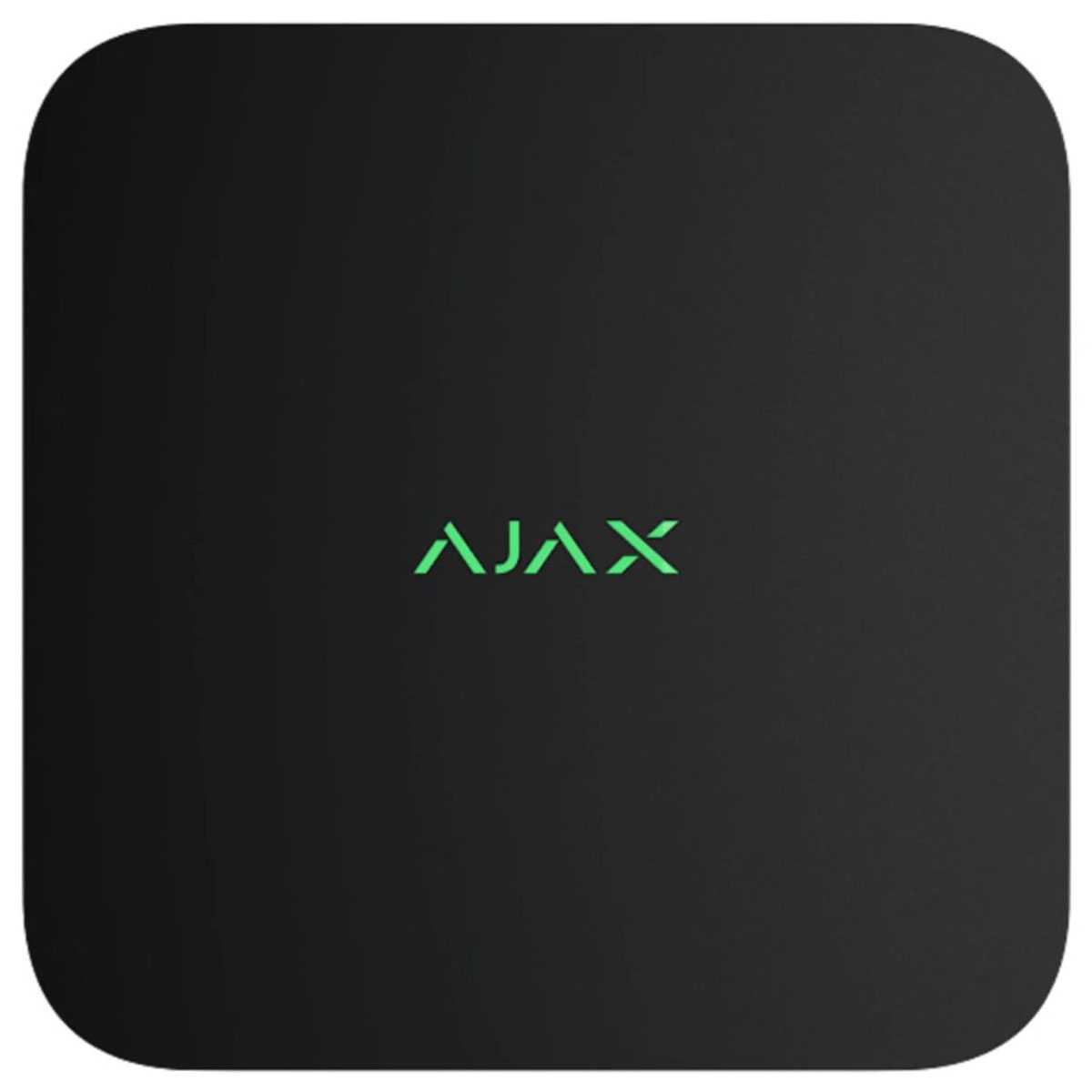

Ajax NVR (8ch) black
10070938
NVR (8-ch)
Network video recorder for 8 channels
Compatibility
Videostream
NVR models
8-channel
With up to 4K resolution (25/30 FPS).
IP cameras
- ONVIF (Profile S/T)
- RTSP
Storage
hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size)
HDD not included.
Decoding formats
H.265
H.264
H.264
Bandwidth
up to 100 Mbps
Recommendations
The device operating voltage is 110–240 V~.
NVR is designed for indoor installation only.
Communication channels
Ethernet
up to 100 Mbps
Bluetooth
BLE frequency band: 2.400–2.4835 GHz
To set up an Ethernet connection.
Radio signal power
2.5 mW (100 mW limit)
Key features
Motion detection
NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms.
In-app video management system
- Videowall that combines images from all connected cameras.
- Event filters.
- Timeline with smooth preview.
Visual verification of Ajax alarms
NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps.
Privacy
Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.
Power supply
Main
110–240 V~, 50/60 Hz, 0.6 A
Up to 24 W of mains power consumption.
Backup
CR2032 battery, 3 V
Only to power the system clock.
Sabotage protection
Tamper alarm
Notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Enclosure
Dimensions
251 × 251 × 51 mm
Weight
700 g
Without a hard drive.
Operating temperature range
from 0°C to +40°C
Operating humidity
up to 75%
Protection class
IP20
Category | Alarm |
---|---|
Sub-category | Ajax CCTV |
Brand | Ajax |
Alarm Type | Centralenheter |
Color | Svart |
