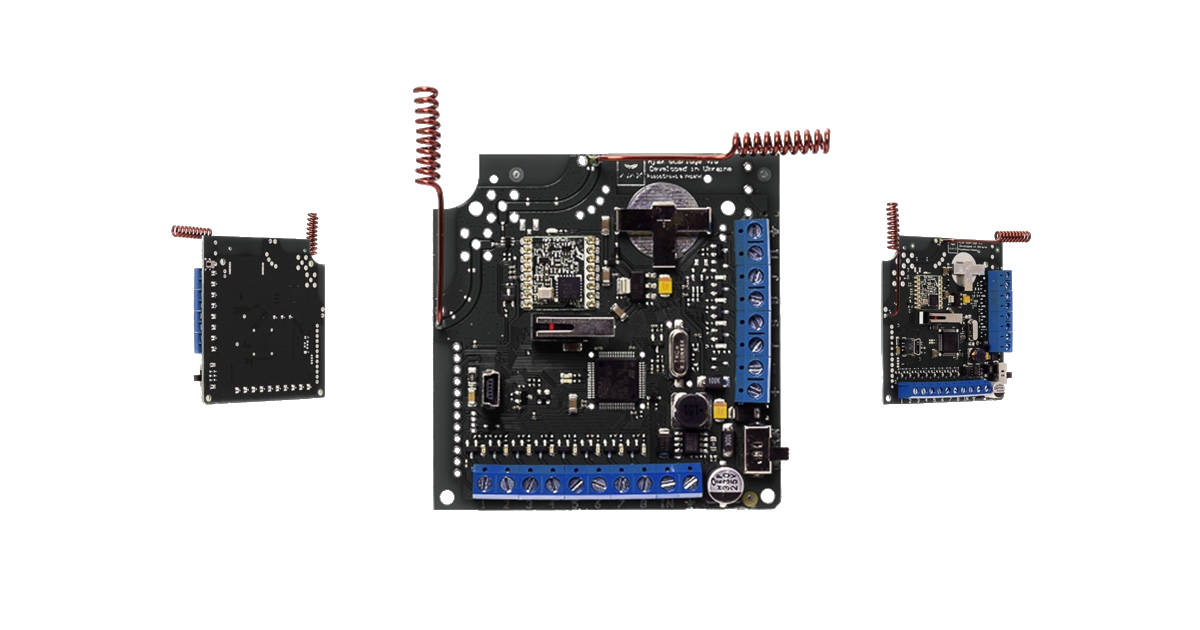

Ajax ocBridge Plus

AX Universalmottagare - PCB

Receiver module for connecting Ajax detectors to wired and hybrid security systems

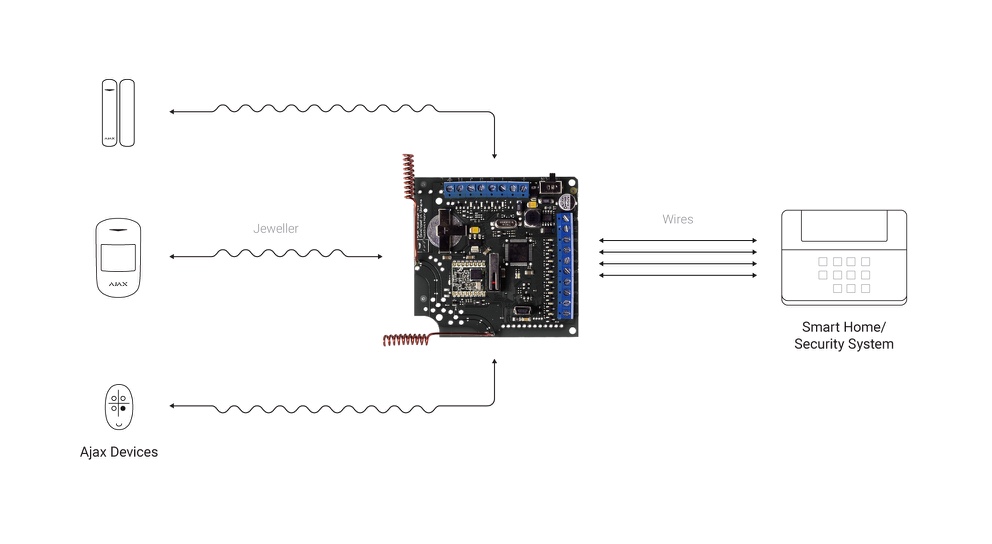

The device is integrated into any central unit with wired security areas

When the detector activates, the device closes or opens the transistor outputs
The wired central unit records the event and raises an alarm

The device allows setting up the detector, performing radio communication tests and detection areas tests using PC

The device is installed in the body of the wired central unit, in sealed cases or plastic boxes

 Authentication to prevent forgery

 Jamming detection and communication channels encryption

 Two-way communication

Tech specs
Classification - Receiver of wireless detectors

Installation method - Indoors

Compatibility - Wired and hybrid security systems

Number of security areas - 8

Number of service areas - 4

Loops - NO/NC, EOL, 2EOL

Maximum number of detectors - 99

Supported devices
MotionProtect Plus
FireProtect Plus

Alarm signal delivery time - 0.15 s

Power supply
Terminals +/ground
Power supply voltage
8 - 14 V DC
miniUSB — 5 V (only for set up)

Jeweller radio technology
Communication range with detectors — up to 2,000 m in an open space
Two-way communication with detectors
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s

Capability of external antenna connection - Yes

Software update feature - Yes

Operating temperature range - From –10°С to +40°С

Permissible humidity - Up to 90%

Protection against fraud
Jamming detection

Setting up and testing - Via configurator for PC

Current firmware verson - 4.50.0

Interface - miniUSB

Dimensions - 95 × 92 × 18 mm

Weight - 139 g

Replacement and repair within 24 months of the date of sale

Complete set
ocBridge Plus
Installation kit
User's guide

Service life - 10 years
