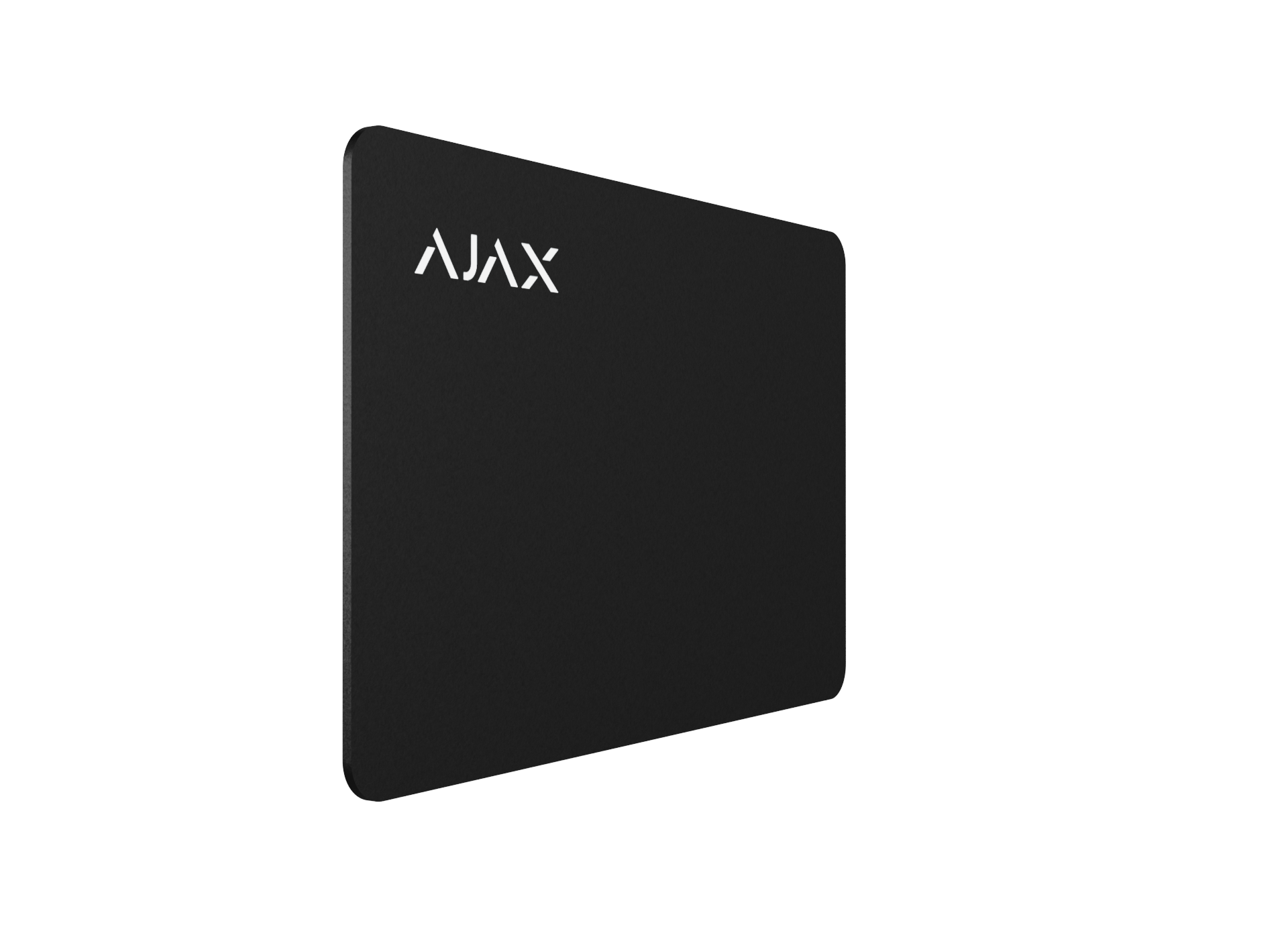

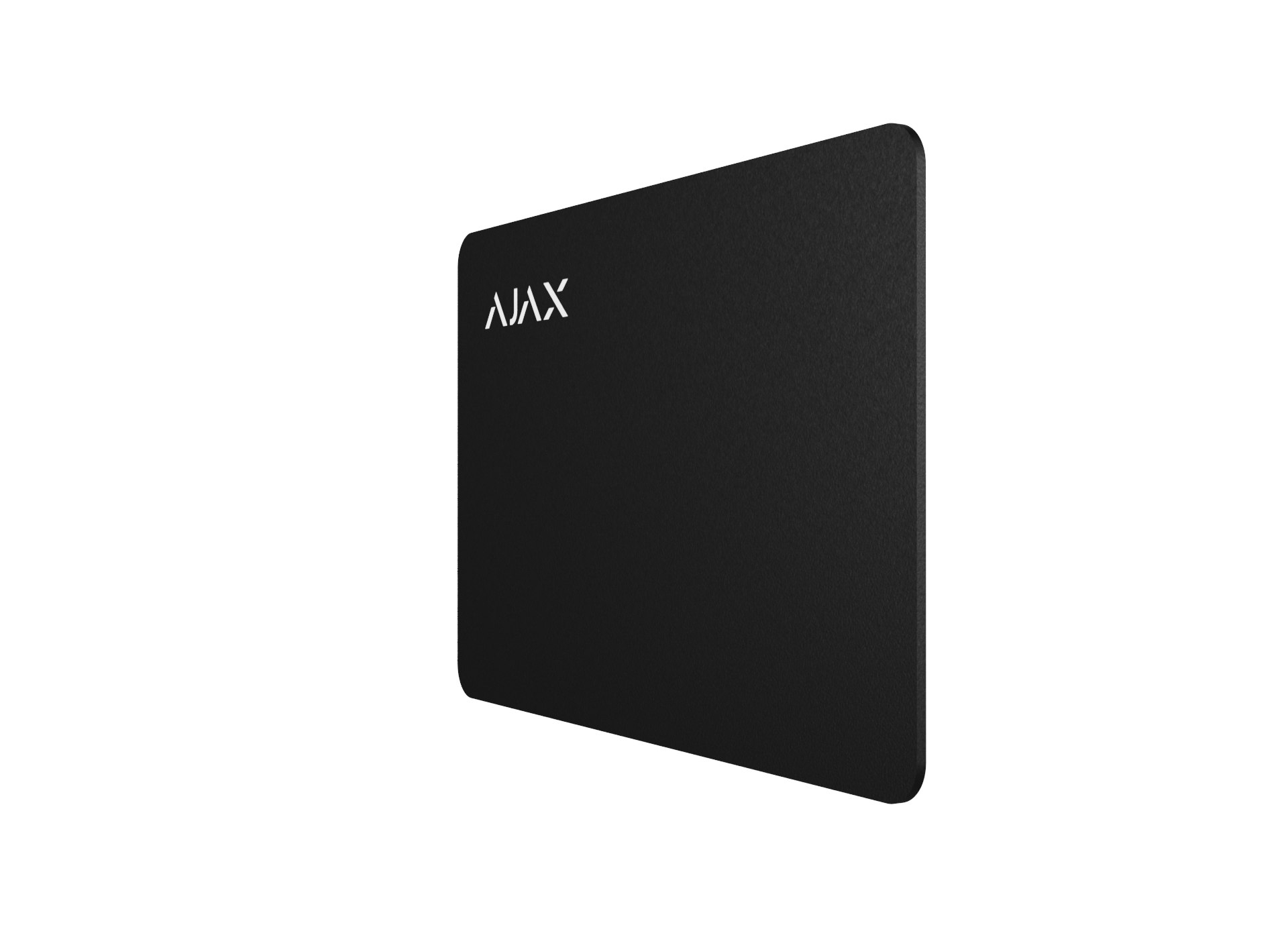

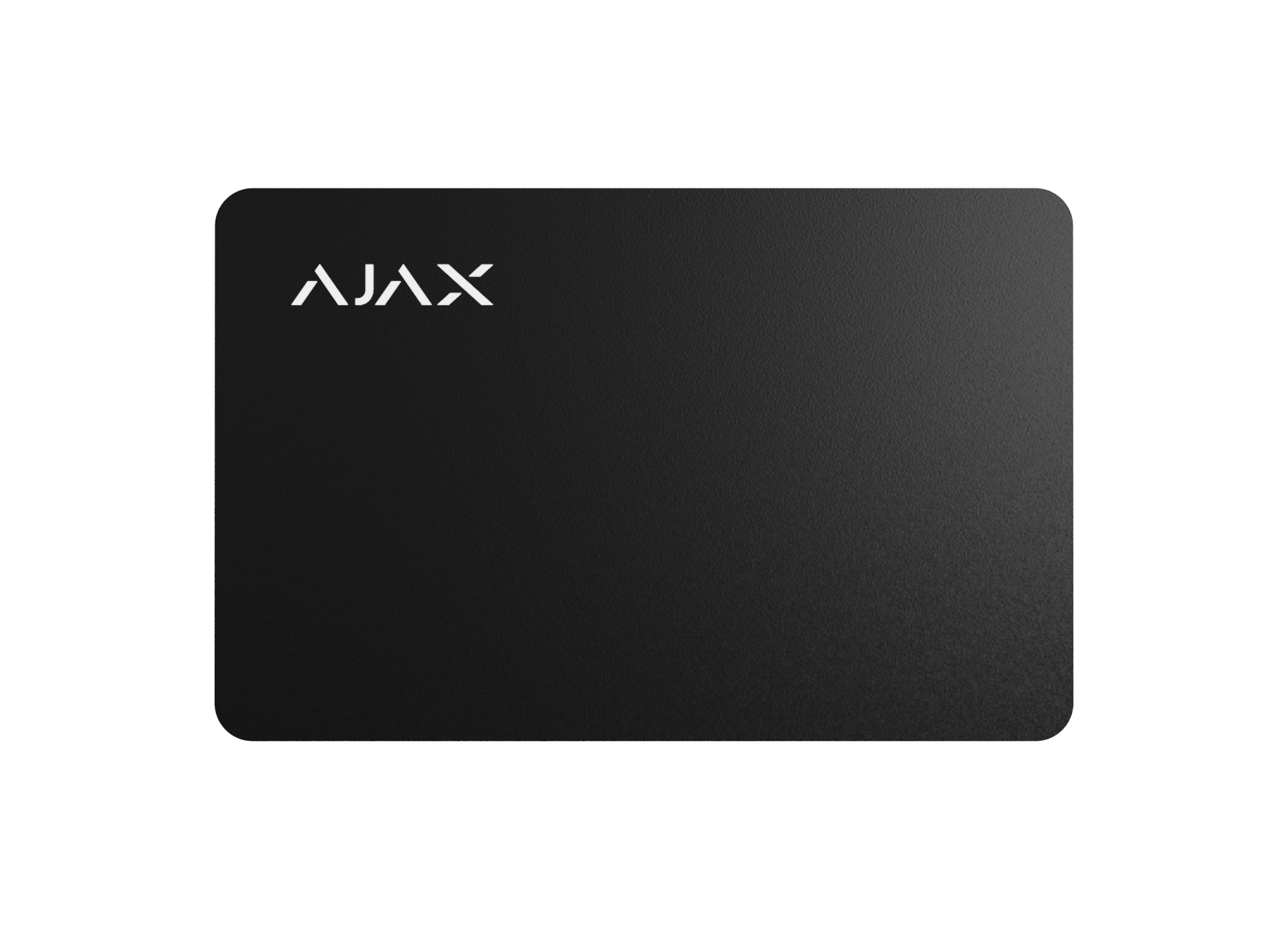

Ajax Pass black

10023502
AX Passerkort (Svart) 1 st

Encrypted contactless card for keypad
To disarm the security system, just present Pass to the reader on the keypad
This copy-protected card allows you to manage security modes without a password, user account and access to the Ajax app
Top-tier data protection
To identify users quickly and securely, KeyPad Plus features the DESFire® technology
It is the best-in-class contactless solution to identify the user by card or key fob
DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection
This technology is also used in transportation systems of European capitals and access systems at NASA
One Pass card can be connected to 13 hubs
In the app, you can set the name and access permissions for each card
You always know who and when changed the security mode — every action is recorded in the event log
A system administrator can revoke or restrict Pass access permissions in real time

Tech specs
Communication technology - DESFire®

Operating standard - ISO 14443-А (13.56 MHz)

Encryption - +

Authentication - +

Protection from signal interception - +

Possibility to assign the user - +

Maximum number of bound hubs - Up to 13

Compatibility - KeyPad Plus

Operating temperature range - From –10°C to +40°C

Operating humidity - Up to 75%

Overall dimensions - 86 × 54 × 0.8 mm

Weight - 6 g

Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Tillbehör
Color Svart
