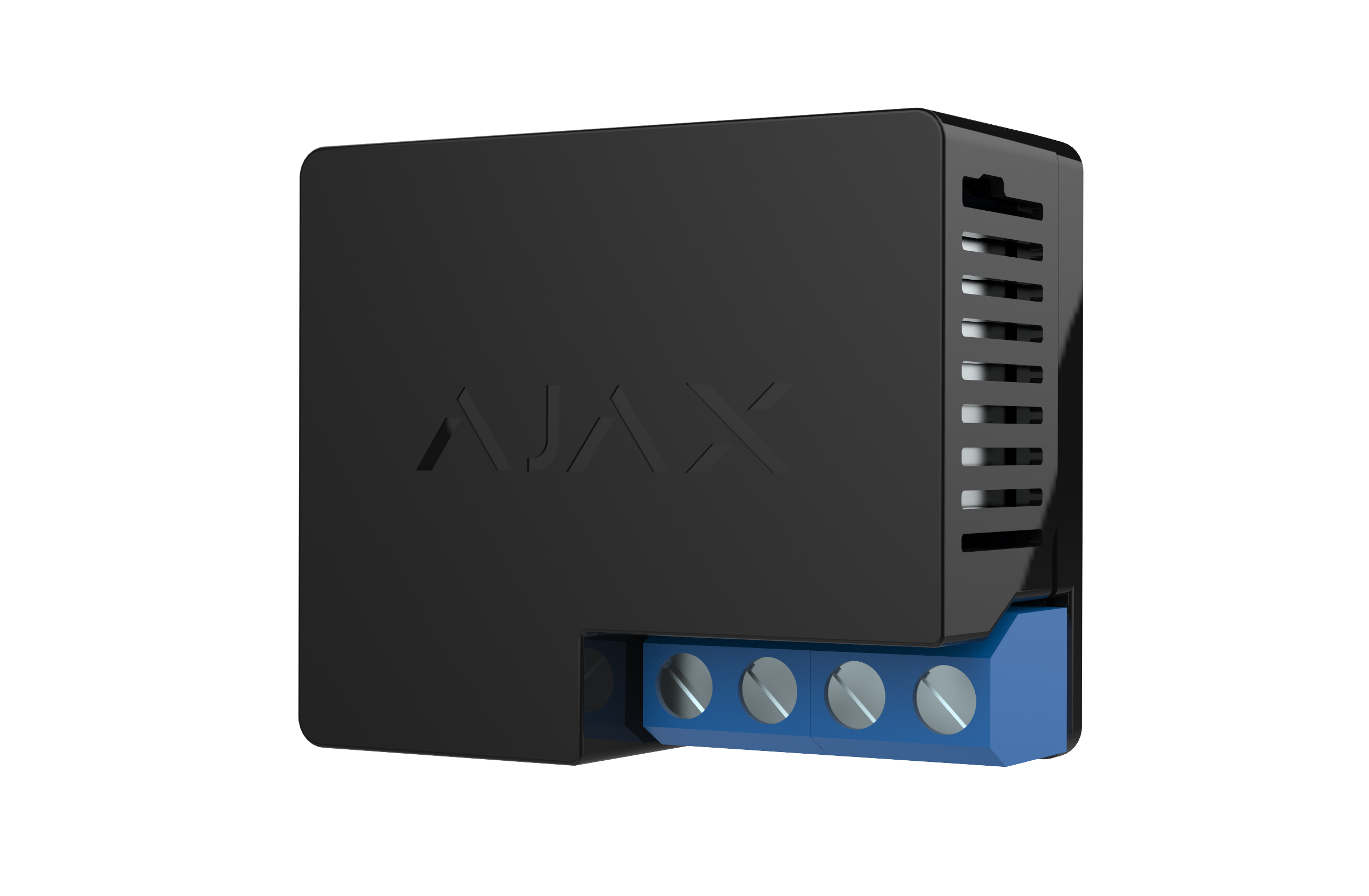

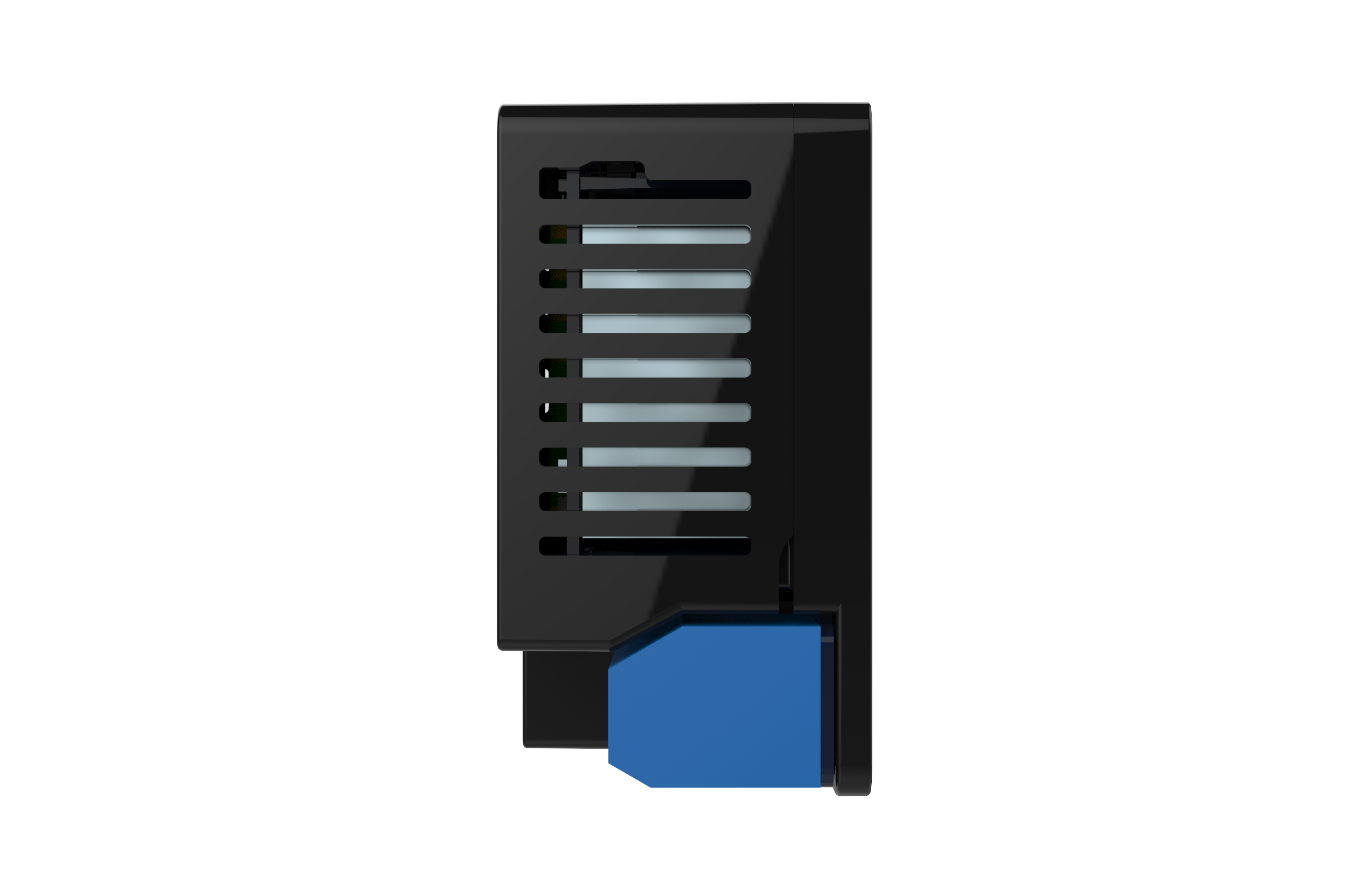

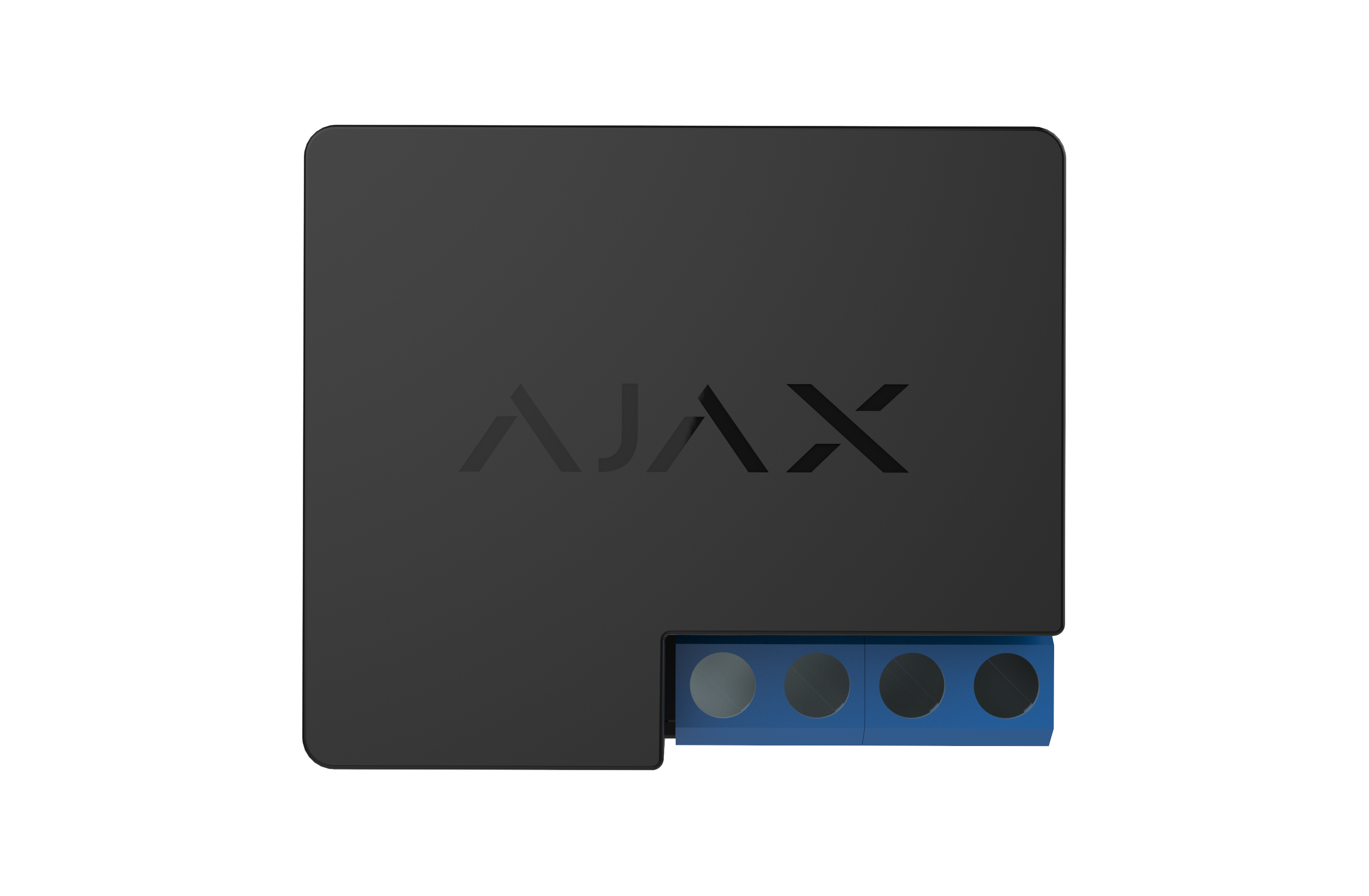

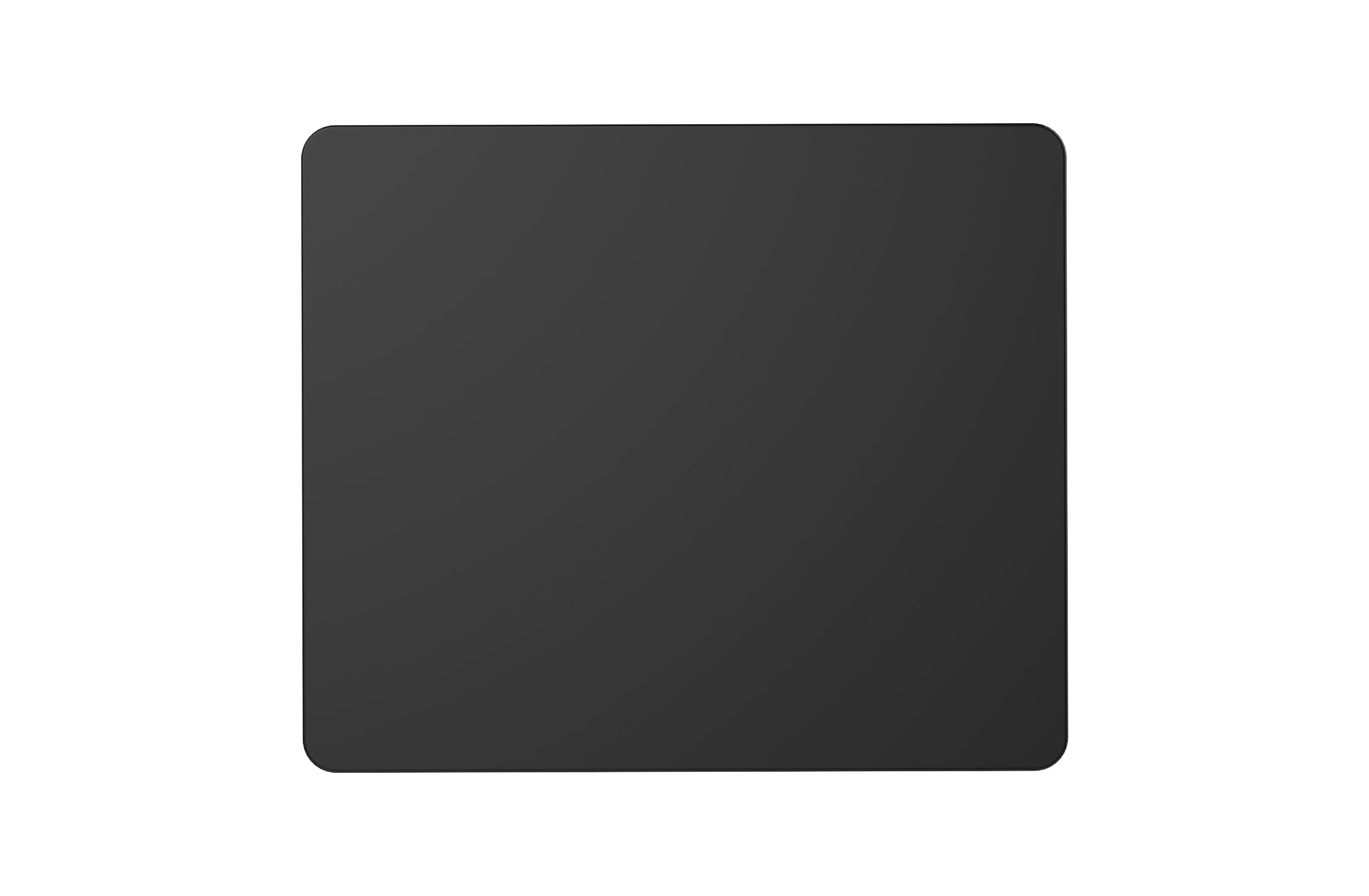

Ajax Relay

10011035
Settings versatility and low power consumption make Relay a universal tool for equipment control.
Dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks
There are bistable and pulse modes. The relay can be easily connected to a power supply unit paired with a backup battery

 Pulse 0.5–255 seconds
 Power supply 7–24 V DC
 Dry contact
Tech specs
Classification - Radio channel relay unit

Device type - Wireless

Installation method - Into electric switchboard, junction box

Compatibility - Operates with all Ajax hubs, and range extenders

Actuating element - Electromagnetic relay

Relay service life - 200,000 switch-ons

Voltage protection - Max — 36.5 V, min — 6.5 V

Maximum load current - 5A at 36V DC, 13A at 230V AC

Maximum current protection - No

Maximum temperature protection - 65°C at the place of installation

Electric power meter function - No

Energy consumption parameter check - Voltage

Power supply - 7 - 24 V (DC only)

Operation modes - Impulse

Bistable - Contact state

Normally open
Normally closed
Adjustable pulse duration
0.5–255 sec
Jeweller radio technology
Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device scanning period — 12 - 300 s

Operating temperature range - From 0°С to +64°С

Permissible humidity - Up to 75%

Protection class of body:
IP20
Anti-sabotage
Protection against fraud
Jamming detection
Remote setting and testing

Dimensions - 39 × 33 × 18 mm

Weight - 25 g

Warranty - Replacement and repair within 24 months of the date of sale

Complete set:
Relay
Installation set
User's guide

Service life - 10 years
