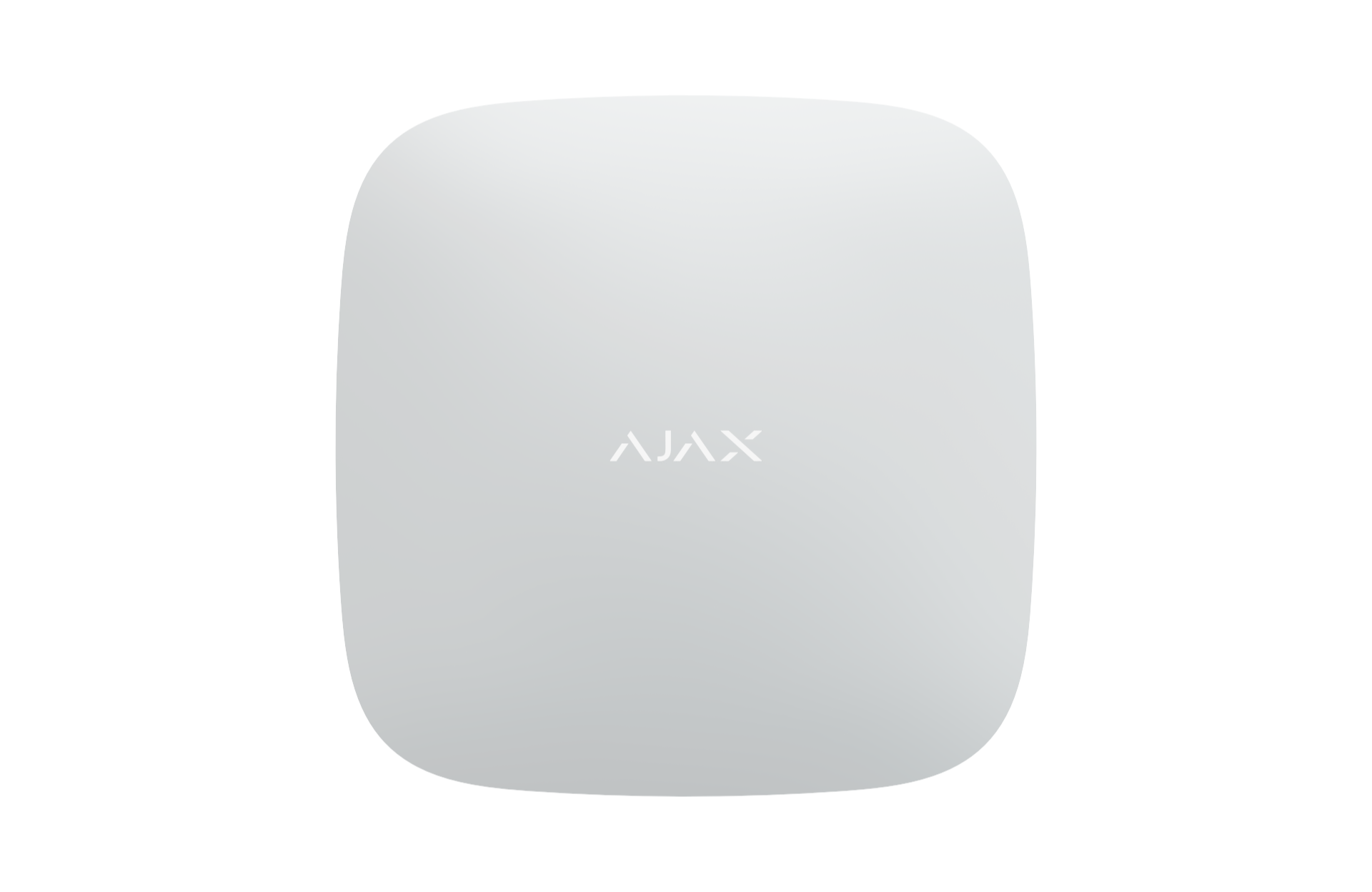

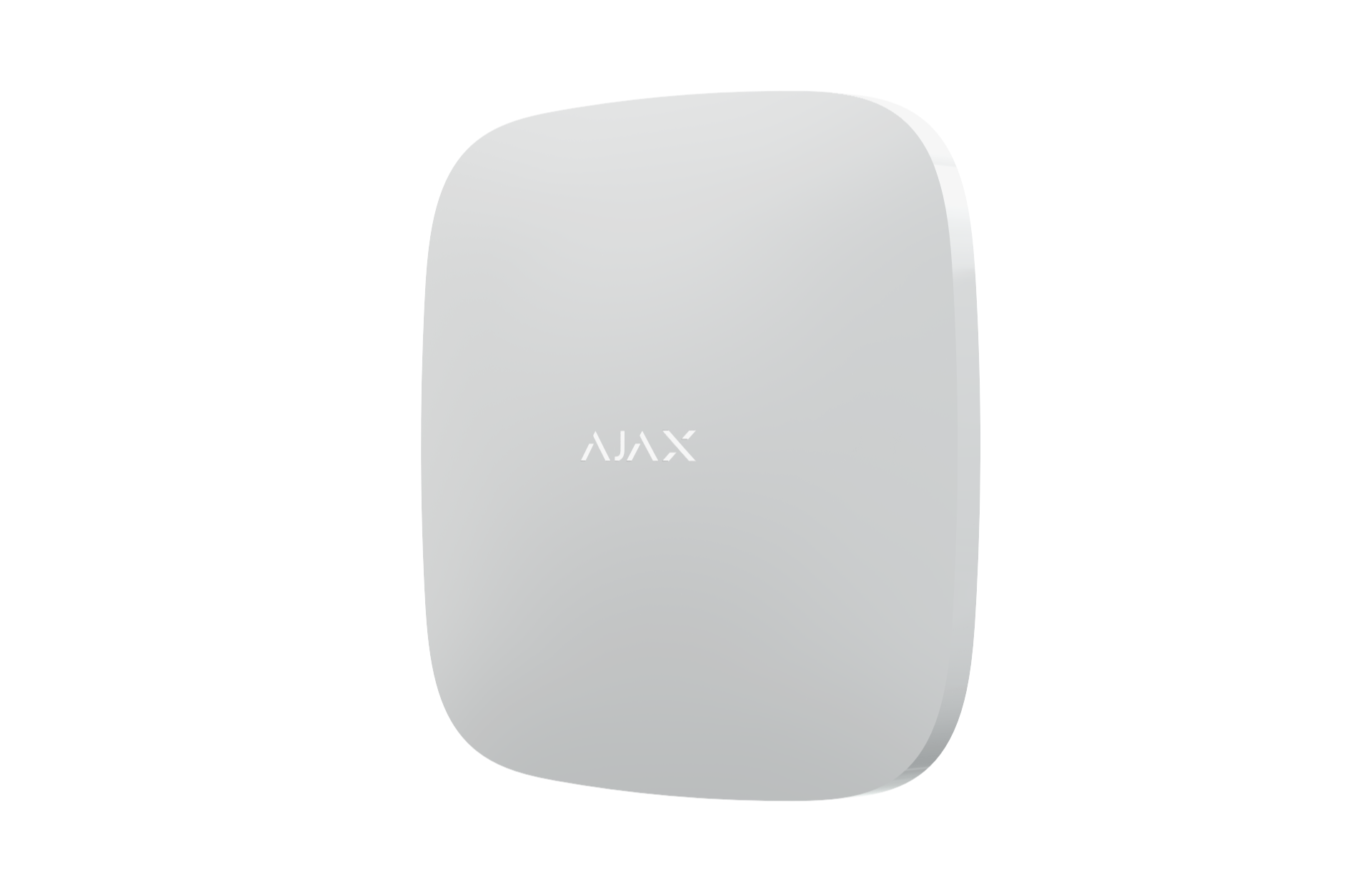

Ajax ReX 2 white

Radio signal range extender supporting photo verification of alarms
Range extenders expand the boundaries of the protected area and give even more freedom to place security system devices.

By connecting all or part of the devices to ReX 2, you will ensure the security and automation of a business centre,
estate, warehouse complex, or a large production facility

Five range extenders can operate within the Ajax system to expand the coverage of the radio network up to 35 km2
Events and alarms are transmitted instantly, and the first photo verification snapshot is delivered to a monitoring station and users in just 13 seconds

ReX 2 works with MotionCam and MotionCam Outdoor motion detectors. When triggered, they take a series of shots, helping to evaluate the events at a facility
Visual verification helps to instantly ascertain the situation, saving users from concerns and security companies from unnecessary patrol dispatches

To ensure reliable communications, we have equipped ReX 2 with four antennas and support of two proprietary radio protocols: Jeweller and Wings
Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images
Ajax two-way radio communication uses frames to synchronize device communication sessions, authentication to prevent fraud, and encryption to protect against data theft

Tech specs
Classification - Radio channel range extender

Device type - Wireless

Installation method - Indoors

Compatibility - Hub 2 and Hub 2 Plus with OS Malevich version 2.12 and higher

Alarm signal delivery time - 0.3 seconds

Maximum connected devices (in a system with one range extender)
Hub 2 — up to 99
Hub 2 Plus — up to 199
Number of range extenders connected to the hub - 5

Operating system - OS Malevich

Power supply
110−240 VAC or 12 V from 12V PSU for Hub 2/Hub 2 Plus/ReX 2
Built-in backup battery Li-Ion 2 Ah
Up to 38 hours of backup battery life

Jeweller radio protocol
Communication range with the hub — up to 1,700 m in open space
Communication range with detectors — up to 1,700 m in open space, depending on the detector model
Two-sided communication between devices
Operating frequencies — 868.0–868.6 MHz
Auto-regulated radio signal power: ≤ 25 mW
Blocking encryption based on the AES algorithm
Detector ping interval — 12–300 seconds
Frequency hopping

Operating temperature range - From −10°C to +40°C

Operating humidity - Up to 75%

Anti-sabotage
Fraud protection
Jamming notification
Tamper-resistant

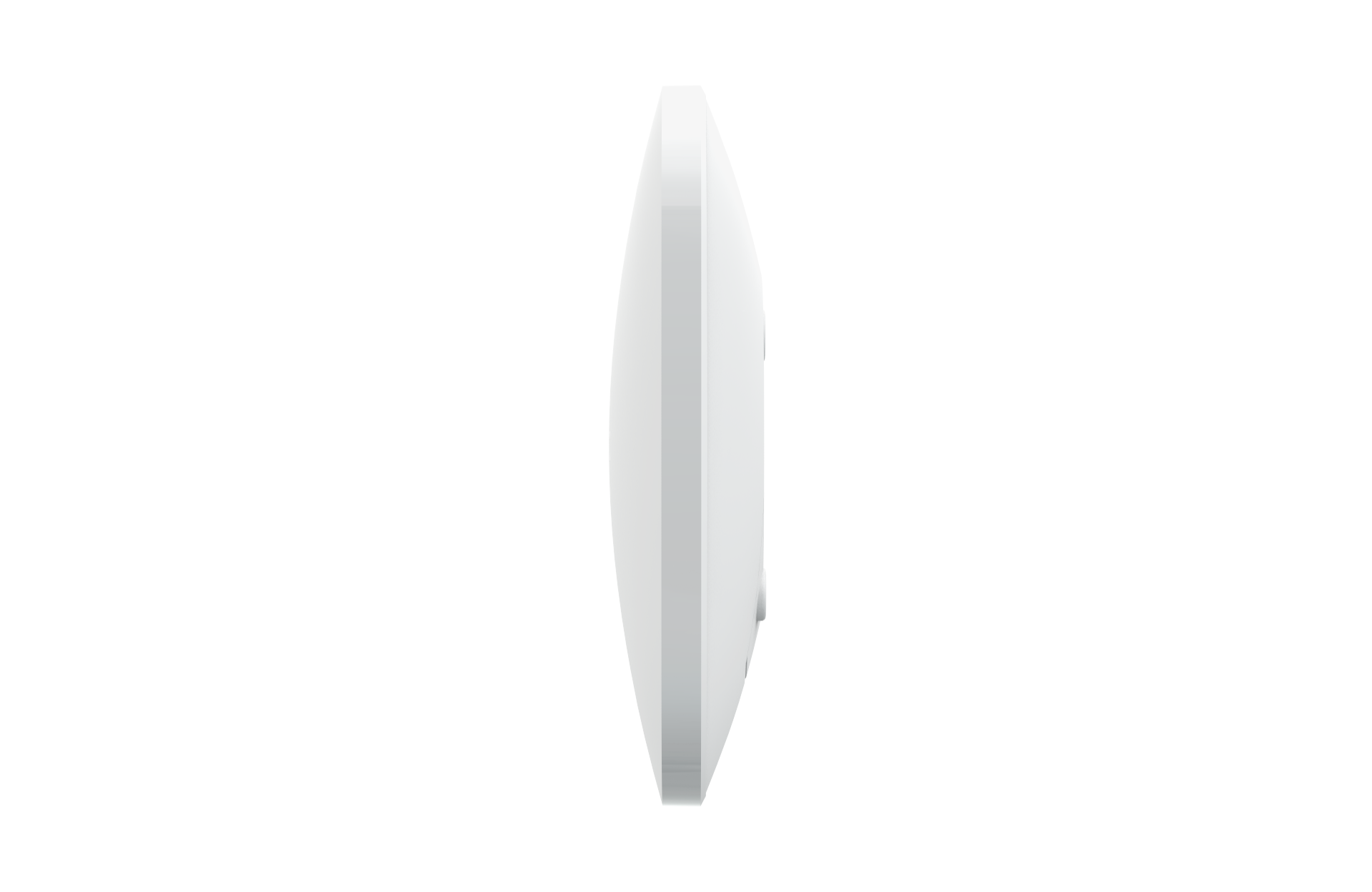

Dimensions - 163 × 163 × 36 mm

Weight - 330 g

Warranty - 24 months from the date of sale

Complete set
ReX 2

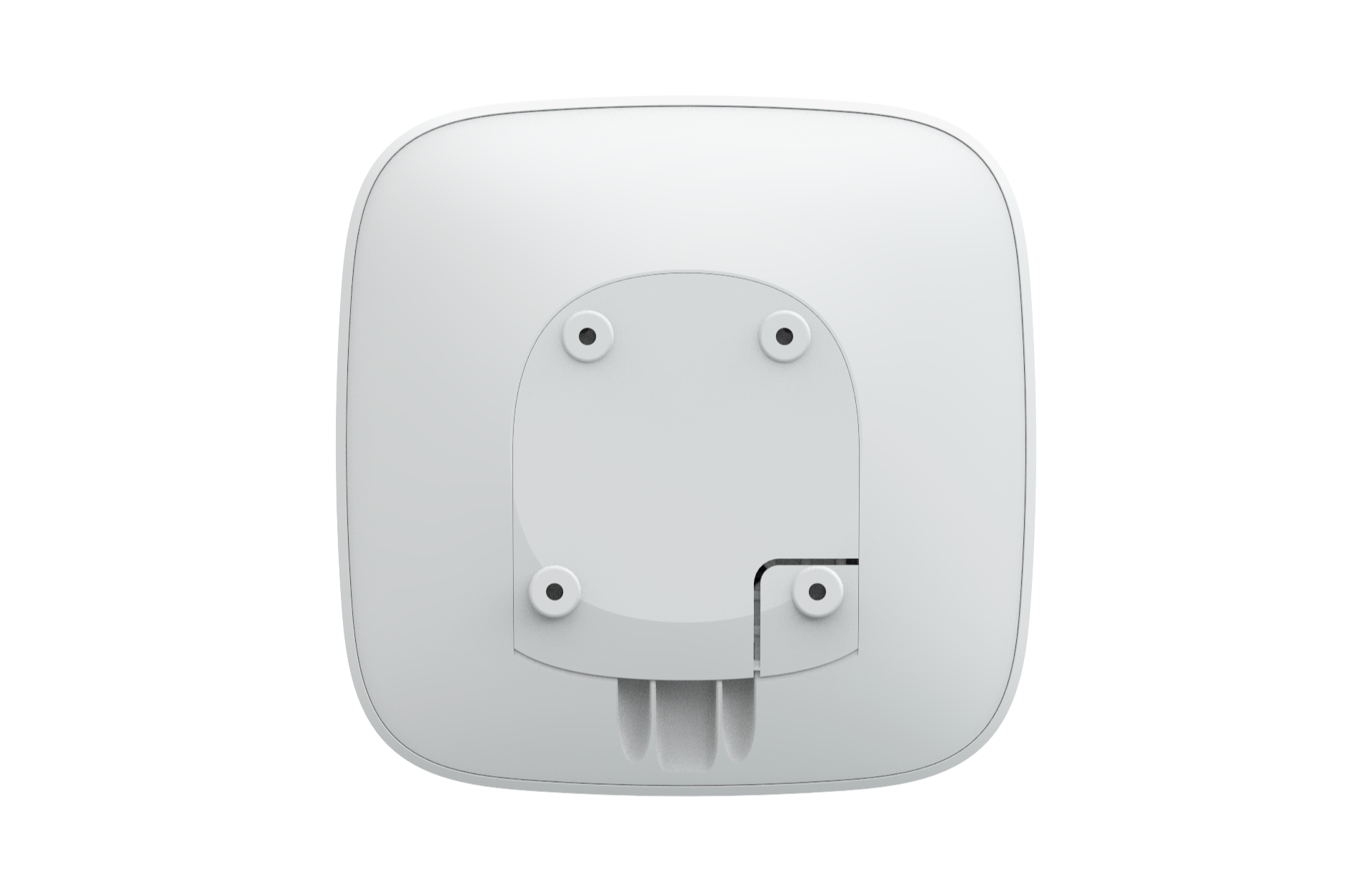

SmartBracket mounting panel
Power cable
Installation kit
Quick start guide

Service life - 10 years
