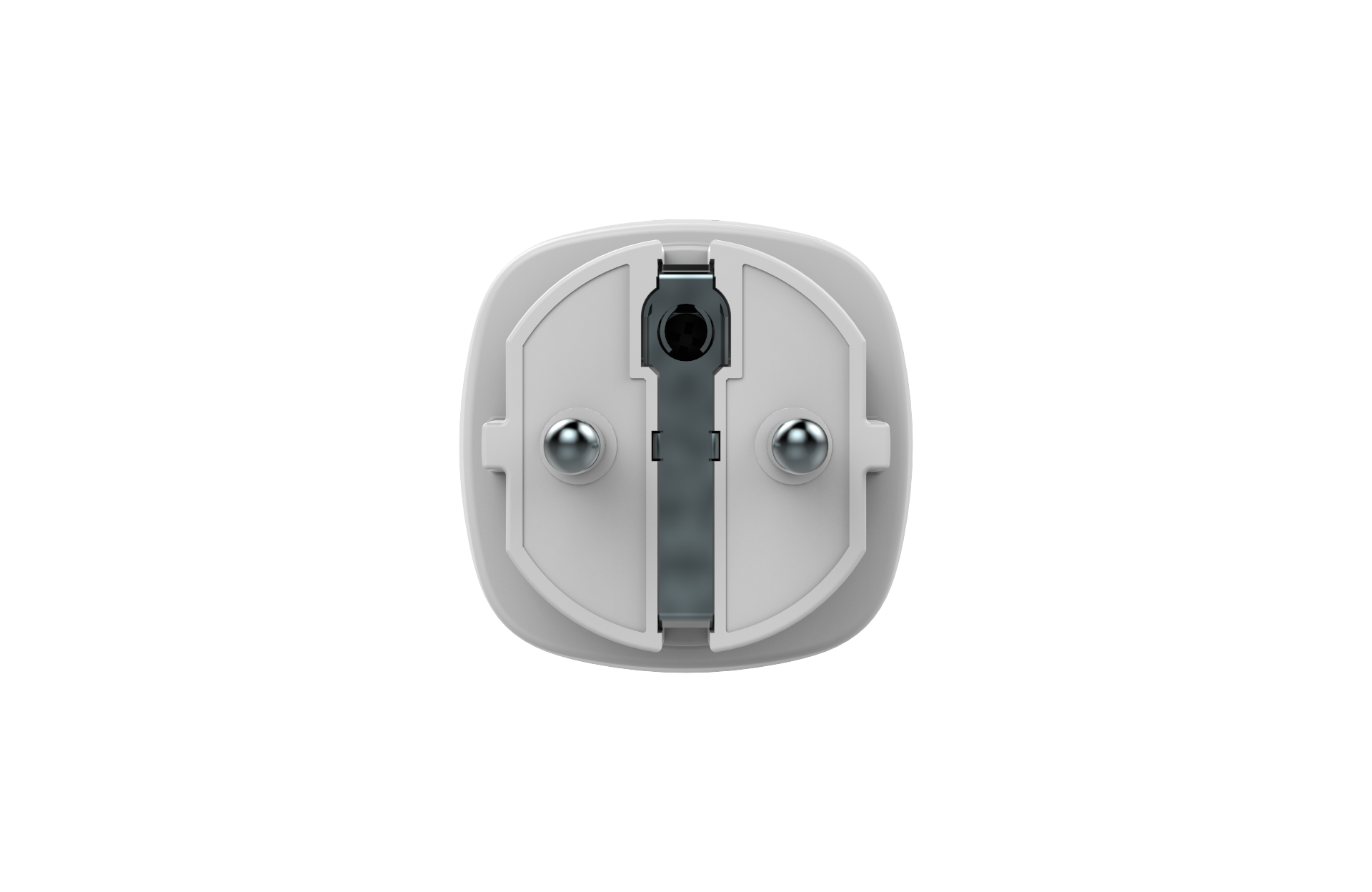

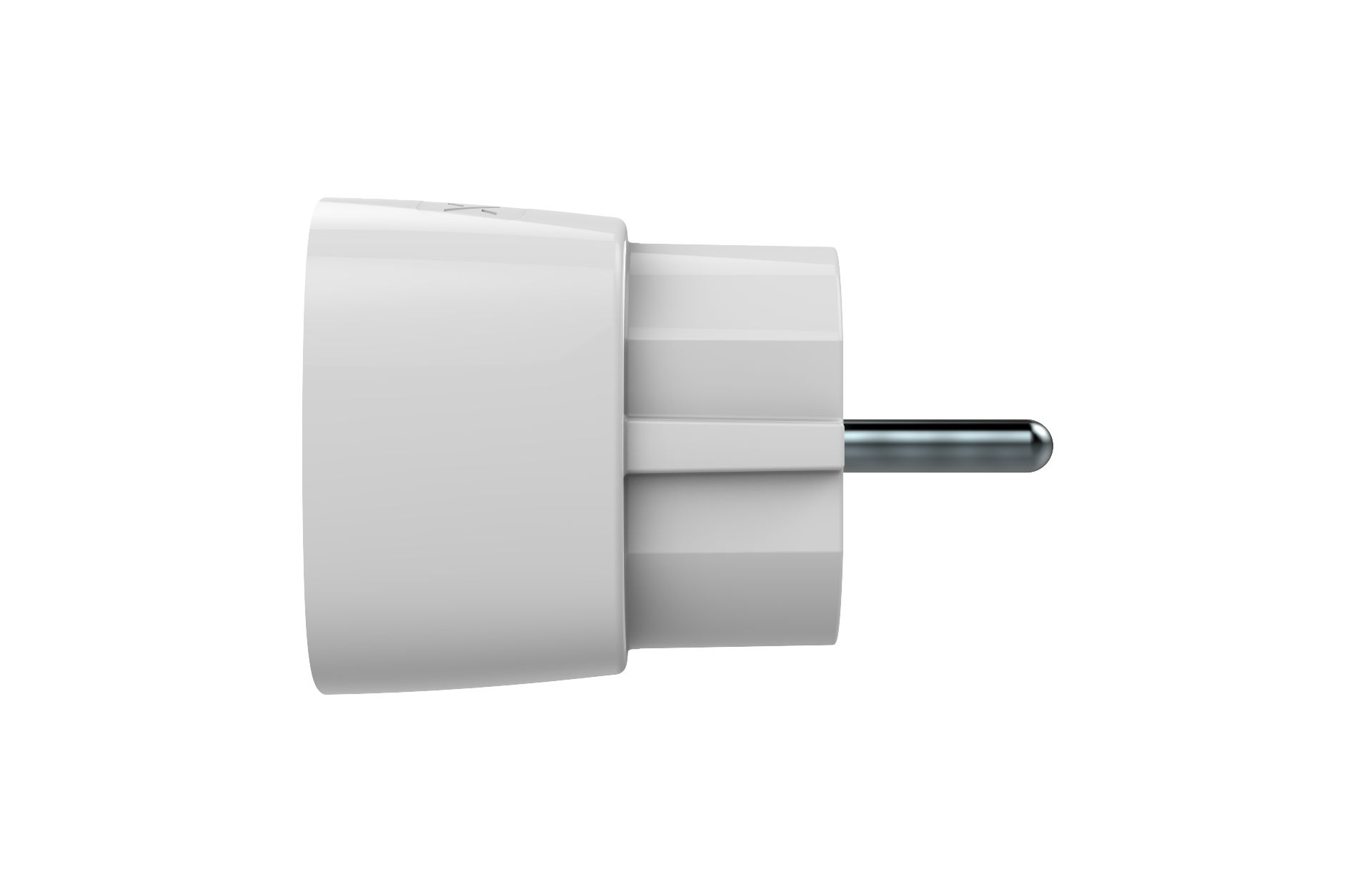

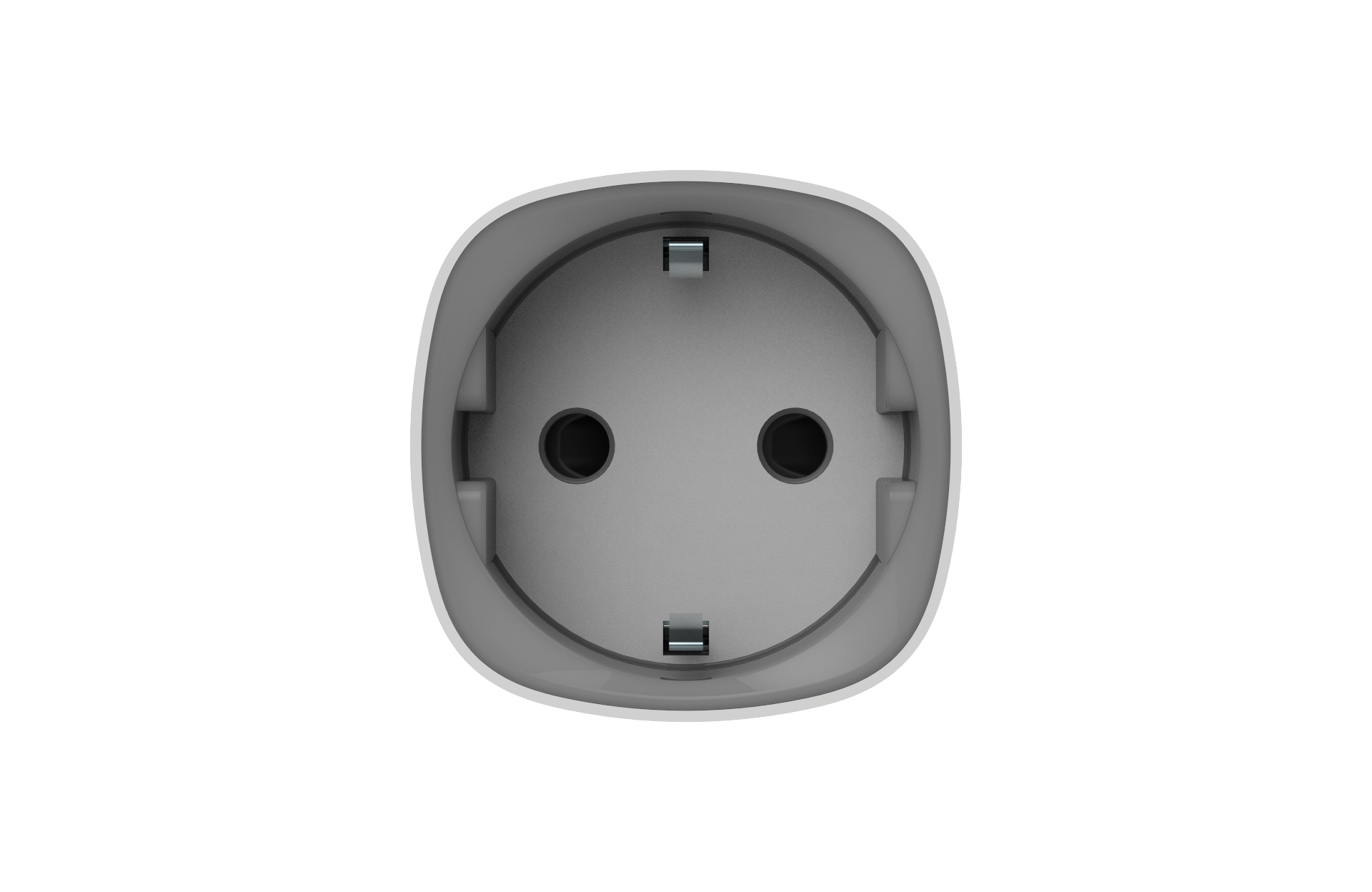

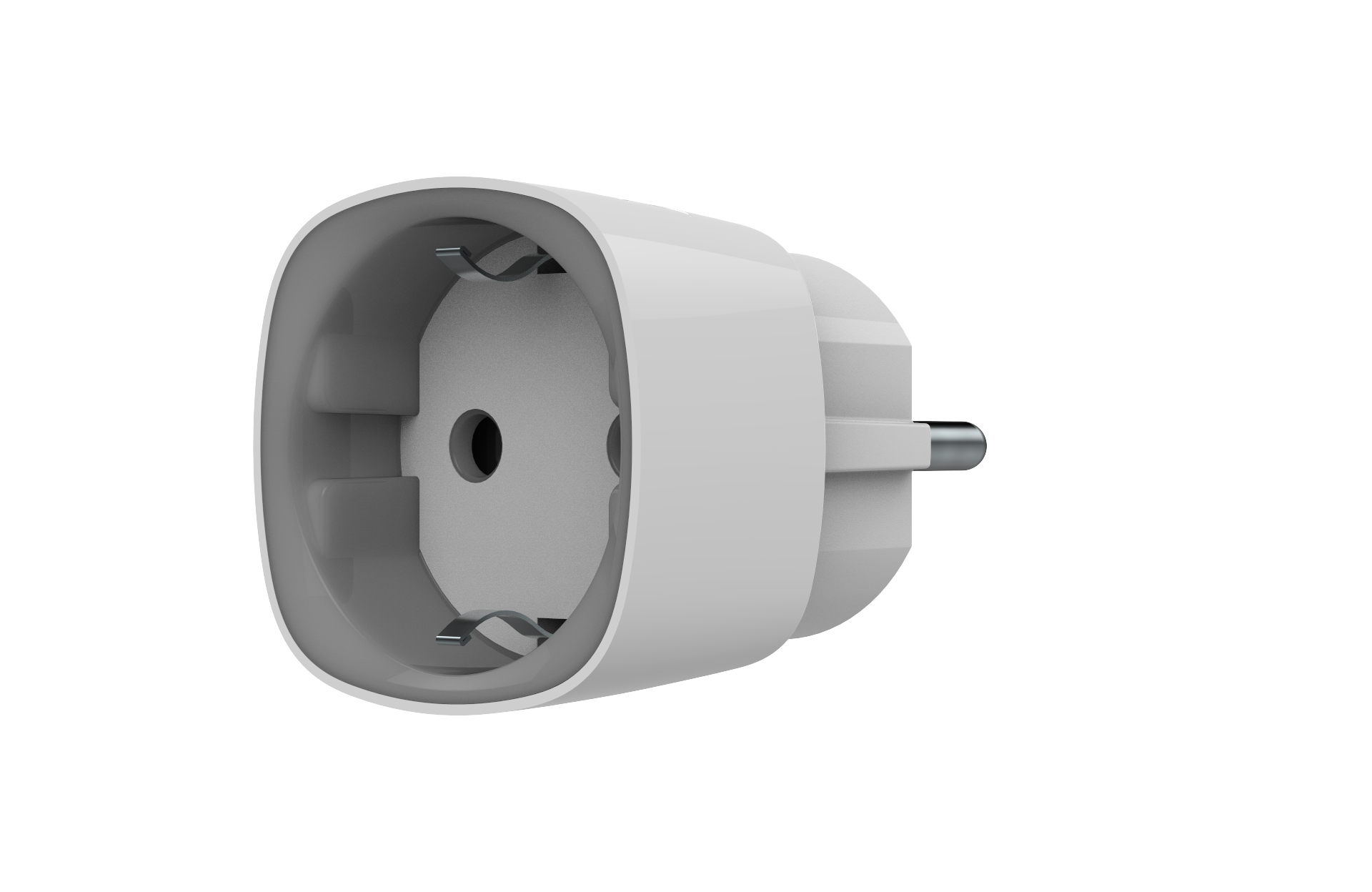

Ajax Socket white

10013305
AX Smartplug (Vit)

Everything is ready for you by the time you get home
You will come back home to enjoy comfortable climate and cozy atmosphere all year round
Turn on your heating devices during winter and air conditioner during summer
Start your air humidifier and heat water for your bath
With only a few taps in the application on your way home
No more hassles and worries
Socket turns on the kettle and reboots the router without you having to leave your couch
Activate the night mode at bedtime, and, as if by magic, the lights in the house will go out and appliances will be turned off

 Turns on/off devices on command via application

 Monitors electric power consumption

 Protects devices from overload and short circuit

Tech specs

Classification - Radio channel relay unit

Device type - Wireless

Installation method - In power outlet

Compatibility - Operates with all Ajax hubs, and range extenders

Actuating element - Electromagnetic relay

Voltage and type of external power supply - 110 - 230 V, 50/60 Hz

Voltage protection for 230 V mains - Yes, 184 - 253 V

Relay service life - 200,000 switch-ons

Maximum load current - 11 A (continuous), 13 A (up to 5 s)

Maximum current protection - Yes, 11 A if the protection is turned on, up to 13 A if the protection is turned off

Maximum temperature protection - Yes, +85°С. The socket turns off automatically if the temperature is exceeded

Electric shock protection class - Class I (with grounding terminal)

Electric power meter feature - Available

Energy consumption parameter check - Current, voltage, power consumption

Alarm signal delivery time - 0.15 s

Load indicator - Available

Output power (resistive load at 230 V) - Up to 2.5 kW

Average energy consumption of the device on standby - Less than 1 W

Operation modes - Impulse (firmware version 5.54.1.0 or higher. Manufacture date from March 4, 2020)

Bistable - Contact state (firmware version 5.54.1.0 or higher)

Normally open
Normally closed

LED indication - Adjustable

Adjustable pulse duration (firmware version 5.54.1.0 or higher) - 0.5–255 sec

Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector scanning period — 12 - 300 s

Operating temperature range - 0°С to +40°С

Permissible humidity - Up to 75%

Protection class of body - IP20

Anti-sabotage
Protection against fraud
Jamming detection
Remote setting and testing

Dimensions - 65.5 × 45 × 45 mm

Weight - 58 g

Warranty - Replacement and repair within 24 months of the date of sale

Service life - 10 years

Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Tillbehör
Color Vit
