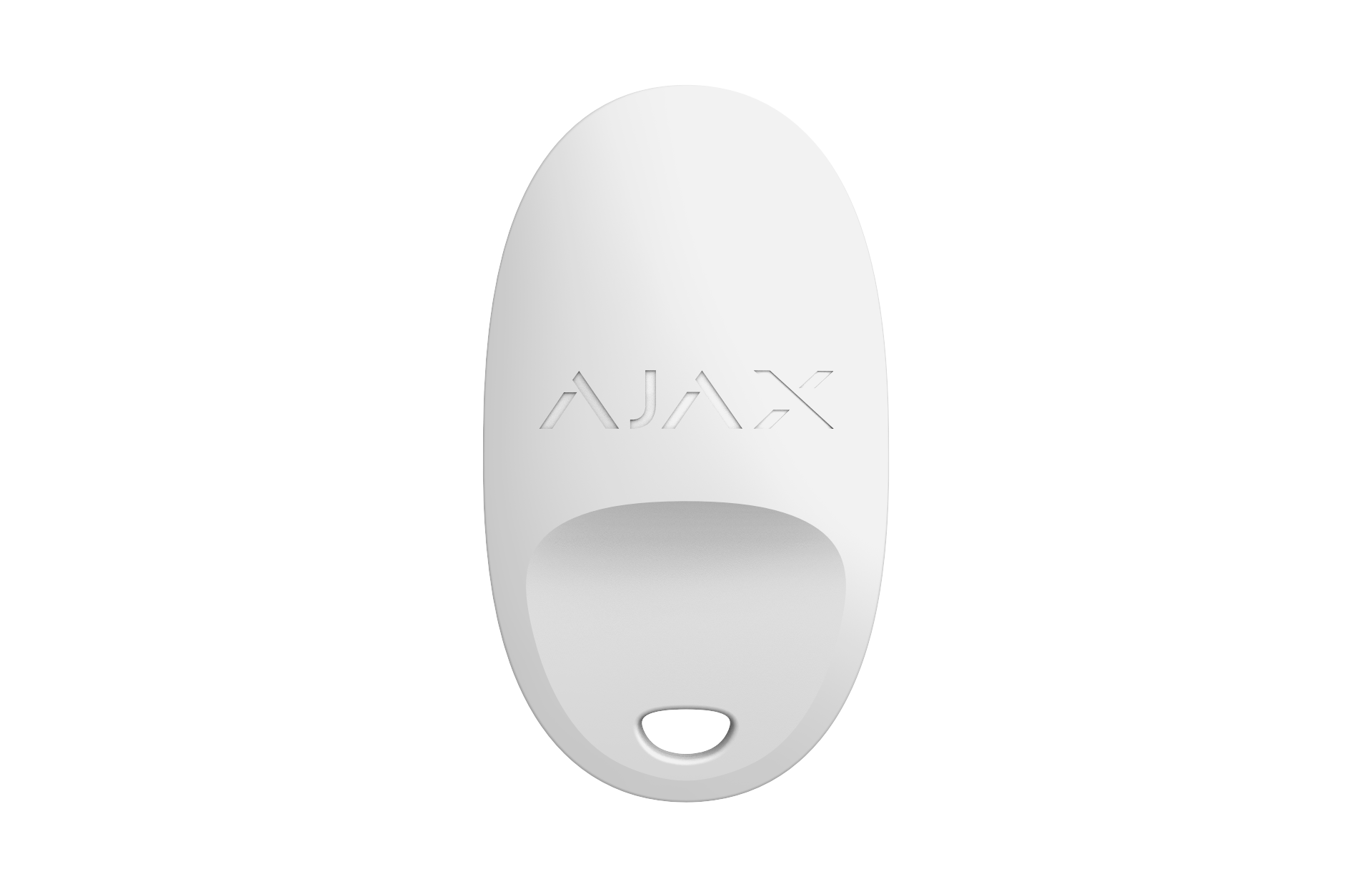

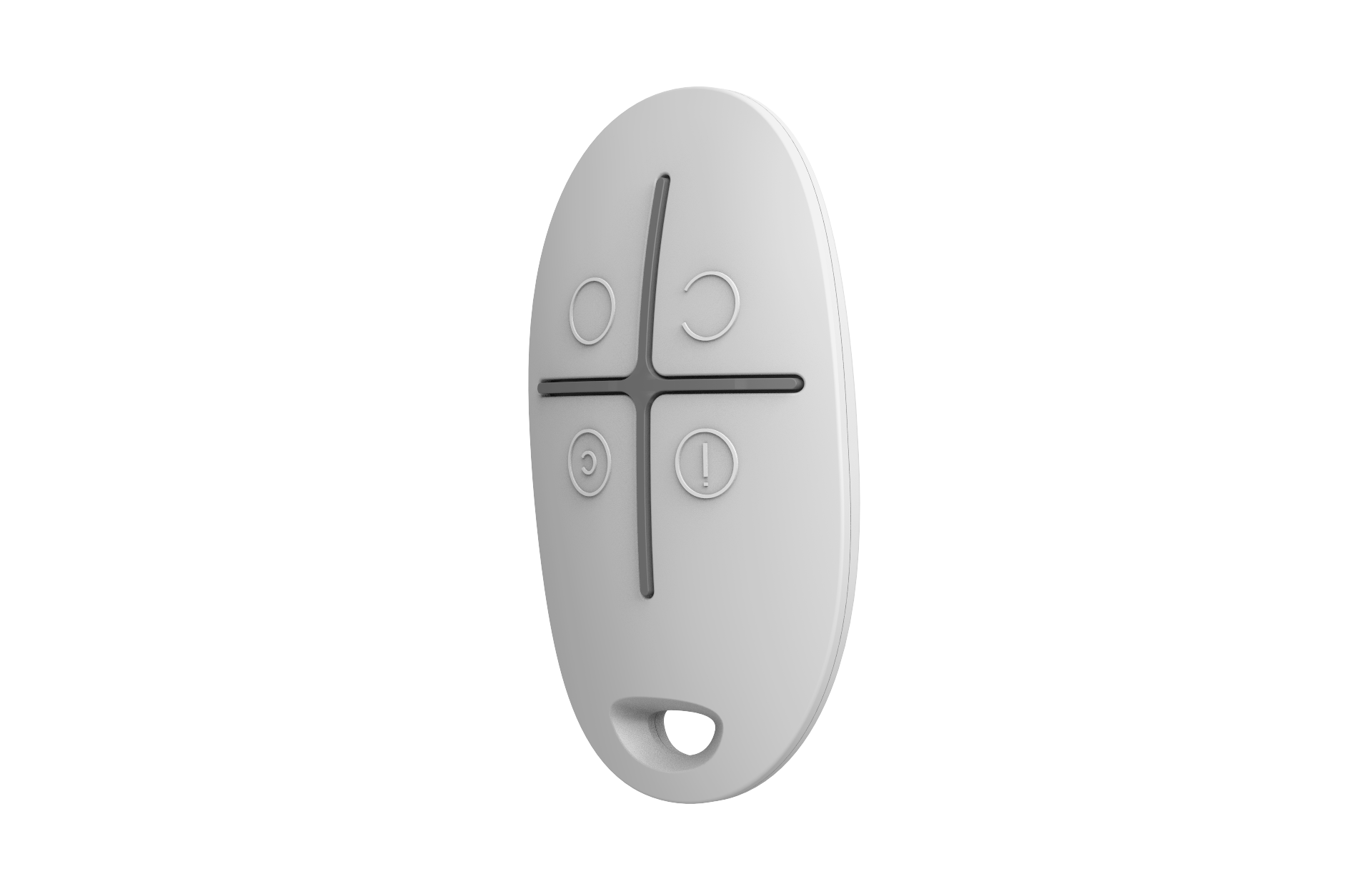

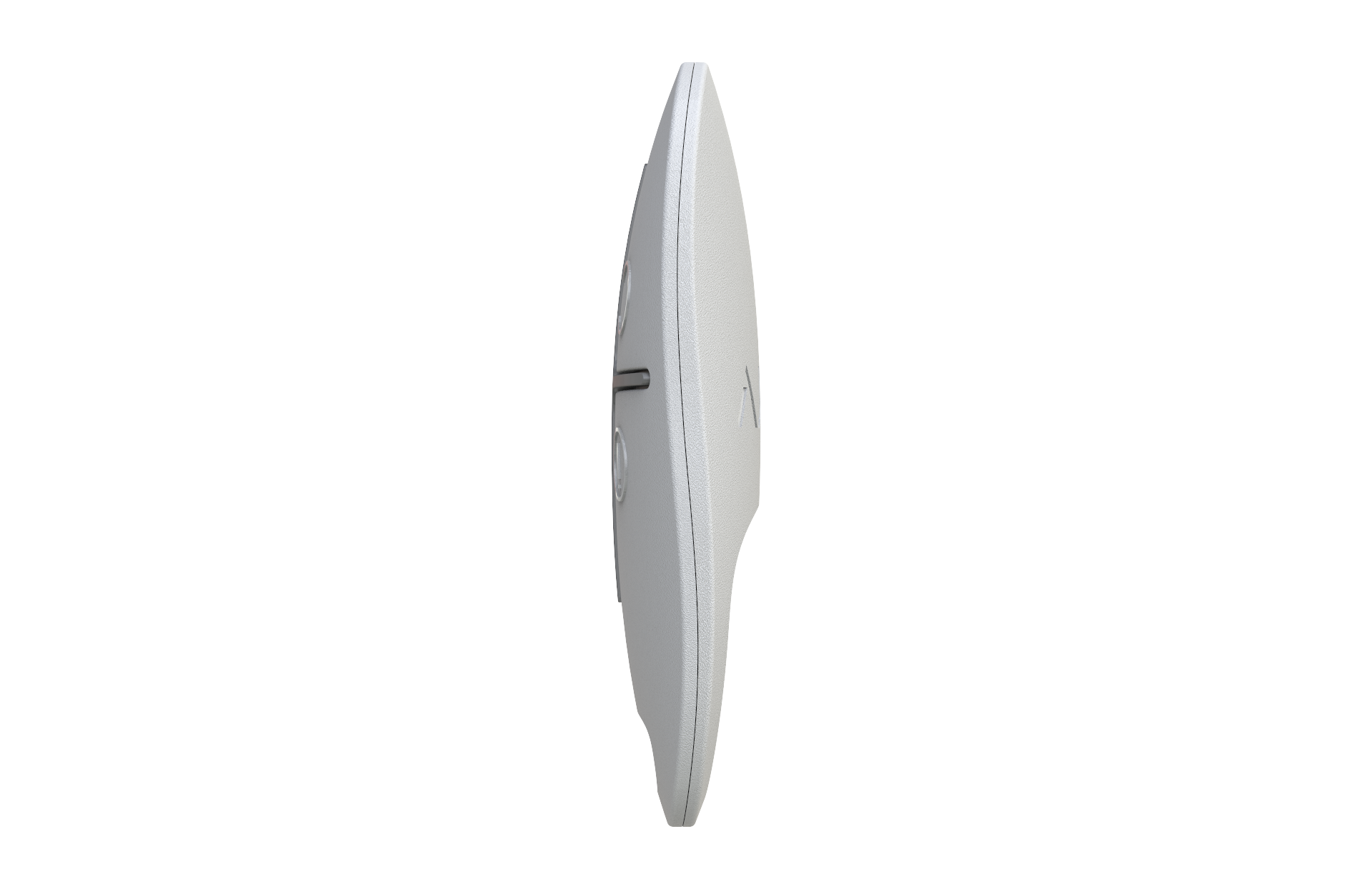

Ajax SpaceControl white

1006267
AX Fjärrkontroll (Vit)

A key fob for controlling security modes
Features a panic button for sending alarms to your inner circle and a security company in case of trouble

The device controls the security modes and sends an alarm signal to the Central Monitoring Station by pressing the key fob panic button
Authentication prevents forgery of the device and false alarm signals

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble
With one click, it can be connected to the hub in the mobile application

 Authentication to prevent forgery

 Jamming detection and communication channels encryption

 Two-way communication

Tech specs
Classification - Four-button key fob with command delivery indication

Compatibility
Operates with all Ajax hubs, and range extenders, ocBridge Plus, uartBridge

Number of buttons - 4

False alarm prevention
Yes, long press or double press (firmware version 5.54.1.0 or higher. Manufacture date from March 19, 2020)

Deactivation of the panic button - Available

Power supply
Battery: CR2032 battery, 3 V
Battery life
Up to 5 years

Jeweller radio technology
Communication range with central unit — up to 1,300 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s

Operating temperature range - From -25°С to +50°С

Permissible humidity - Up to 95%

Dimensions - 65 × 37 × 10 mm

Weight - 13 g

Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set
SpaceControl keyfob
CR2032 battery (pre-installed)
User's guide

Service life - 10 years

Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Manöverpaneler
Color Vit
