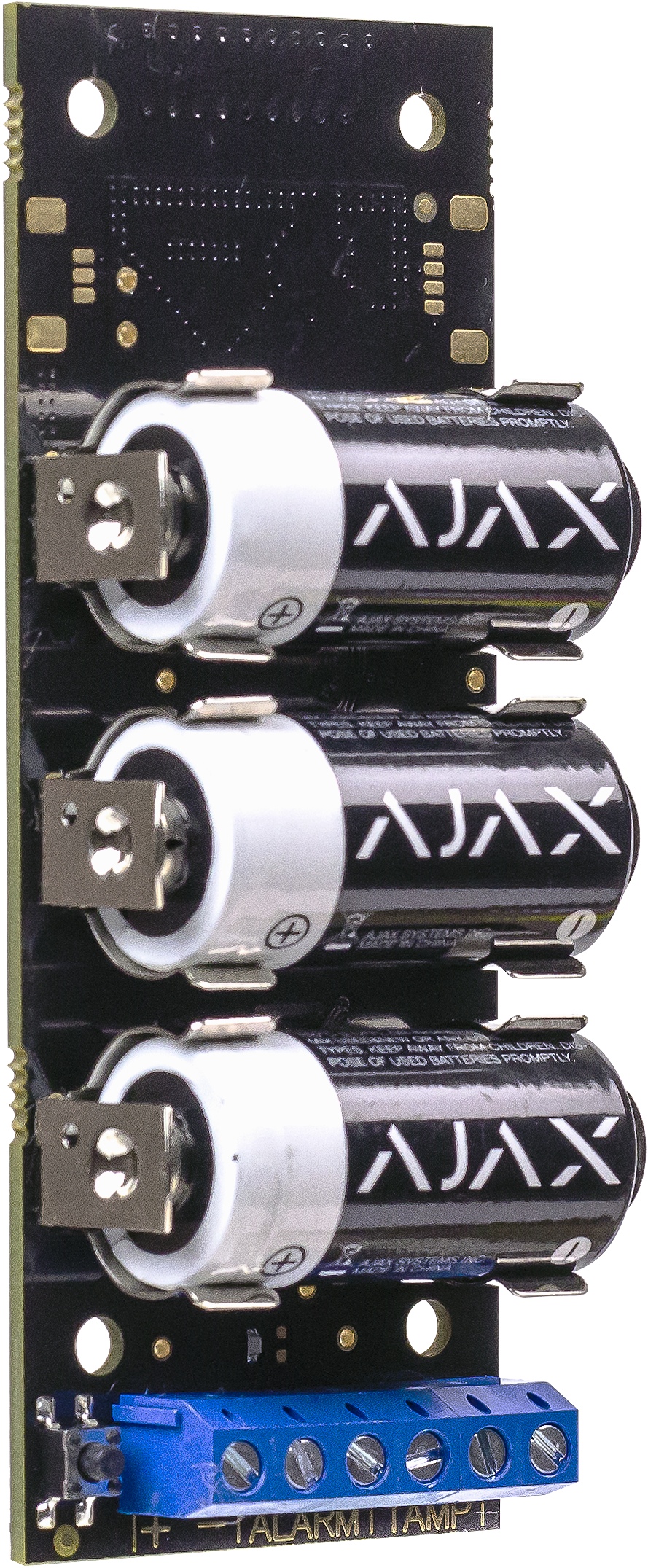

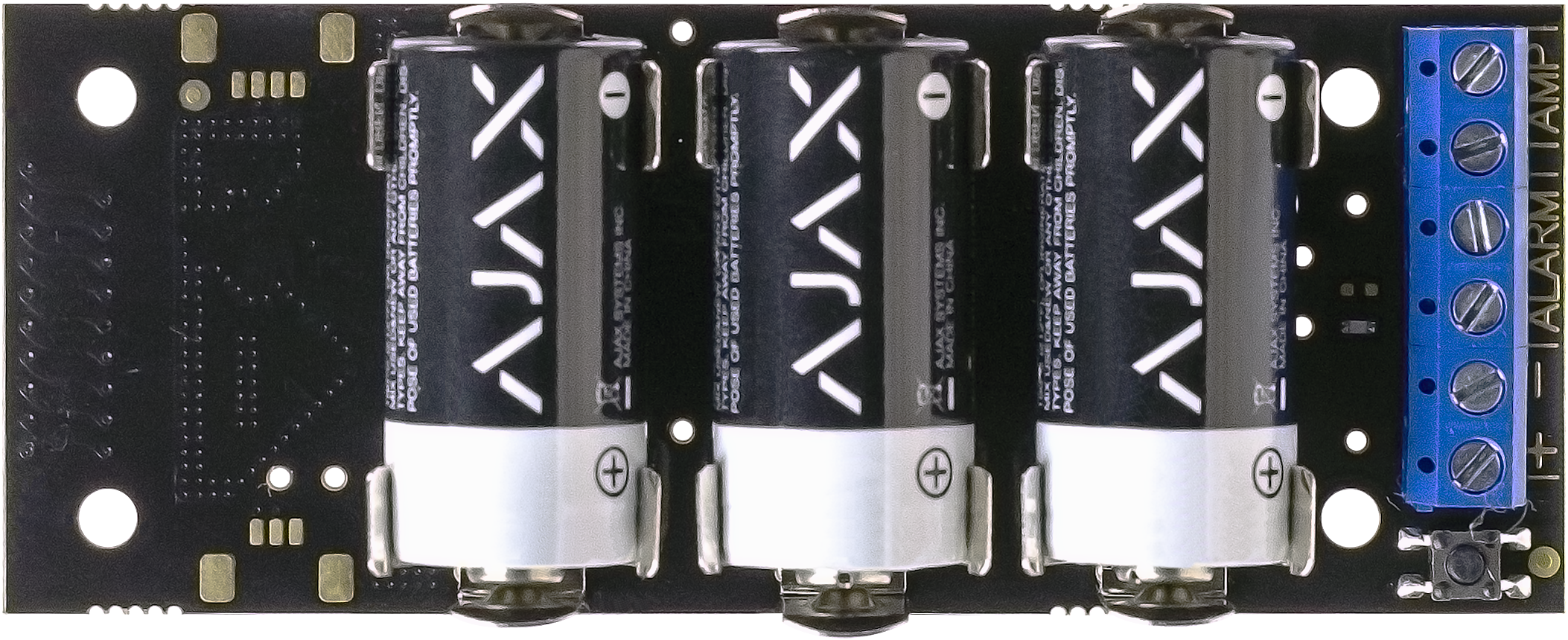

Ajax Transmitter

10010306
Ajax trådlös ingångsmodul PCB
The device receives the activation signal from the detector via wired input and sends an alarm to the hub
Transmitter integrates wired security equipment into Ajax: intrusion detectors, panic and medical buttons, fire and gas detectors
The type of a connected device is specified in the app
The device type defines the text of the notification received by the system users and the alarm code sent to CMS
Moreover, Transmitter is protected with an accelerometer that detects removal and raises the alarm if someone opens the lid of a connected detector

 Integrates wired detectors to Ajax
 Supplies connected devices power

Tech specs

Classification - Module for third-party detector integration

Device type - Wireless

Installation method - Indoors/outdoors

Compatibility - Operates with all Ajax hubs, and range extenders

Alarm input - 1

Tamper input - 1

Power supply current - Terminals +/−

Power supply output - 3.3 V

Battery charge indication - Available

Adjustable alarm types:
Intrusion
Fire
Medical help
Panic button
Gas

Alarm signal delivery time - 0.15 s

Power supply - Battery: Three CR123A batteries

Power supply voltage: 3V

Battery life - Up to 5 years

Jeweller radio technology
Communication range with central unit — up to 1,600 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s

Temperature sensor - Available

Operating temperature range - From -25°С to +50°С

Permissible humidity - Up to 75%

Anti-sabotage
Protection against fraud
Jamming detection
Accelerometer to detect removal
Remote setting and testing

Dimensions - 100 × 39 × 22 mm

Weight - 74 g

Warranty - Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Complete set
Transmitter
Three CR123A batteries (pre-installed)
Installation set
User's guide

Service life - 10 years
Category Alarm
Sub-category Ajax
Brand Ajax
Alarm Type Övriga enheter
Color N/A
