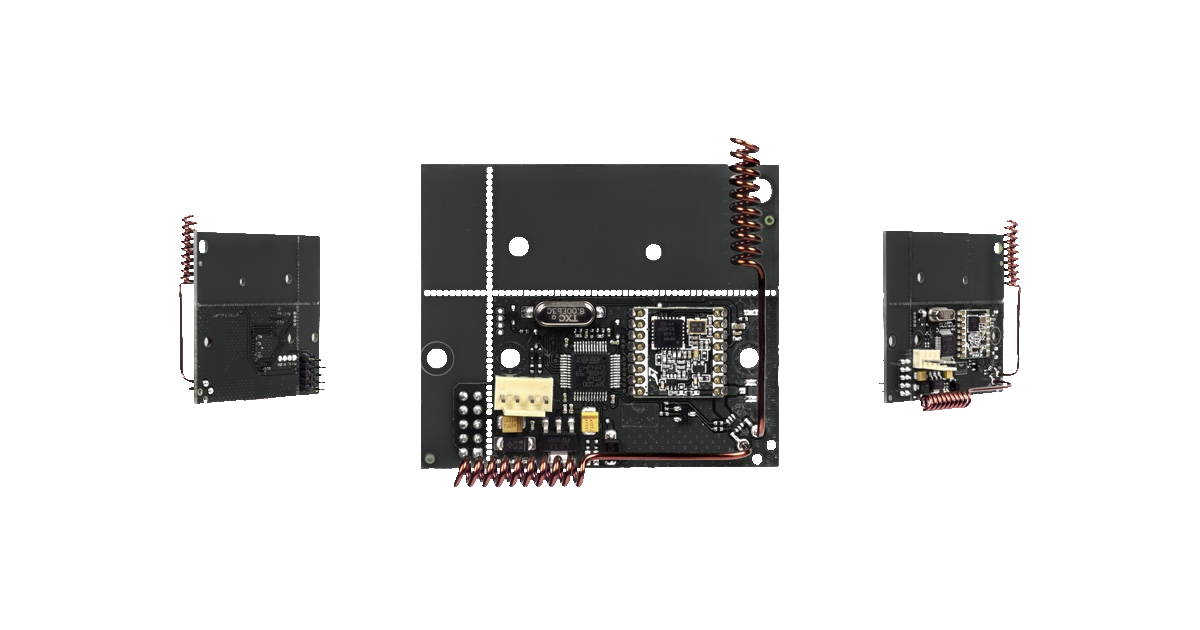

Ajax uartBridge

1005260
Ajax uart kort

The receiver module for connecting Ajax detectors to wireless security systems and smart home solutions
When the detector activates, the device sends the information to the central unit, which raises an alarm
The device is set via UART interface, which provides a wide range of possibilities for those who like to program their own ideas
The device is installed into the body of the wired central units and hubs of smart home systems

 Authentication to prevent forgery

 Jamming detection and communication channels encryption

 Two-way communication

Tech specs
Classification - Receiver of wireless detectors' signal

Device type - Wireless

Installation method - Indoors

Compatibility - Wired security systems and smart home systems

Maximum number of detectors - 85

Supported devices
MotionProtect
MotionProtect Plus
CombiProtect
DoorProtect
FireProtect
FireProtect Plus
LeaksProtect
SpaceControl
GlassProtect

Alarm signal delivery time - 0.15 s

Power supply voltage - 5 V DC

Jeweller radio technology
Communication range with detectors — up to 2,000 m in an open space
Two-way communication with detectors
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s

Operating temperature range - From –10°С to +40°С

Permissible humidity - Up to 90%

Anti-sabotage
Protection against fraud
Jamming detection
Interface
UART

Dimensions - 64 × 55 × 13 mm

Weight - 32 g

Warranty - Replacement and repair within 24 months of the date of sale

Complete set
uartBridge

Service life - 10 years
