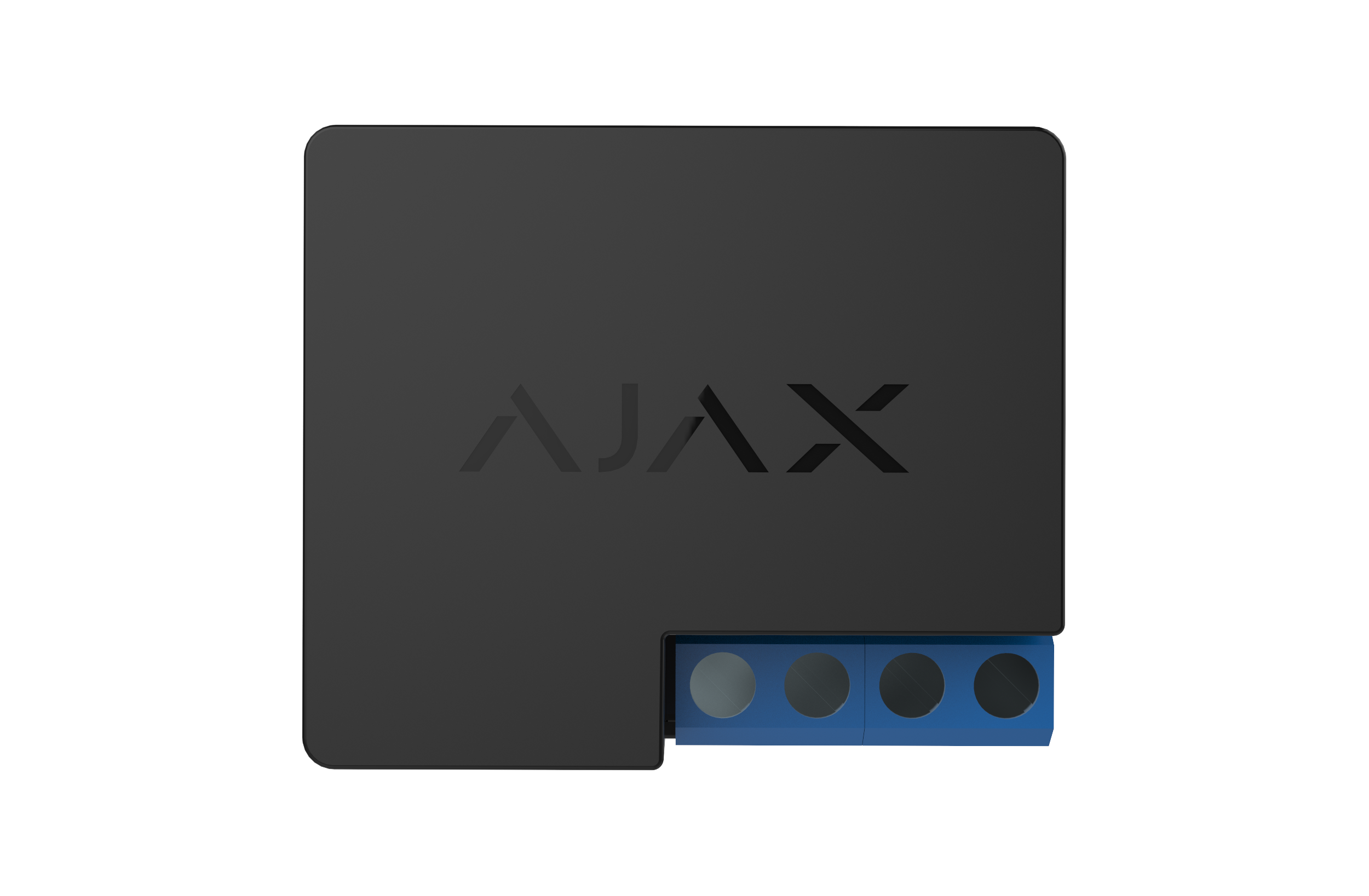

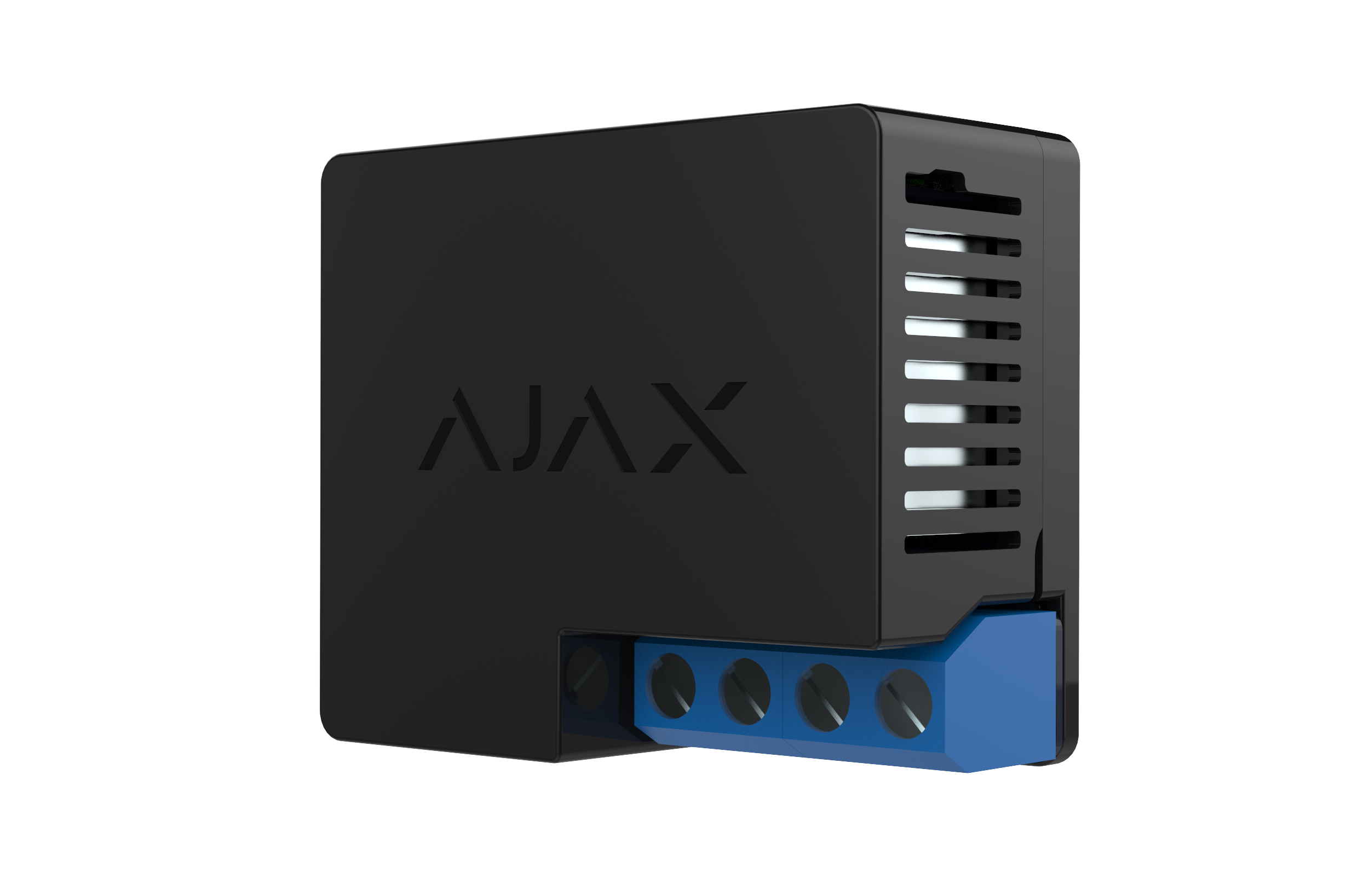

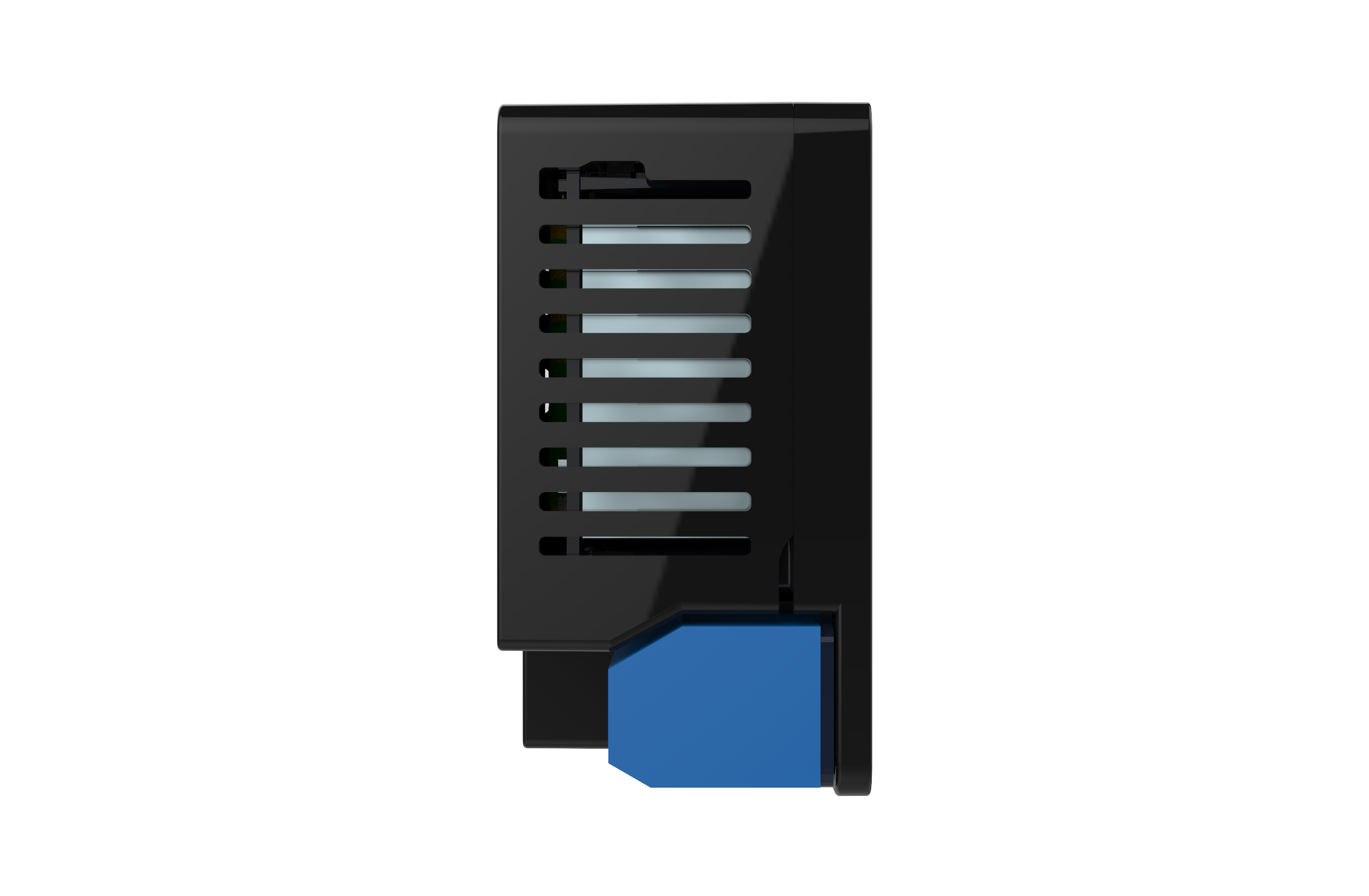

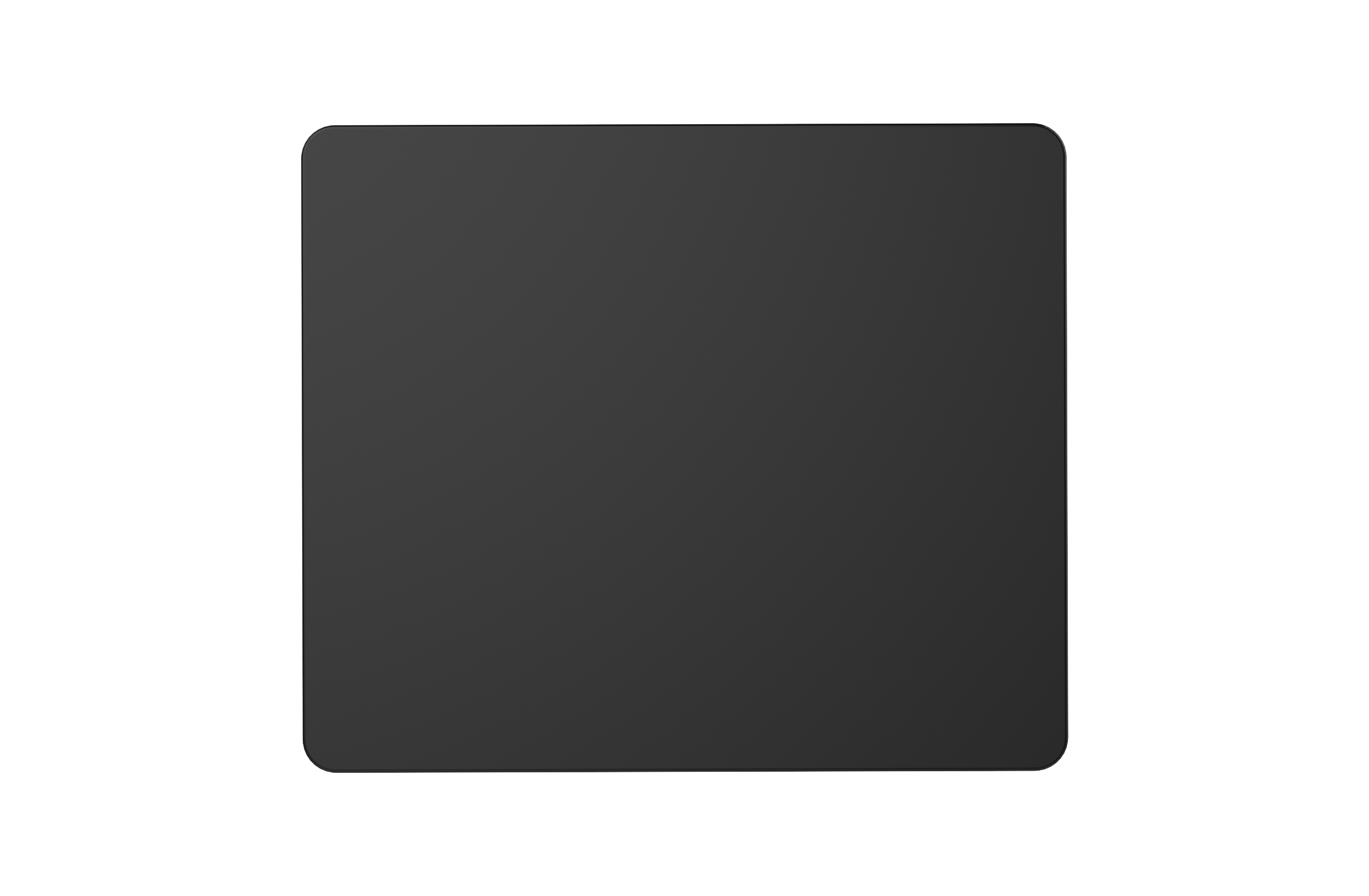

Ajax WallSwitch black

Power relay to control electrical supply remotely
The device connects directly to the 110 V/230 V source and closes/opens the circuit on command
The relay can handle loads of up to 3 kW, which is enough to connect a very power-hungry device
Thanks to WallSwitch, this feature of the device may become known — it displays power consumption in the Ajax app

Connecting WallSwitch to the hub takes less than a minute — it's enough to scan a QR code with the Ajax app
The miniature relay (39×33×18 mm) is easy to place in a recessed wall plate, the body of an electrical appliance, or an electrical panel
A flexible external antenna ensures stable communication

 Protects devices against overcurrent and voltage surges

 Operates in bistable or pulse modes

 Allows controlling electricity consumption

Tech specs
Classification - Radio channel relay unit

Device type - Remote-controlled

Installation method - Into wall plate

Compatibility
Operates with all Ajax hubs, and range extenders

Actuating element - Relay

Voltage protection
For 230 V mains: max — 264 V, min — 161 V
For 110 V mains: max — 126 V, min — 77 V

Relay service life - 200,000 switch-ons

Maximum load current - 13 A

Maximum current protection - Yes (13 A)

Maximum temperature protection - >65°C in the wall plate

Permissible power
Resistive load at 230 V — up to 3 kW
Resistive load at 110 V — up to 1.5 kW

Electric power meter function - Available

Energy consumption parameter check
Current, voltage, power consumption

Alarm signal delivery time - 0.15 s

Power supply
110−230 V±10% 50/60 Hz

Operation modes
Impulse (firmware version 5.54.1.0 or higher. Manufacture date from March 5, 2020)
Bistable
Contact state
Normally open
Normally closed

Adjustable pulse duration (firmware version 5.54.1.0 or higher) - 0.5–255 sec

Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector scanning period — 12 - 300 s

Operating temperature range - From 0°С to +64°С

Permissible humidity - Up to 75%

Anti-sabotage
Protection against fraud
Jamming detection

Protection class of body - IP20

Remote setting and testing - Available

Dimensions - 39 × 33 × 18 mm

Weight - 30 g

Warranty
Replacement and repair within 24 months of the date of sale

Complete set
WallSwitch
Installation set
User's guide

Service life - 10 years
