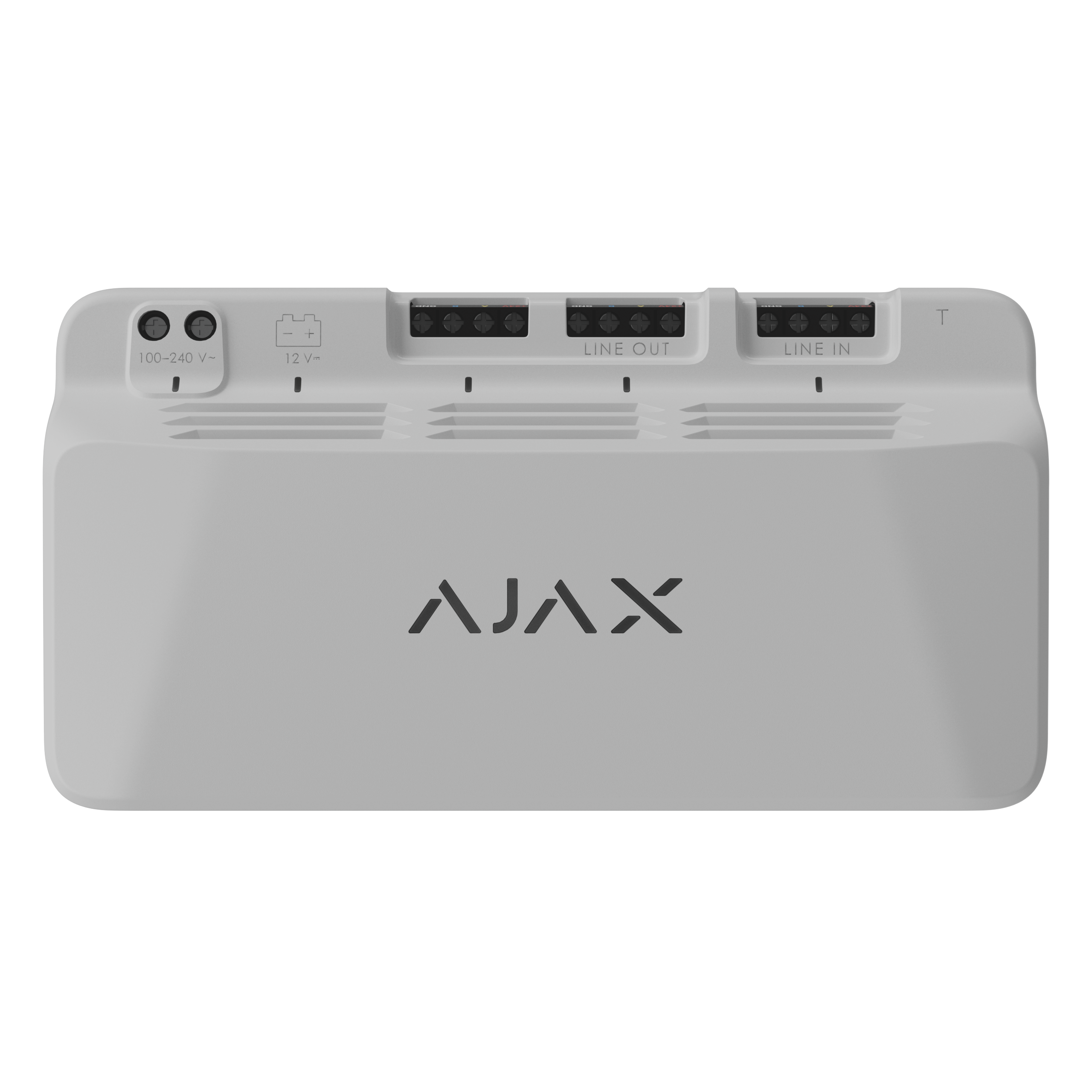

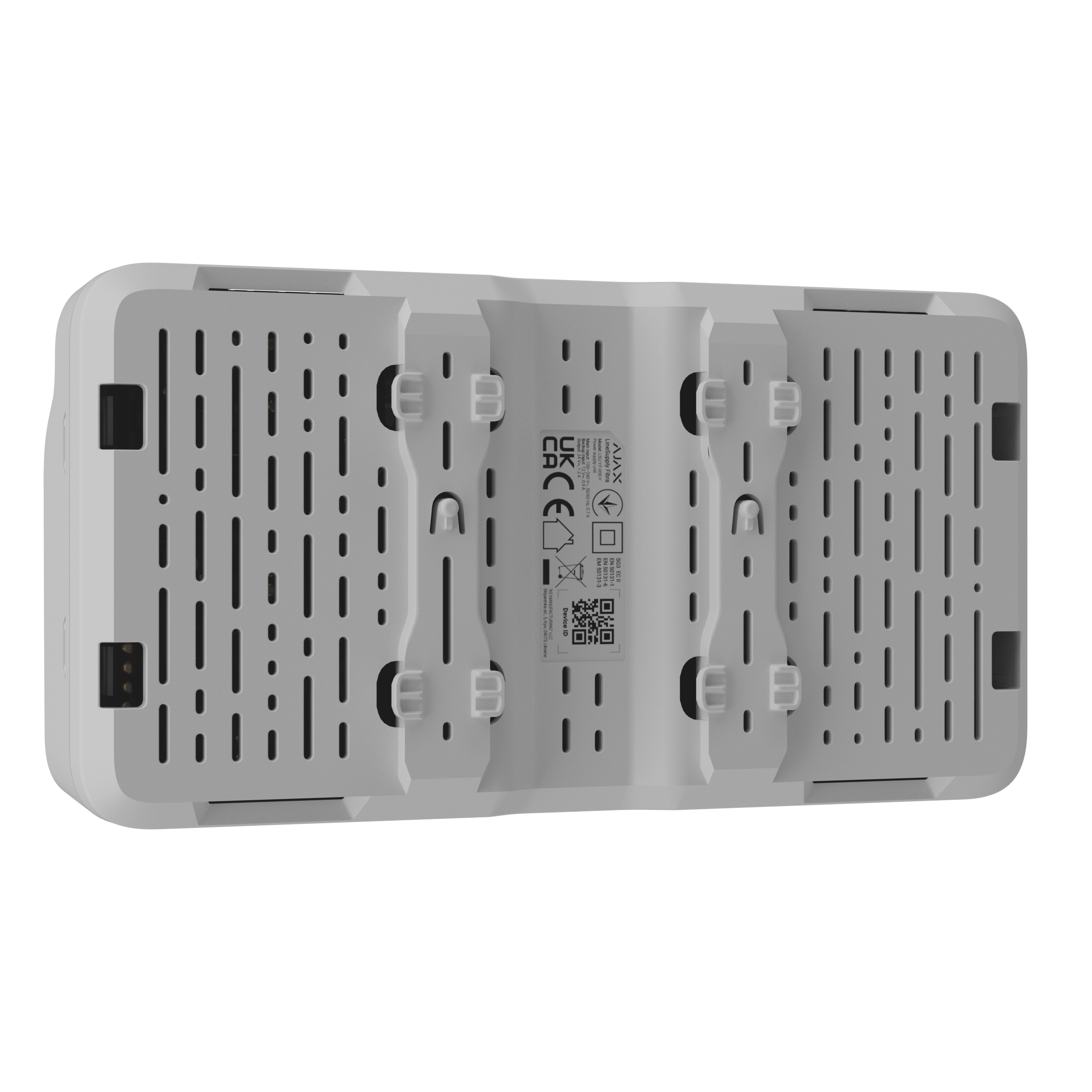

Fibra LineSupply (45W) white
10082131
LineSupply (45 W) Fibra
Module for additional power supply with 45 W power and one output Fibra line
Compatibility
Communication
Fibra communication technology
Proprietary wired communication technology combines the reliability of wires with the freedom of radio connection.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration in the Ajax apps.
Line connection
4-core cable
Connection
to any point of the Fibra line
LineSupply (45 W) can be installed after a hub, detector, keypad, siren, or another LineSupply. The module provides additional power to Fibra devices installed between the LineSupply (45 W) and the end of the line.
Wired connection range
- between the module and the hub — up to 2,000 m;
- between the module and the last Fibra device on the line — up to 2,000 m.
The maximum line length is relevant when using the U/UTP cat.5 twisted pair.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Number of input lines
1
LineSupply (45 W) can be connected after any Fibra device.
Number of output lines
1
Fibra devices with a total power consumption of up to 30 W can be connected to the output line.
Cable length
up to 2,000 m
For the output line between the module and the last Fibra device on the line when using U/UTP cat.5 twisted pair.
Galvanic isolation
Ensures that devices connected between the LineSupply (45 W) and the end of the line do not consume power from the hub.
Power supply
Main
100–240 V~, 50/60 Hz
Backup
12 V⎓ battery with a capacity from 7 to 18 Ah
Not included. When the main power is available, the backup battery is charged from the mains.
Power output
- of the output line — 30 W;
- to charge the backup battery — 15 W.
| Category | Alarm |
|---|---|
| Sub-category | Superior |
| Brand | Ajax Fibra (Only Certified) |
| Alarm Type | Tillbehör |
| Color | Vit |
