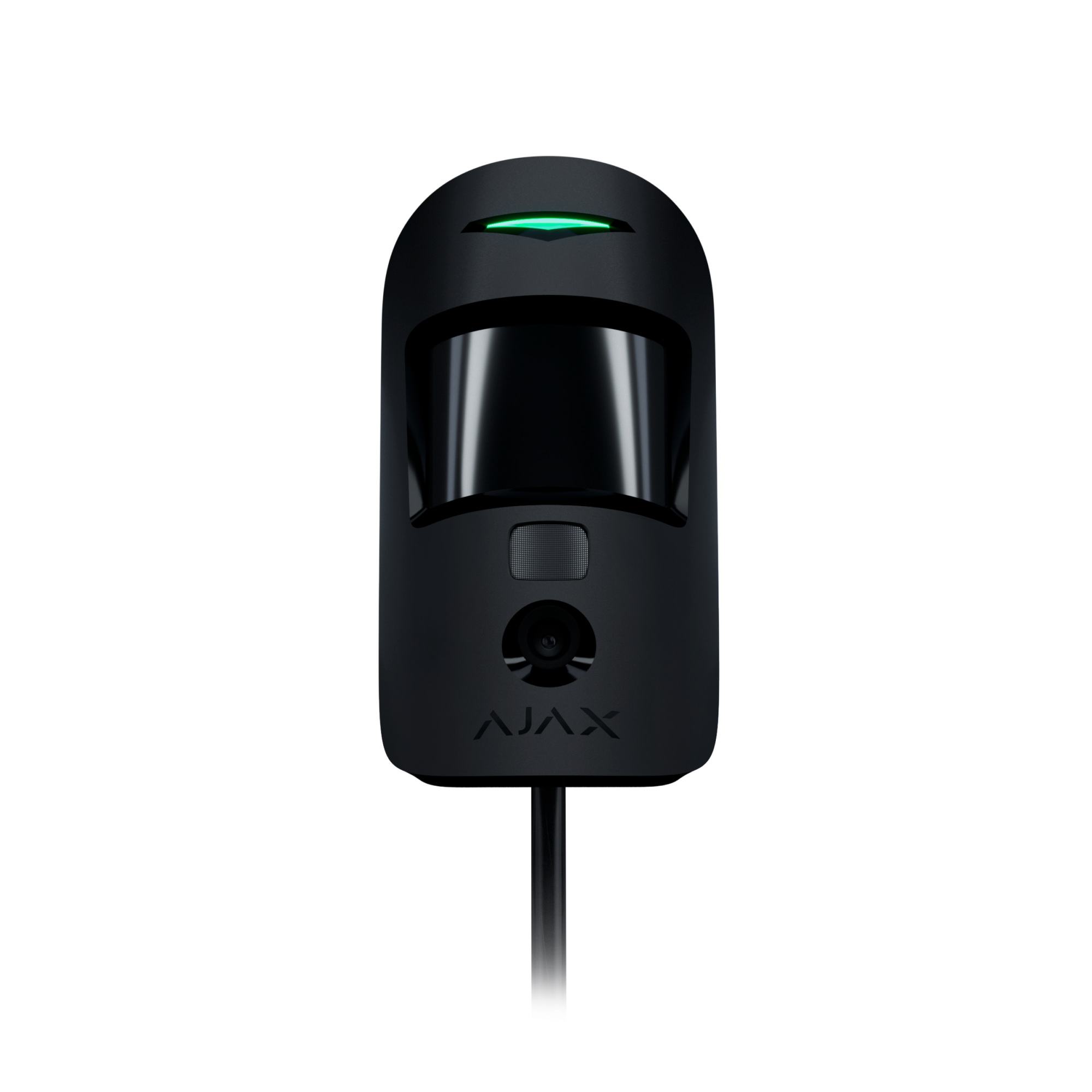

Fibra MotionCam black
10044402
MotionCam Fibra
Wired motion detector with photo verification of alarms
Wired motion detector with photo verification of alarms
This is the device of the Fibra product line. This product line is developed for projects. Only accredited Ajax Systems partners can sell, install, and administer Fibra products.
Sensitive element
1 PIR sensor
Motion detection distance
up to 12 meters
When installed at the height of 2.4 meters.
Motion detection angles
horizontal — 88.5°
vertical — 80°
vertical — 80°
Motion detection speed
from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room.
Sensitivity
3 levels
Adjusted by a PRO or user with admin rights in the Ajax app.
Pet immunity
up to 20 kg
up to 50 cm in height
up to 50 cm in height
False alarm prevention
SmartDetect
Software algorithm.Temperature compensation
Effective motion detection within −10°C to +40°C range.
Photo by alarm
The built-in camera is activated if the detector is armed and motion is detected.
Adjustable photo resolution
640 × 480 px
320 × 240 px (default)
160 × 120 px
320 × 240 px (default)
160 × 120 px
Adjusted by a PRO or user with admin rights in the Ajax app.
IR backlight
For night photography and low light conditions.
Series of pictures
from 1 to 5 snapshots
Adjusted by a PRO or user with admin rights in an Ajax app.
Photo delivery
up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
Photo delivery time depends on the image resolution selected in the device settings.
Category | Alarm |
---|---|
Sub-category | Ajax Fibra (kräver certifiering) |
Brand | Ajax Fibra (Only Certified) |
Alarm Type | Rörelsedetektorer |
Color | Svart |
