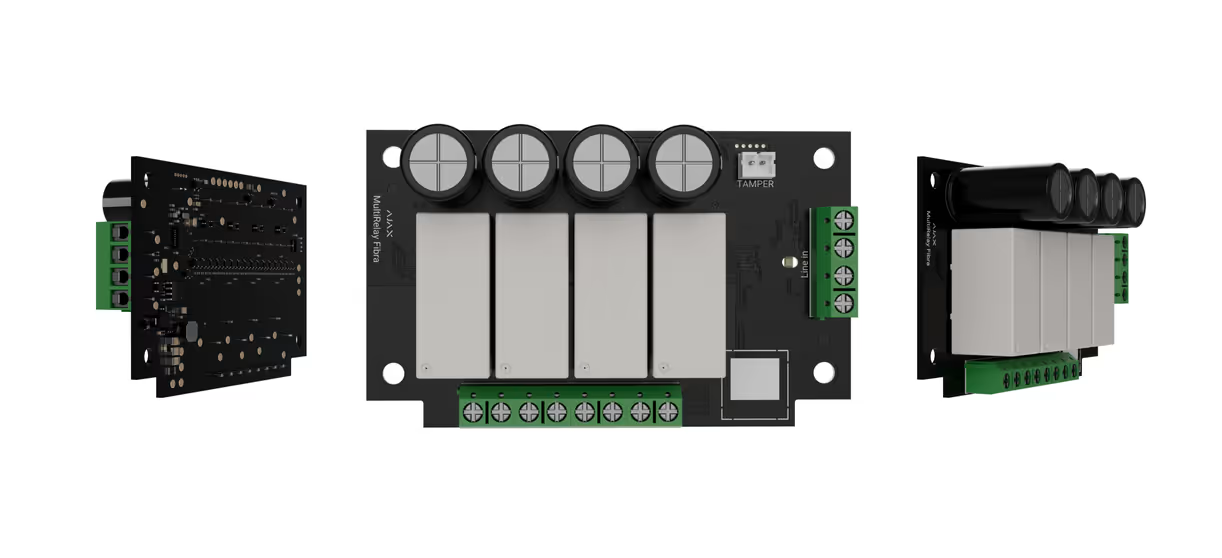

Fibra MultiRelay
10064932
MultiRelay Fibra
Four-channel relay with remote control
Compatibility
Communication
Fibra communication technology
Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Instant notifications.
- Remote configuration in Ajax apps.
Line connection
4-core cable
Connection
to any point of the Fibra line
MultiRelay can be installed behind the hub, detector, keypad, or siren.
Fibra line length
up to 2,000 meters
When using the U/UTP cat.5 twisted pair cable.
Encrypted communication
Lines connection
Number of input lines
1MultiRelay can be installed behind any Fibra device.
1
MultiRelay can be installed behind any Fibra device.
Number of relays
4Electrical appliances are connected to four relay outputs with dry contact.
4
Electrical appliances are connected to four relay outputs with dry contact.
Cable length
up to 2,000 metersWhen using the U/UTP cat.5 twisted pair cable.
up to 2,000 meters
When using the U/UTP cat.5 twisted pair cable.
Maximum current
up to 5 A at 30 V⎓
up to 10 A at 230 V~Maximum resistive load for each relay.
up to 5 A at 30 V⎓
up to 10 A at 230 V~
up to 10 A at 230 V~
Maximum resistive load for each relay.
Key features
Temperature protection
When one of the relays exceeds the permissible temperature, all closed contacts automatically open. The user receives an overheating notification.
When one of the relays exceeds the permissible temperature, all closed contacts automatically open. The user receives an overheating notification.
Automation scenarios
Adjusted in Ajax apps separately for each relay.
Adjusted in Ajax apps separately for each relay.
Relay modes
bistable
pulseAdjusted in Ajax apps separately for each relay.
bistable
pulse
pulse
Adjusted in Ajax apps separately for each relay.
Operating time
from 10 seconds to 2 hoursAdjusted for pulse mode in Ajax apps separately for each relay.
from 10 seconds to 2 hours
Adjusted for pulse mode in Ajax apps separately for each relay.
State stability
after power outageIf the function is enabled, the current state of the relay contacts remains the same after a power outage.
after power outage
If the function is enabled, the current state of the relay contacts remains the same after a power outage.
Anti-sabotage protection
Tamper alarm
MultiRelay has a connector to fasten the tamper board to the module. The tamper board is in Case that is sold separately.
MultiRelay has a connector to fasten the tamper board to the module. The tamper board is in Case that is sold separately.
Protection against spoofing
device authentication
device authentication
Connection loss detection
in 36 secondsBetween the hub and MultiRelay. It can be changed in hub settings.
in 36 seconds
Between the hub and MultiRelay. It can be changed in hub settings.
Power supply
Fibra line power supply
8.5−30 V⎓, up to 185 mW
8.5−30 V⎓, up to 185 mW
Board
Dimensions
90 × 55 × 30 mm
90 × 55 × 30 mm
Weight
84 g
84 g
Operating temperature range
from −10°C to +40°C
from −10°C to +40°C
Operating humidity
up to 75%The hub powers the module. MultiRelay does not supply additional power to devices.
up to 75%
The hub powers the module. MultiRelay does not supply additional power to devices.
