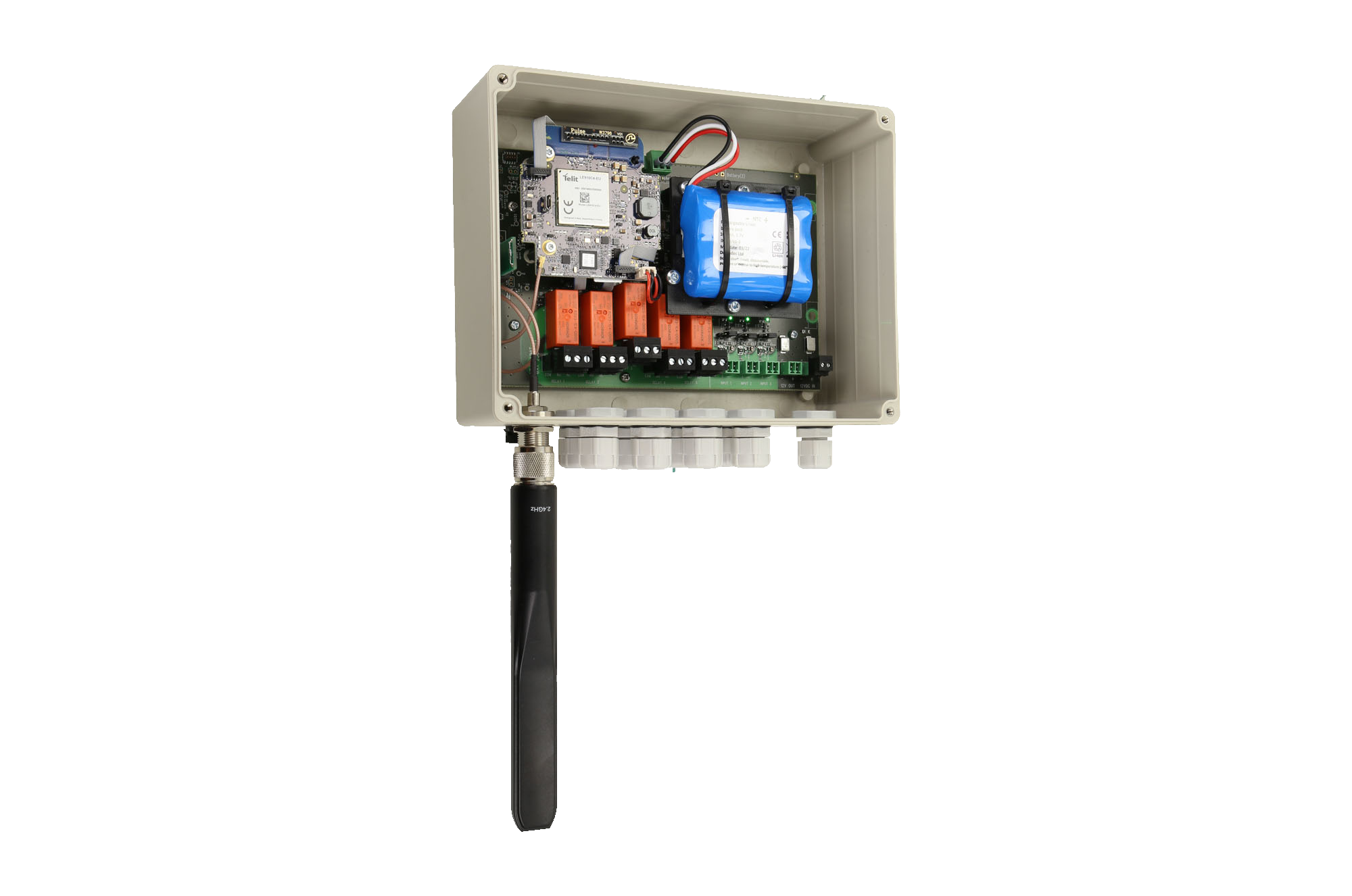

DEF Bridge I/O 4G with Outputs and PS Cable
3372122
Bridge IO is a multi-frequency radio transceiver that connects Detectors with the Reconeyez cloud
portal. BridgeIOv2 4G combines two communication modules: short-range radio, long-range radio.
Bridge IO is powered externally by a 12V DC source and also includes an internal backup battery. Bridge
IO has the extra benefit of having three input contacts that can be configured for wet or dry usage and
five relay outputs that can be configured to operate in response to defined events
Operating temperature range |
-40°C to +60°C |
IP rating |
IP66 |
Weight |
1.1kg/2.42lbs |
Dimensions (WxHxD) |
220 x 165 (185 inc cable glands) x 90mm |
Category | Alarm |
---|---|
Sub-category | Bridge |
Brand | Reconeyez |
